Сцепление для мотоциклов Suzuki (Америка) GSF1250SA Bandit (2009)

Москва и регионы России

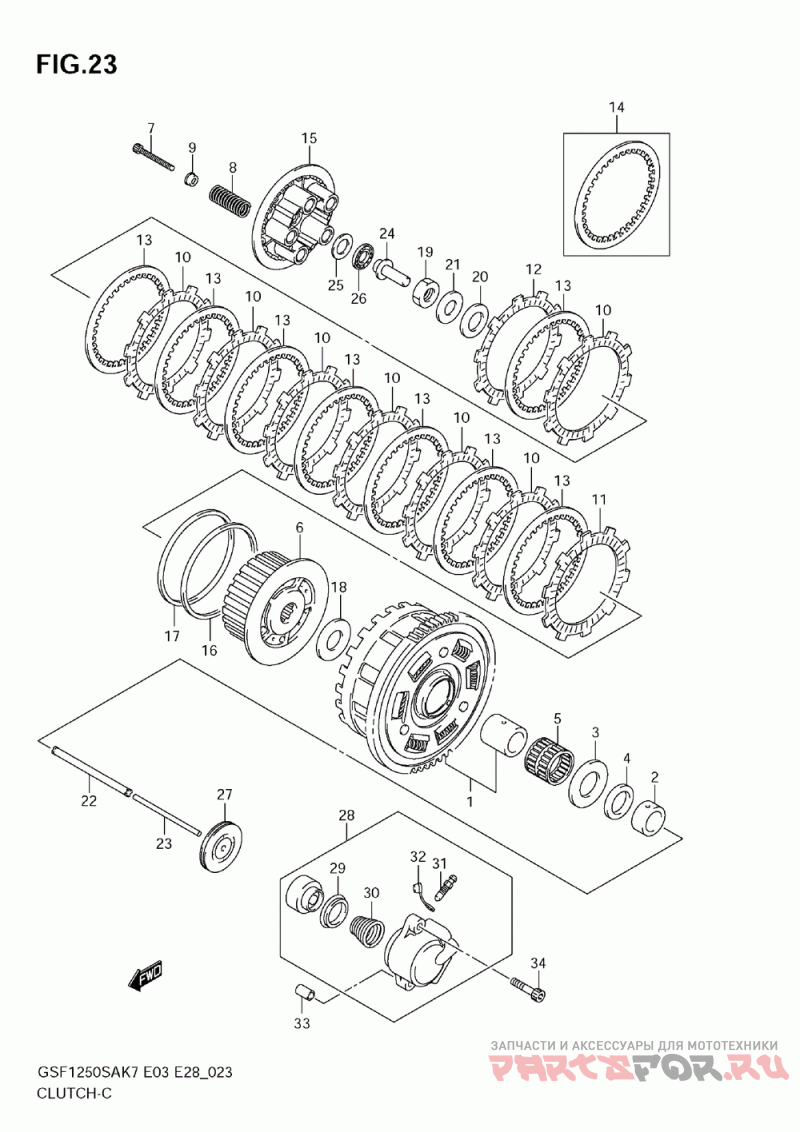

Сцепление

Suzuki (Америка) GSF1250SA Bandit

Сцепление

#

oem код

название

цена

1

Gear Assy, Prima (nt:72)

Gear Assy, Prima (nt:72)

2

Spacer, Oil Pump Drive

Spacer, Oil Pump Drive

3

Washer (25x54x2.4)

Washer (25x54x2.4)

4

Washer, 25x30x3

Washer, 25x30x3

5

Bearing (35x40x26.8)

Bearing (35x40x26.8)

6

Hub, Clutch Slee

Hub, Clutch Slee

7

Bolt, Clutch Spr

Bolt, Clutch Spr

8

Пружина

Пружина

9

Washer, Clutch Spring

Washer, Clutch Spring

10

Plate, Clutch Dr

Plate, Clutch Dr

11

Plate, Clutch Drive No.3

Plate, Clutch Drive No.3

12

Plate, Clutch Drive, No.2

Plate, Clutch Drive, No.2

13

Plate, Clutch Driven No.1 (t:2.0)

Plate, Clutch Driven No.1 (t:2.0)

15

Disc, Clutch Pre

Disc, Clutch Pre

16

Seat, Wave Washer

Seat, Wave Washer

17

Washer, Clutch Plate Wave

Washer, Clutch Plate Wave

18

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

19

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

20

Washer, Clutch Sleeve Nut (25x38x1)

Washer, Clutch Sleeve Nut (25x38x1)

21

Washer (24.2x35x2) (24.2x35x2)

Washer (24.2x35x2) (24.2x35x2)

22

Rod, Clutch Push (l:169)

Rod, Clutch Push (l:169)

23

Rod, Clutch Push (l:138)

Rod, Clutch Push (l:138)

24

Piece, Clutch Push

Piece, Clutch Push

25

Washer (15.5x28x1) (15.5x28x1)

Washer (15.5x28x1) (15.5x28x1)

26

Bearing (15x28x2) (15x28x2)

Bearing (15x28x2) (15x28x2)

27

Seal, Oil, 6x34x5 (6x34x5.5)

Seal, Oil, 6x34x5 (6x34x5.5)

28

Cylinder, Clutch

Cylinder, Clutch

29

.cup

.cup

30

Пружина

Пружина

31

Штуцер перепускной

Штуцер перепускной

32

.cap, Bleeder

.cap, Bleeder

33

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl

34

Bolt (6x30)

Bolt (6x30)

14

Plate, Clutch Driven No.2 (opt,t:2.3)

Plate, Clutch Driven No.2 (opt,t:2.3)

1

Gear Assy, Prima (nt:72)

Gear Assy, Prima (nt:72)
