Under cowling (gs500fk8) для мотоциклов Suzuki (Америка) GS500F (2009)

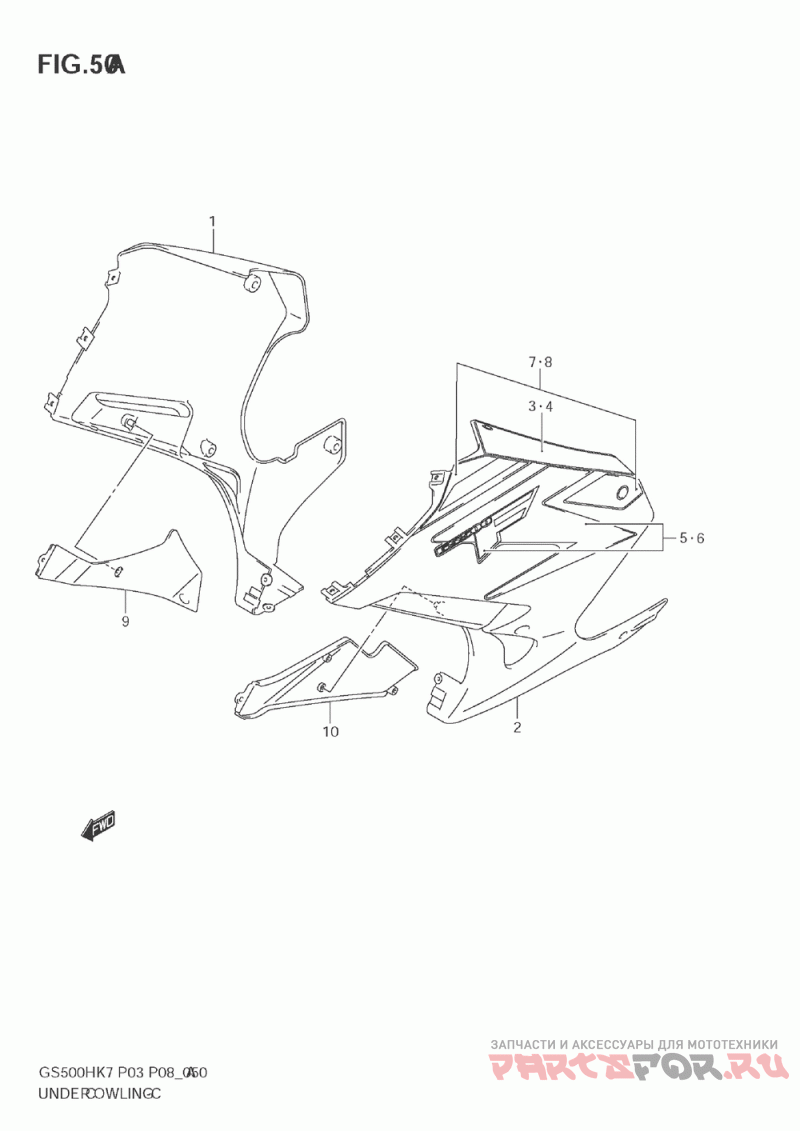

Under cowling (gs500fk8)

Suzuki (Америка) GS500F

oem код

название

цена

1-1

94471C0BE10JYD8

Cowl, Under Rh (silver) (for Epv)

1-2

94471C0BE10JYBD

Cowl, Under Rh (white) (for Cwh)

2-1

94481C0BE10JYD8

Cowl, Under Lh (silver) (for Epv)

2-2

94481C0BE10JYBD

Cowl, Under Lh (white) (for Cwh)

68185-01DA0-291

Tape, Upper Rh (black)

68195-01DA0-291

Tape, Upper Lh (black)

5-1

68135-01DK0-BVB

Tape, Frame Cove (for Epv)

6-1

68145-01DK0-BVB

Tape, Frame Cove (for Epv)

7-1

68180-01DF0-FKR

Tape Rh (for Epv)

7-2

68180-01DF0-FKP

Tape Rh (for Cwh)

7-3

68190-01DF0-FKR

Tape Set, Lh No. (for Epv)

7-4

68190-01DF0-FKP

Tape Set, Lh No. (for Cwh)

94461-01D00-291

Cowl, Inner Rh

94462-01D00-291

Cowl, Inner Lh

94472-01D00

Shield, Under Cowl Heat, Rh (drawing Not Shown)

94482-01D00

Shield, Under Cowl Heat, Lh (drawing Not Shown)

94473-01D00

Shield, Under Heat, Rh (drawing Not Shown)

94483-01D00

Shield, Undder Heat, Lh (drawing Not Shown Refer To Fig 51 (g-10) For Under Installation Parts )

94461-01D00-NE2

Cowling, Under
