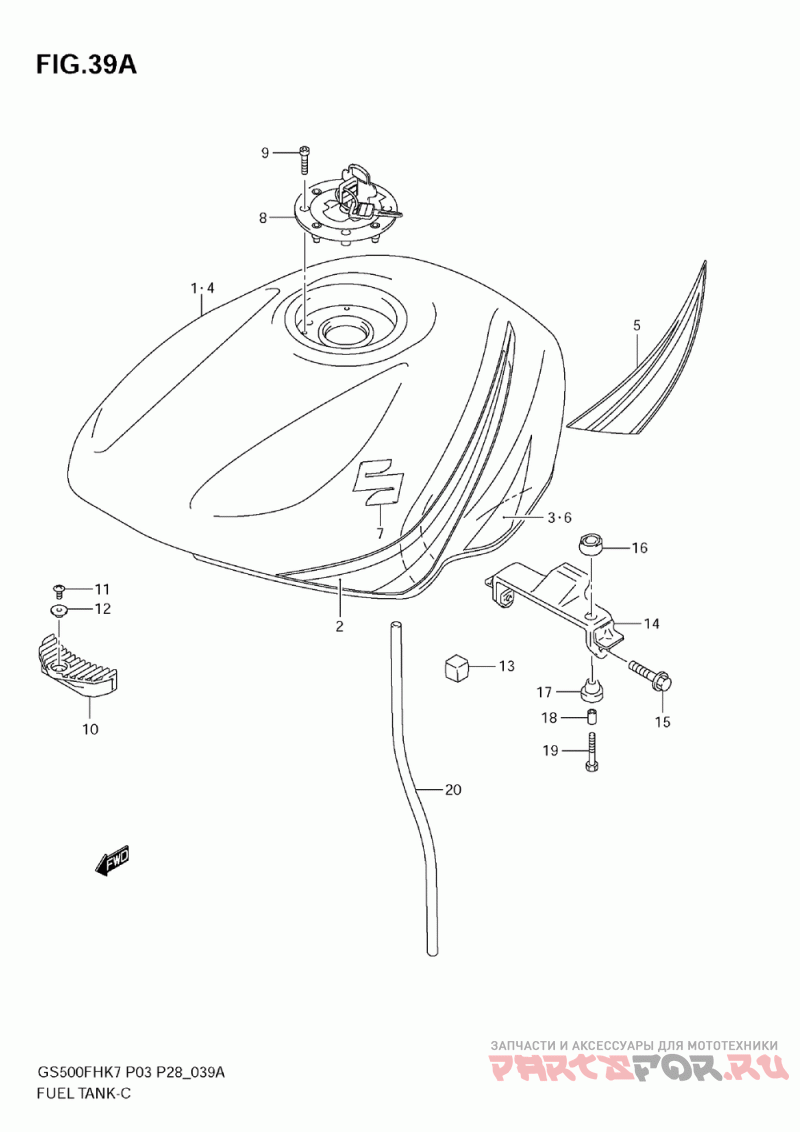

Топливный бак (model k8) для мотоциклов Suzuki (Америка) GS500F (2009)

Топливный бак (model k8)

Suzuki (Америка) GS500F

oem код

название

цена

1-1

49100-01D90-YHG

Tank Assy, Fuel (gray) (gs500h E28,e95 For Bpk )

1-2

49100-01D90-YKY

Tank Assy, Fuel (blue) (gs500h E28,e95 For Cwh )

2-1

68110-01DE0-BVB

.tape Set, Upper (for Yhg)

2-2

68110-01DE0-DZD

.tape Set, Upper (for Yky)

3-1

68110-01DF0-BPK

.tape Set, Upper (for Yhg)

3-2

68110-01DF0-CWH

.tape Set, Upper (for Yky)

4-1

49100-01DC0-YAY

Tank Assy, Fuel (gs500f E3, E28, E95 For Epv )

4-2

49100-01DC0-YKY

Tank Assy, Fuel (gs500f E3, E28, E95 For Cwh )

4-3

49100-01DD0-YAY

Tank Assy, Fuel (gs500f E33, For Epv)

4-4

49100-01DD0-YKY

Tank Assy, Fuel (gs500f E33, For Cwh)

5-1

68110-01DG0-FKN

Tape Set, Fuel T (for Yay)

5-2

68110-01DG0-FKM

Tape Set, Fuel T (for Yky)

6-1

68110-01DF0-EPV

Tape Set, Fuel T (for Yay)

68111-18G20

Эмблема

8-1

44201-33820

Cap Set, Fuel Tank (e3,e28,e95)

8-2

44200-33890

Cap Set, Fuel Tank (e33)

Болт

Подушка, передняя

Шайба

Cushion, Side

Bracket, Rear

Болт

Cushion, Rear Upper

Cushion, Rear Lower

Проставка

Болт

Hose, Drain ( Refer To Fig. 39b (f- 7) For Model K9 )

44423-01D00

Hose, Water Drai ( Refer To Fig. 39b (f- 7) For Model K9 )

6-2

68110-01DF0-CWH

Tape Set, Fuel T (for Yky)
