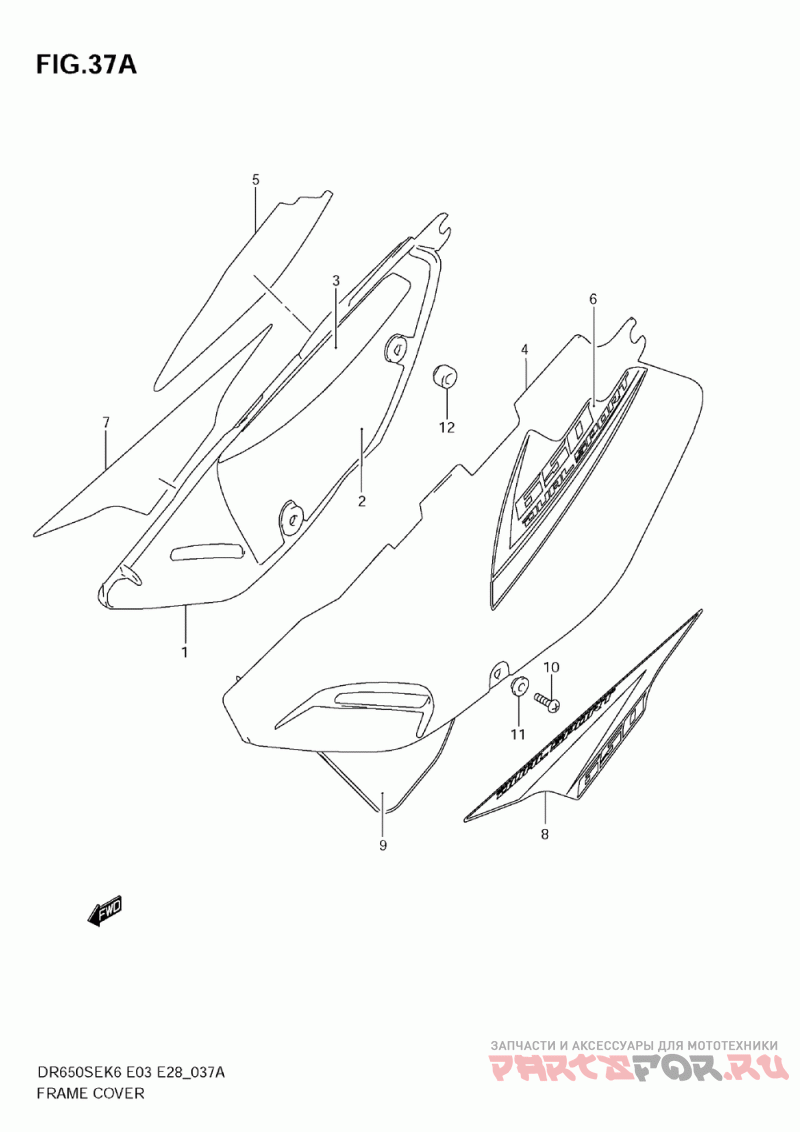

Frame cover (model k8/k9) для мотоциклов Suzuki (Америка) DR650SE (2009)

Frame cover (model k8/k9)

Suzuki (Америка) DR650SE

oem код

название

цена

1-1

47111-32E10-30H

Cover, Frame Rh (white) (model K8/k9)

1-2

47111-32E10-019

Cover, Frame, R (model K9)

47166-32E00

Shield, Cover Lower Rh

47167-32E00

Shield, Cover Upper Rh

4-1

47211-32E10-30H

Cover, Frame Lh (white) (model K8/k9)

4-2

47211-32E10-019

Cover, Frame, L (model K9)

5-1

68135-32E40-EVH

Tape, Frame Cove (model K8 For 019)

5-2

68135-32E40-EVM

Tape, Frame Cove (model K8 For Yky)

6-1

68145-32E40-EVH

Tape, Frame Cove (model K8 For 019)

6-2

68145-32E40-EVM

Tape, Frame Cove (model K8 For Yky)

7-1

68135-32E50-GJD

Tape, Frame Cove (model K9 For 019)

7-2

68135-32E50-GJE

Tape, Frame Cove (model K9 For 30h)

8-1

68145-32E50-GJD

Tape, Frame Cove (model K9 For 019)

8-2

68145-32E50-GJE

Tape, Frame Cove (model K9 For 30h)

68146-32E00

Tape, No.2, Lh

02142-0616A

Винт

09169-06041

Washer, Guide Rr Brake Hose

09321-10019

.cushion
