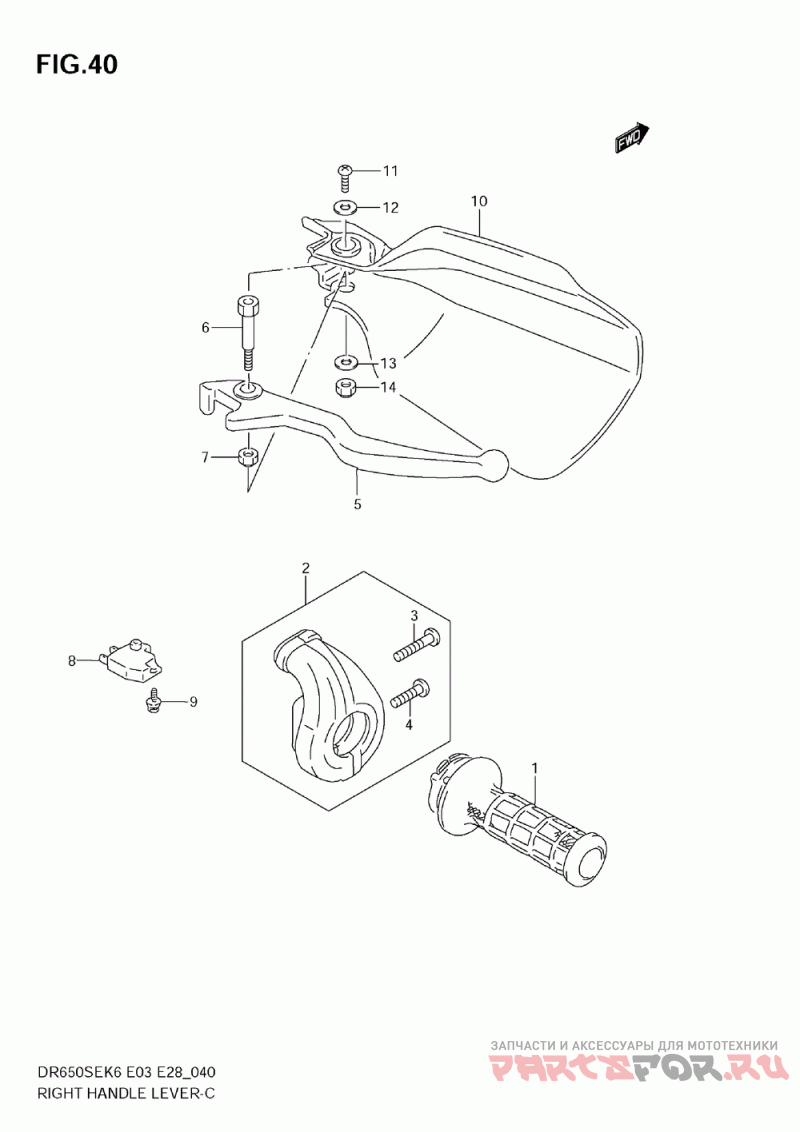

Рукоятка газа и тормоза для мотоциклов Suzuki (Америка) DR650SE (2009)

Рукоятка газа и тормоза

Suzuki (Америка) DR650SE

oem код

название

цена

Рукоятка газа

Case Assy, Throttle

Винт

Винт

Рычаг

Bolt, Brake Lever Pivot

57433-09F00

Nut, Pivot

57460-17C11

.switch Assy, Lock

57465-17C00

Винт

10-1

57341-05D00-YU1

Cover, Knuckle Rh (yellow) (model K6 For Yu1)

10-2

57341-05D00-YJ4

Cover, Knuckle Rh (blue) (model K6 For N9j)

10-3

57341-05D10-019

Cover, Knuckle Rh (black) (model K7/k8 For 019)

10-4

57341-05D10-YLW

Cover, Knuckle Rh (blue) (model K7 For N9j Model K8 For Yky )

10-6

57341-05D10-30H

Cover, Knuckle, R (model K9)

Винт

.washer, 5.5x16x1.20

Шайба

Nut ( Color : N9j = 30h(white), Yc2(blue) )

10-5

57341-05D10-019

Cover, Knuckle, R (model K9)
