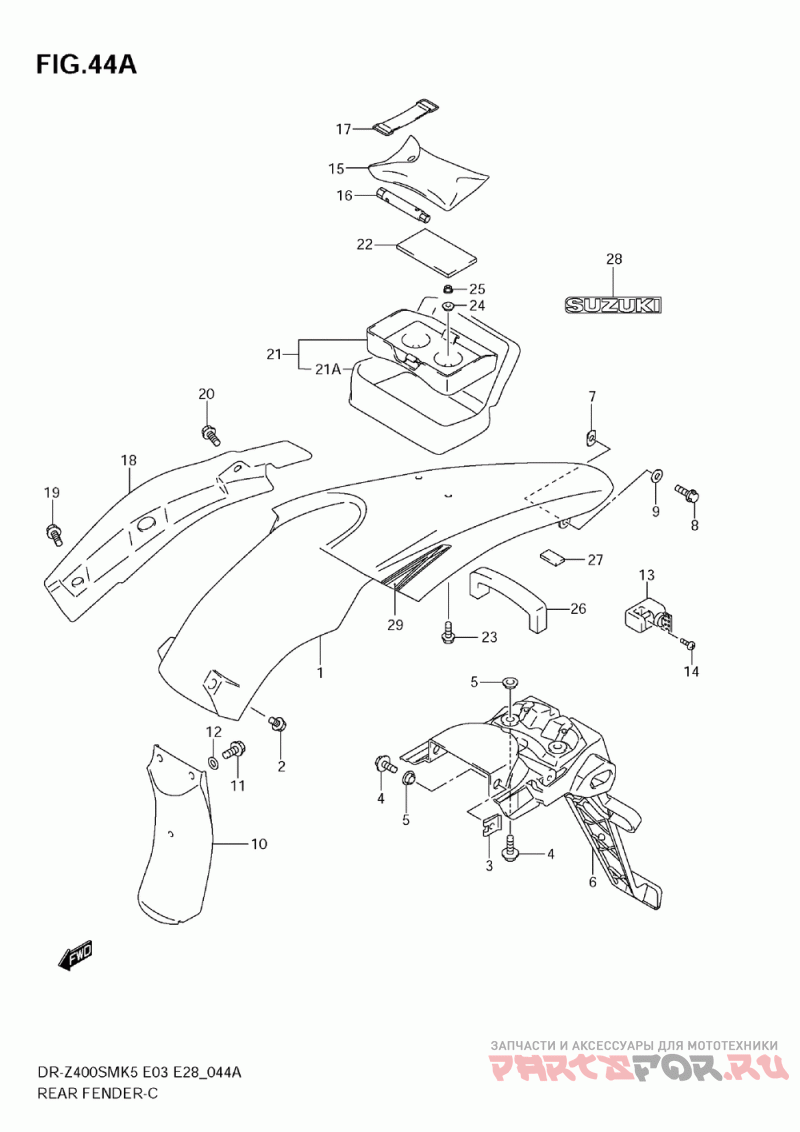

Rear fender (model k7/k8/k9)

Suzuki (Америка) DR-Z400SM

Suzuki (Америка)
#oem кодцена
1-1
63113-29FA0-YU1
Fender, Rear (model K7 For Yu1)
1-2
63113-29FA0-019
Fender, Rear (black) (model K7/k8 For 019)
1-3
63113-29FA0-YLW
Fender, Rear (blue) (model K7 For N9j)
1-4
63113-29FA0-30H
Fender, Rear (wh (model K8 For 30h)
2
09113-06001
Винт
3
63312-13E01
Plate, Rr Fender
4
09116-06115
Болт
5
09169-06073
Шайба
6
63311-29FA1
Extension, Rear Fender
7
94484-24F00
Гайка
8
01550-0512B
Болт
9
09169-05024
Шайба
10
63411-29F00
Mudguard, Front
11
01547-0616B
Болт
12
09169-06055
Шайба
13-1
95700-44821
Lock Set, Helmet (model K7)
13-2
95700-41821
Lock Set, Helmet (model K8/k9)
14
09139-06089
Винт
15
09800-21042
Tool Assy
16
09816-00186
Spanner, Box 8x10
17
09462-00008
Ремень крепежн.
18
63114-29F00
Mudguard, Rear Fender Rh
19
09111-06081
Bolt, Lower
20
63161-43E00
Болт
21
94900-29FB1
Bag, Seat Tail
21A
94910-29FB0
.bag
22
94915-44E00
Подушка
23
01550-0620B
Болт
24
09169-06063
Washer, Seat Band
25
09159-06078
Гайка
26
47161-29B00
Подушка, передняя
27
33651-37000
Protector (170x95x3.0)
28-1
68721-13A00-GY8
Emblem, "suzuki" (model K7 For Yu1)
28-2
68721-13A00-CT5
Emblem, "suzuki" (model K7/k8/k9 For 019 )
28-4
68721-13A00-FH7
Emblem, "suzuki" (model K8/k9 For 30h)
29-1
68170-29F00-DWA
Tape Set (model K7 For 019)
1-5
63113-29FA0-019
Fender, Rear Bla (model K9)
1-6
63113-29FA0-30H
Fender, Rear (wh (model K9)
13-1
95700-41821
Lock Set, Helmet (model K7)
28-3
68721-13A00-8YM
Emblem, "suzuki (model K7 For N9j)
