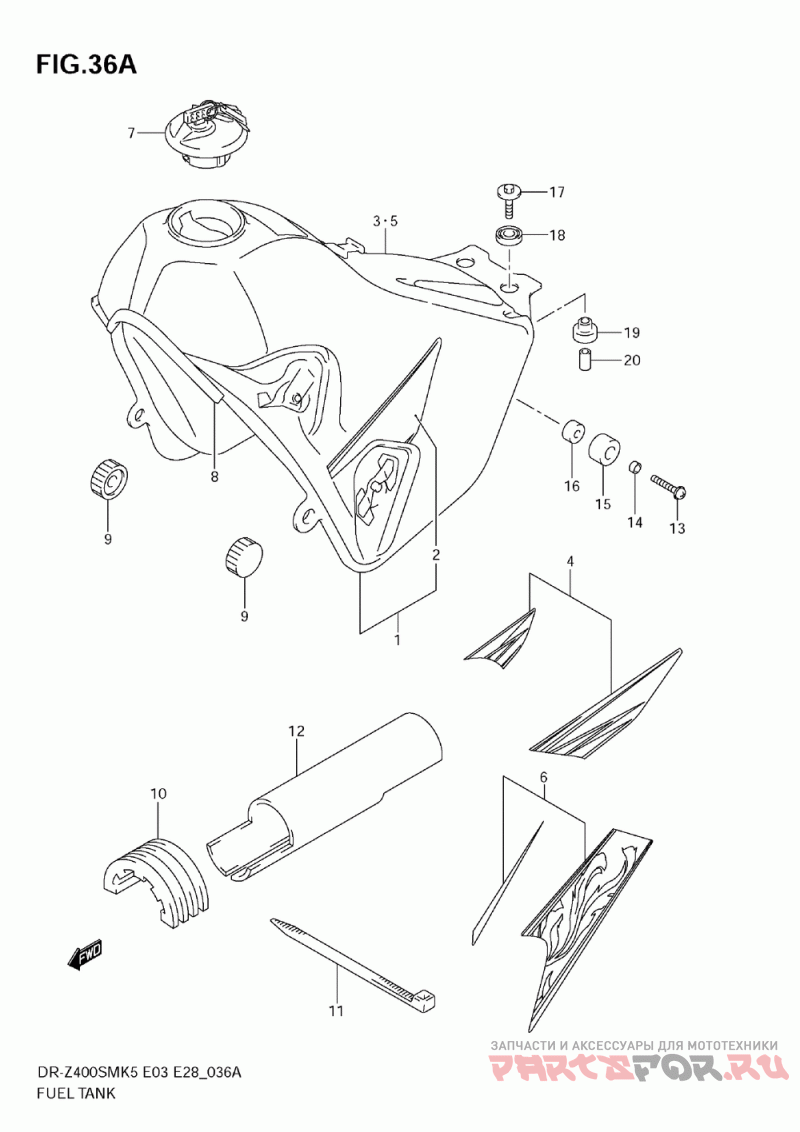

Топливный бак (model k7/k8) для мотоциклов Suzuki (Америка) DR-Z400SM (2009)

Топливный бак (model k7/k8)

Suzuki (Америка) DR-Z400SM

oem код

название

цена

1-1

49100-29FC0-YU1

Tank Assy, Fuel (yellow) (model K7 For Yu1)

1-2

49100-29FD0-YU1

Tank Assy, Fuel (yellow) (model K7 E33 For Yu1)

68110-29FH0-DUN

.tape Set (model K7 For Yu1)

3-1

49100-29FF0-019

Tank Assy, Fuel (black) (model K7 For 019)

3-3

49100-29FG0-019

Tank Assy, Fuel (black) (model K7 E33 For 019)

3-4

49100-29FG0-YC2

Tank Assy, Fuel (blue) (model K7 E33 For N9j)

4-1

68110-29FJ0-DVS

.tape Set (model K7 For 019)

5-1

49200-29F00-019

Tank Assy, Fuel (model K8 For 019)

5-2

49100-29FP0-30H

Tank Assy, Fuel (model K8 For 30h)

5-3

49200-29F10-019

Tank Assy, Fuel (model K8 E33 For 019)

5-4

49100-29FQ0-30H

Tank Assy, Fuel (model K8 E33 For 30h)

6-1

68120-29F10-FCM

Tape Set, Fuel T (model K8 For 019)

6-2

68120-29F00-FCR

Tape Set, Fuel T (model K8 For 30h)

7-1

44200-29820

Cap Set, Fuel Tank (model K7/k8)

7-2

44200-05820

Cap Set, Fuel Tank (model K7/k8 E33)

Molding, Cover

Подушка

Подушка

Зажим

Shield, Fuel Tank

Проставка

Cushion, Side

Проставка

Болт

Cushion, Upper

Cushion, Lower

Spacer ( Refer To Fig.36b(h- 7) For Model K9 )

02112-1630B

Винт
