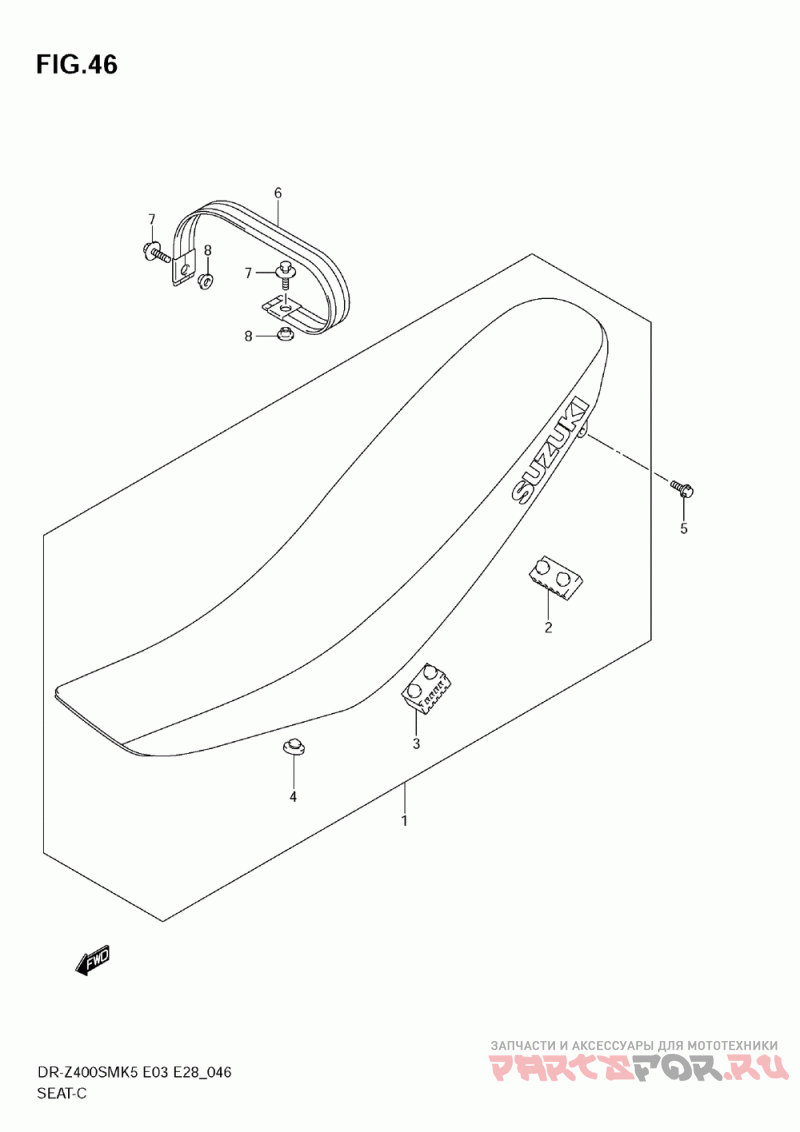

Сидение

Suzuki (Америка) DR-Z400SM

Suzuki (Америка)
#oem кодцена
1-1
45100-29FE0-BAE
Seat Assy (model K5 For Yu1)
1-2
45100-29FE0-BYD
Seat Assy (model K5/k6 For 019)
1-3
45100-29FE0-CEP
Seat Assy (model K6 For Yu1)
1-5
45100-29FE0-DTU
Seat Assy (model K7 For Yu1)
1-6
45100-29FE0-DTV
Seat Assy (model K7 For 019)
1-8
45100-29FE0-DUZ
Seat Assy (model K8 For 30h)
2
45149-12C00
.cushion, Front/rear (40x20x6 ( (front/rear) )
3
45149-31300
.cushion, Center (40x20x15)
4
09321-10022
.cushion
5
09116-06182
.bolt (6x20)
6-1
45180-29F00-P21
Band Assy, Seat (model K5 For Yu1)
6-2
45180-29F00-T5N
Band Assy, Seat (model K5/k6 For 019)
6-3
45180-29F00-T7G
Band Assy, Seat (model K6 For Yu1)
6-5
45180-29F00-U5J
Band Assy, Seat (model K7 For Yu1)
7
09116-06150
Болт
8
09169-06063
Washer, Seat Band
1-7
45100-29FE0-BYD
Seat Assy (model K8 For 019)
1-9
45100-29FE0-BYD
Seat Assy (model K9 For 019, 30h)
6-4
45180-29F00-P21
Band Assy, Seat (model K7 For N9j, 019)
6-6
45180-29F00-P21
Band Assy, Seat (model K8 For 019)
6-7
45180-29F00-U5J
Band Assy, Seat (model K8 For 30h)
