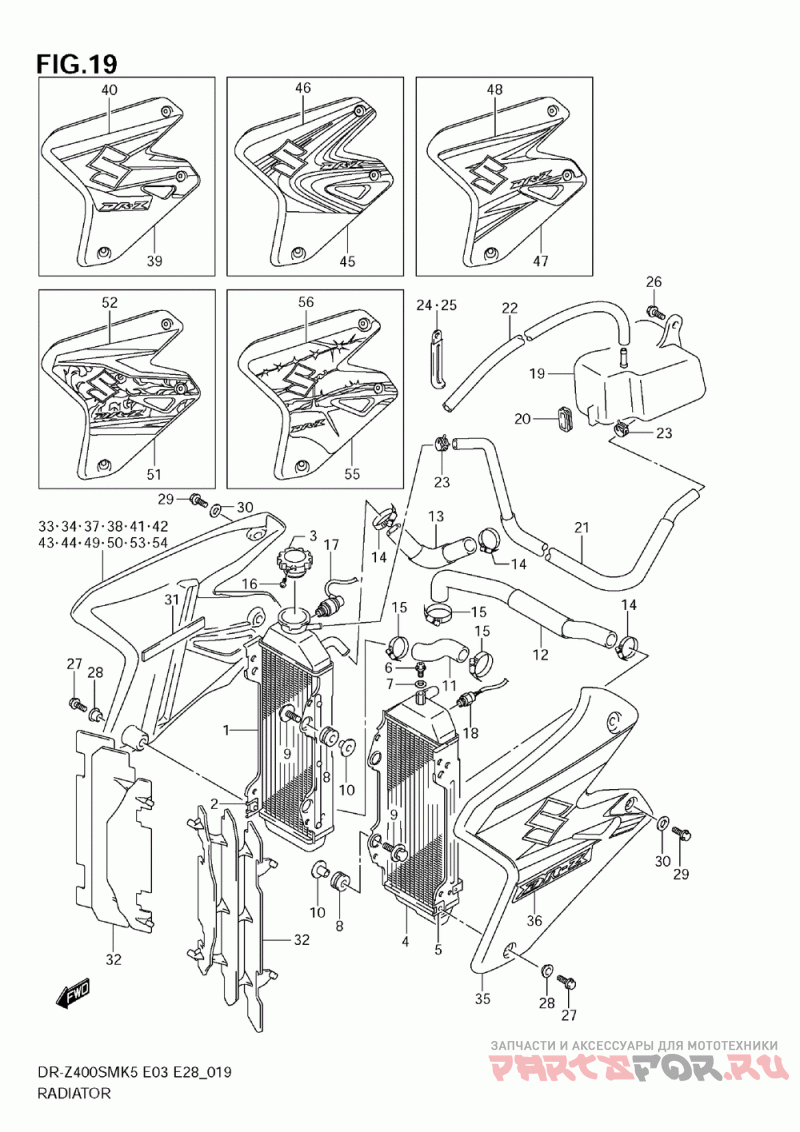

Радиатор

Suzuki (Америка) DR-Z400SM

Suzuki (Америка)
#oem кодцена
1-1
17710-29F40
Radiator,water, (model K5/k6/k7)
2
09148-06015
Гайка
3
17730-19D11
Cap, Radiator 1.1
4-1
17720-29F40
Radiator Comp, W (model K5/k6/k7)
6
17568-50F00
Болт
7
09168-06026
Gasket, Drain Bolt
8
17787-19A00
Cushion, Support
9
09116-06147
Болт
10
09180-06243
Проставка
11
17851-29F10
Hose, Inlet
12
17852-29F30
Hose, Outlet
13
17853-29F10
Hose, Joint Upper
14
09402-28513
Зажим
15
09402-32512
Зажим
16
17733-03D10
Screw, Radiator Cap
17-1
34850-03D00
Switch Assy, Water Temp (model K5/k6/k7)
17-2
34850-29F00
Switch Assy, Wat (model K8/k9)
18
17680-24A30
Switch, Fan
19
17911-29F11
Бачек
20
17913-29F00
Cushion, Reservoir Tank
21
17981-29F01
Hose, Inlet
22
09352-50901-00B
Hose, Tank Inlet (l:2000->650)
23
09401-08411
Зажим
24
09404-08205
Стяжка L-62
25
09404-06432
Зажим
26
01550-0612B
Болт
27
09103-06274
Screw, Radiator Side
28
09169-06053
Washer, Ca Holder (6.3x16x1)
29
09103-06275
Screw, Tank Side
30
09160-06125
Шайба
31
47451-38A01
Cushion, Radiator Cover
32
17831-37E11
Louver, Radiator
33-1
17760-29F80-019
Cover, Radiator Rh (black) (model K5)
33-2
17760-29F70-YU1
Cover, Radiator, Rh (yellow) (model K5)
34-1
68665-29F80-BYL
.tape, Radiator Cover Rh (model K5 For 019 )
34-2
68665-29F70-YHB
.tape, Radiator Cover, Rh (model K5 For Yu1 )
35-1
17770-29F80-019
Cover, Radiator Lh (black) (model K5)
35-2
17770-29F70-YU1
Cover, Radiator, Lh (yellow) (model K5)
36-1
68675-29F80-BYL
.tape, Radiator Cover Lh (model K5 For 019 )
36-2
68675-29F70-YHB
.tape, Radiator Cover, Lh (model K5 For Yu1 )
37-1
17760-29F90-019
Cover, Radiator Rh (black) (model K6)
37-2
17760-29F90-YU1
Cover, Radiator, Rh (yellow) (model K6)
38-1
68665-29F90-CNN
.tape, Radiator Cover Rh (model K6 For 019 )
38-2
68665-29F90-CET
.tape, Radiator Cover, Rh (model K6 For Yu1 )
39-1
17770-29F90-019
Cover, Radiator Lh (black) (model K6)
39-2
17770-29F90-YU1
Cover, Radiator, Lh (yellow) (model K6)
40-1
68675-29F90-CNN
.tape, Radiator Cover Lh (model K6 For 019 )
40-2
68675-29F90-CET
.tape, Radiator Cover, Lh (model K6 For Yu1 )
41-1
17760-29FB0-019
Cover, Radiator Rh (black) (model K7 For 019 )
42-1
68665-29FB0-DVU
.tape, Radiator Cover Rh (model K7 For 019 )
43
17760-29FA0-YU1
Cover, Radiator, Rh (yellow) (model K7 For Yu1 )
44
68665-29FA0-DRA
.tape, Radiator Cover, Rh (model K7 For Yu1 )
45-1
17770-29FB0-019
Cover, Radiator Lh (black) (model K7 For 019 )
46-1
68675-29FB0-DVU
.tape, Radiator Cover Lh (model K7 For 019 )
47
17770-29FA0-YU1
Cover, Radiator, Lh (yellow) (model K7 For Yu1 )
48
68675-29FA0-DRA
.tape, Radiator Cover, Lh (model K7 For Yu1 )
49-1
17760-29FE0-30H
Cover Comp, Radi (model K8)
49-2
17760-29FF0-019
Cover Comp, Radi (model K8)
50-1
68665-29FE0-FCS
Tape, Radiator C (model K8 For 30h )
50-2
68665-29FF0-FCN
Tape, Radiator C (model K8 For 019 )
51-1
17770-29FE0-30H
Cover Comp, Radi (model K8)
51-2
17770-29FF0-019
Cover Comp, Radi (model K8)
52-1
68675-29FE0-FCS
Tape, Radiator C (model K8 For 30h )
52-2
68675-29FF0-FCN
Tape, Radiator C (model K8 For 019 )
53-1
17760-29FH0-30H
Cover Comp, Radi (model K9)
53-2
17760-29FH0-019
Cover Comp, Radi (model K9)
54-1
68665-29FH0-GHE
Tape, Radiator C (model K9 For 30h )
54-2
68665-29FH0-GHD
Tape, Radiator C (model K9 For 019 )
55-1
17770-29FH0-30H
Cover Comp, Radi (model K9)
55-2
17770-29FH0-019
Cover Comp, Radi (model K9)
56-1
68675-29FH0-GHE
Tape, Radiator C (model K9 For 30h )
56-2
68675-29FH0-GHD
Tape, Radiator C (model K9 For 019 )
5
09148-06015
Гайка
25
09404-06429
Зажим
1-2
17710-29F40
Radiator,water, (model K8/k9)
4-2
17720-29F40
Radiator Comp, W (model K8/k9)
