Turn signal lamp (model k5) для мотоциклов Suzuki (Америка) DR-Z400S (2009)

Москва и регионы России

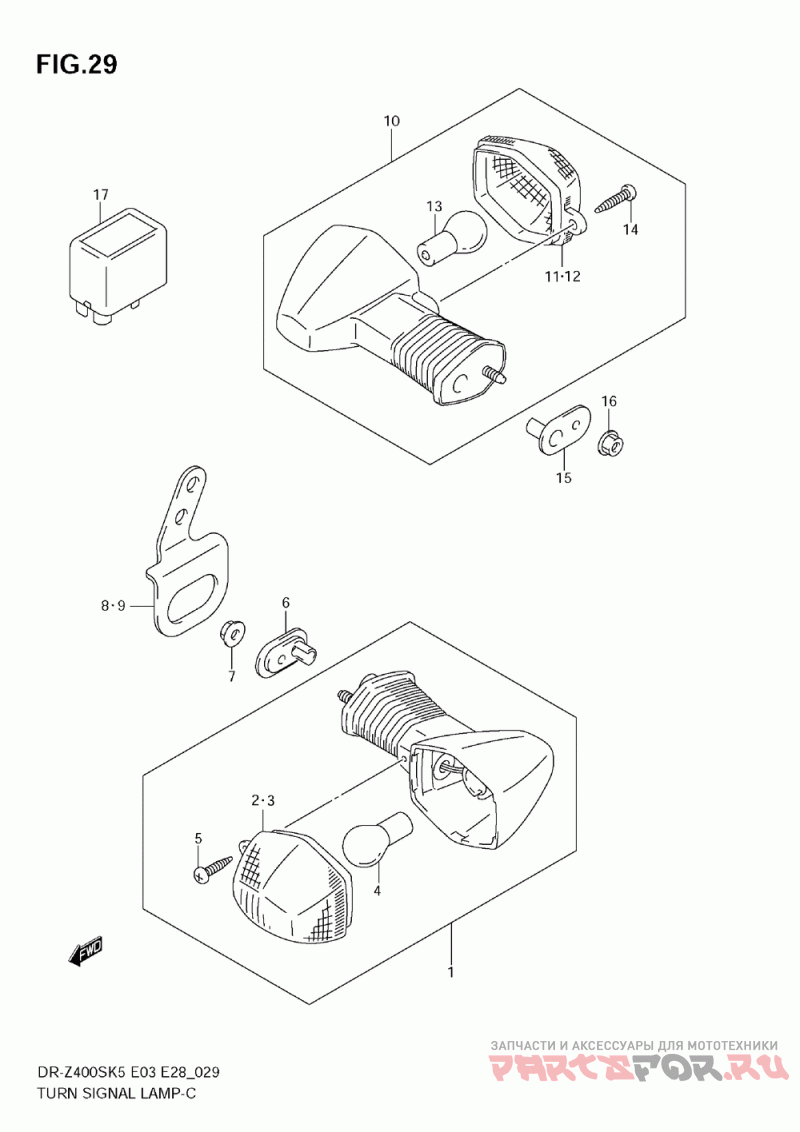

Turn signal lamp (model k5)

Suzuki (Америка) DR-Z400S

#

oem код

название

цена

1-1

35601-29F30

Lamp Assy, Front Turn Rh

1-2

35602-29F30

Lamp Assy, Front Turn Lh

2

35612-31F30

.lens, Lh (amber)

3

35632-31F30

.lens, Rh (amber)

4

09471-12045

.bulb (12v, 21w) (clear)

6

35629-31F40

Plate, Rear Turnsignal

7

08316-1005B

Гайка

8

35671-29F00

Bracket, Front Rh

9

35681-29F00

Bracket, Front Lh

10-1

35603-29F60

Lamp Assy, Rear Turn Rh

10-2

35604-29F60

Lamp Assy, Rear Turn Lh

17

38610-03F00

Relay, Turnsignal Lamp ( Refer To Fig.29b(g-11) For Model K9 )

11
