Радиатор для мотоциклов Suzuki (Америка) DR-Z400S (2009)

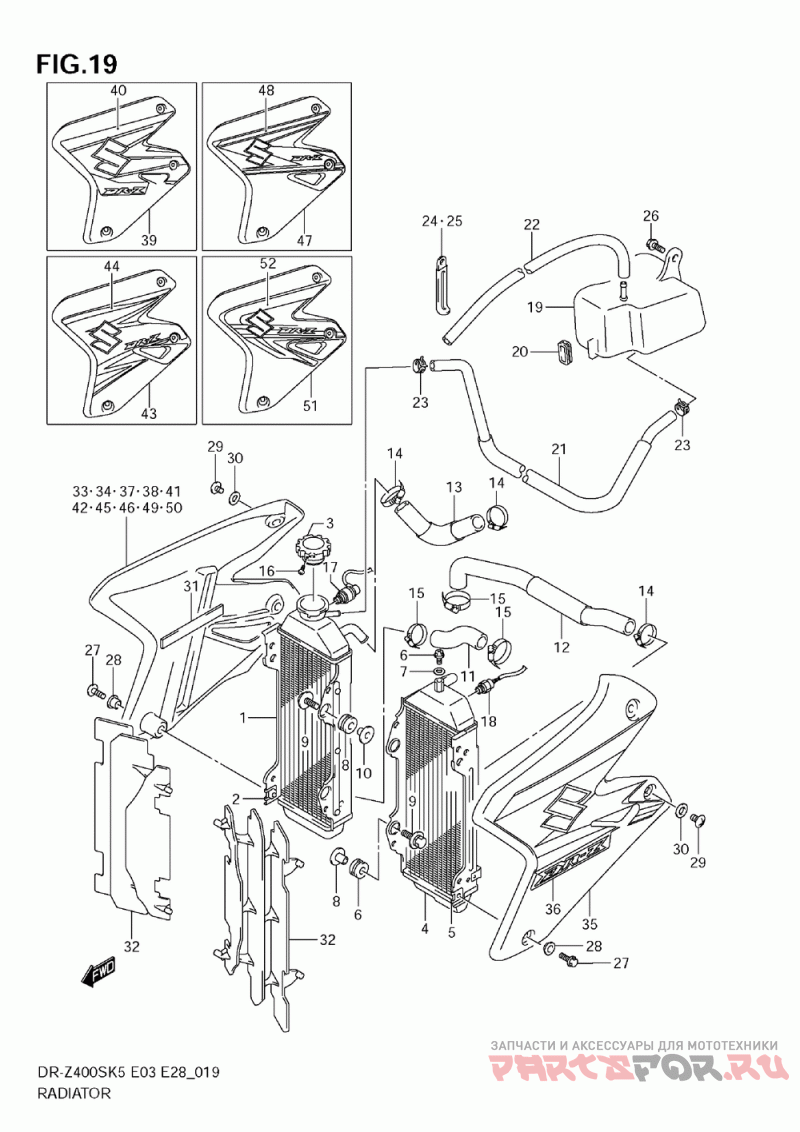

Радиатор

Suzuki (Америка) DR-Z400S

oem код

название

цена

1-1

17710-29F40

Radiator,water, (model K5/k6/k7)

09148-06015

Гайка

17730-19D11

Cap, Radiator 1.1

4-1

17720-29F40

Radiator Comp, W (model K5/k6/k7)

Болт

Gasket, Drain Bolt

Cushion, Support

Болт

Проставка

Hose, Inlet

Hose, Outlet

Hose, Joint Upper

Зажим

Зажим

Screw, Radiator Cap

17-1

34850-03D00

Switch Assy, Water Temp (model K5/k6/k7)

17-2

34850-29F00

Switch Assy, Wat (model K8/k9)

17680-24A30

Switch, Fan

17911-29F11

Бачек

17913-29F00

Cushion, Reservoir Tank

17981-29F01

Hose, Inlet

09352-50901-00B

Hose, Tank Inlet (l:2000->650)

Зажим

Стяжка L-62

Зажим

Болт

27-1

02142-0616A

Screw (model K5)

27-2

09103-06274

Screw, Radiator Side (model K6/k7/k8/k9)

28-1

09169-06060

Washer (model K5)

28-2

09169-06053

Washer, Ca Holder (6.3x16x1) (model K6/k7/k8/k9)

29-1

02142-0608A

Bolt, Rr Brake Drum Cover (model K5)

29-2

09103-06275

Screw, Tank Side (model K6/k7/k8/k9)

30-1

09160-06126

Washer (6.5x14x2) (model K5)

30-2

09160-06125

Washer (model K6/k7/k8/k9)

47451-38A01

Cushion, Radiator Cover

17831-37E11

Louver, Radiator

33-1

17760-29F70-YJ4

Cover, Radiator Rh (blue) (model K5 For N9j )

33-2

17760-29F70-YU1

Cover, Radiator, Rh (yellow) (model K5 For Yu1 )

34-1

68665-29F70-YHU

.tape, Radiator Cover Rh (model K5 For N9j )

34-2

68665-29F70-YHB

.tape, Radiator Cover, Rh (model K5 For Yu1 )

35-1

17770-29F70-YJ4

Cover, Radiator Lh (blue) (model K5 For N9j )

35-2

17770-29F70-YU1

Cover, Radiator, Lh (yellow) (model K5 For Yu1 )

36-1

68675-29F70-YHU

.tape, Radiator Cover Lh (model K5 For N9j )

36-2

68675-29F70-YHB

.tape, Radiator Cover, Lh (model K5 For Yu1 )

37-1

17760-29F90-YJ4

Cover, Radiator Rh (blue) (model K6 For N9j )

37-2

17760-29F90-YU1

Cover, Radiator, Rh (yellow) (model K6 For Yu1 )

38-1

68665-29F90-CLV

.tape, Radiator Cover Rh (model K6 For N9j )

38-2

68665-29F90-CET

.tape, Radiator Cover, Rh (model K6 For Yu1 )

39-1

17770-29F90-YJ4

Cover, Radiator Lh (blue) (model K6 For N9j )

39-2

17770-29F90-YU1

Cover, Radiator, Lh (yellow) (model K6 For Yu1 )

40-1

68675-29F90-CLV

.tape, Radiator Cover Lh (model K6 For N9j )

40-2

68675-29F90-CET

.tape, Radiator Cover, Lh (model K6 For Yu1 )

41-1

17760-29FA0-YLW

Cover, Radiator Rh (blue) (model K7 For N9j )

41-2

17760-29FA0-YU1

Cover, Radiator, Rh (yellow) (model K7 For Yu1 )

42-1

68665-29FA0-DUR

.tape, Radiator Cover Rh (model K7 For N9j )

42-2

68665-29FA0-DRA

.tape, Radiator Cover, Rh (model K7 For Yu1 )

43-1

17770-29FA0-YLW

Cover, Radiator Lh (blue) (model K7 For N9j )

43-2

17770-29FA0-YU1

Cover, Radiator, Lh (yellow) (model K7 For Yu1 )

44-1

68675-29FA0-DUR

.tape, Radiator Cover Lh (model K7 For N9j )

44-2

68675-29FA0-DRA

.tape, Radiator Cover, Lh (model K7 For Yu1 )

45-1

17760-29FC0-019

Cover Comp, Radi (model K8 For 019 )

45-2

17760-29FC0-YLW

Cover Comp, Radi (model K8 For Yky )

46-1

68665-29FD0-EVF

Tape, Radiator C (model K8 For 019 )

46-2

68665-29FD0-EVK

Tape, Radiator C (model K8 For Yky )

47-1

17770-29FC0-019

Cover Comp, Radi (model K8 For 019 )

47-2

17770-29FC0-YLW

Cover Comp, Radi (model K8 For Yky )

48-1

68675-29FD0-EVF

Tape, Radiator C (model K8 For 019 )

48-2

68675-29FD0-EVK

Tape, Radiator C (model K8 For Yky )

49-1

17760-29FG0-019

Cover Comp, Radi (model K9)

49-2

17760-29FG0-30H

Cover Comp, Radi (model K9)

50-1

68665-29FG0-GFJ

Tape, Radiator C (model K9 For 019 )

50-2

68665-29FG0-GFK

Tape, Radiator C (model K9 For 30h )

51-1

17770-29FG0-019

Cover Comp, Radi (model K9)

51-2

17770-29FG0-30H

Cover Comp, Radi (model K9)

52-1

68675-29FG0-GFJ

Tape, Radiator C (model K9 For 019 )

52-2

68675-29FG0-GFK

Tape, Radiator C (model K9 For 30h )

09148-06015

Гайка

09404-06429

Зажим

1-2

17710-29F40

Radiator,water, (model K8/k9)

4-2

17720-29F40

Radiator Comp, W (model K8/k9)
