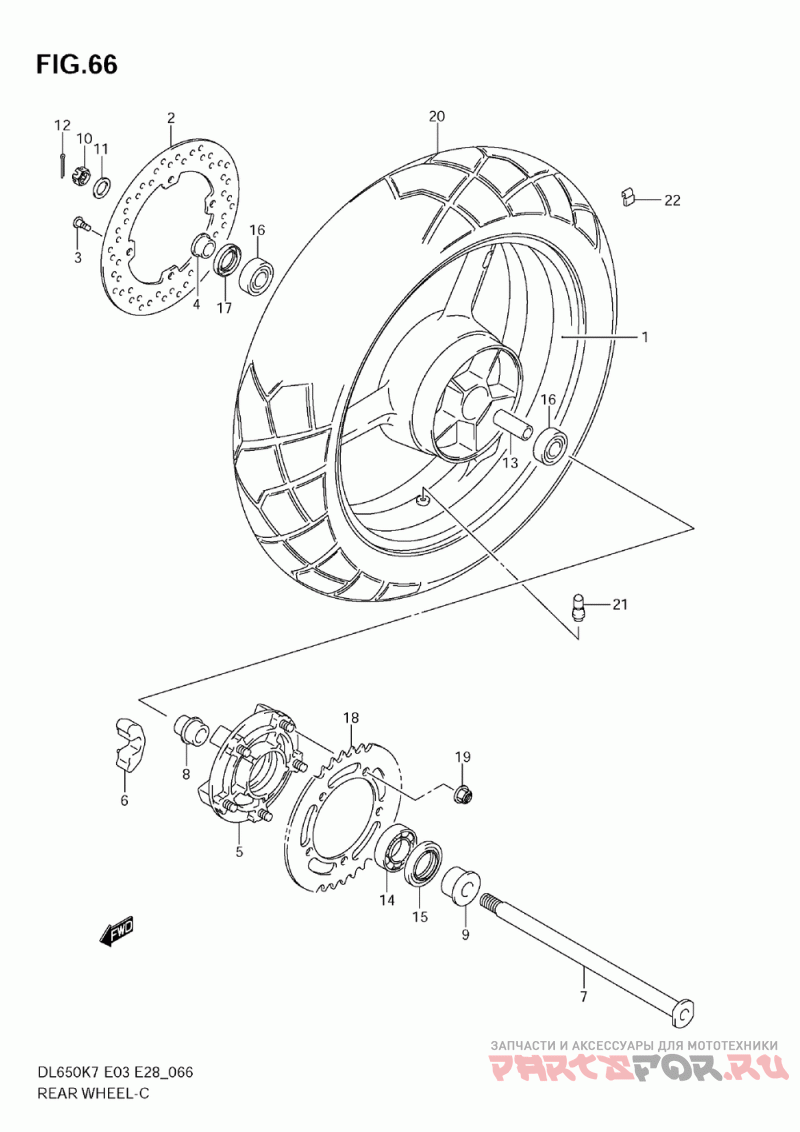

Rear wheel (dl650k7/k8/k9)

Suzuki (Америка) DL650,A

Suzuki (Америка)
#oem кодцена
1-1
64111-06G10-019
Wheel, Rear (17m/cxmt4.00) (model K7/k8 (black) Model K9 For Yay,yme )
1-2
64111-06G10-YD8
Wheel, Rear(17m/ (model K9 For Yhg, Ypa (silver) )
2
69211-06G00
Disc, Rear Brake
3
09106-08160
Bolt, Disc
4
64741-10F00
Spacer, Rear Axle Rh No.2
5
64610-35F10
Drum, Rear Sprocket
6
64651-35F10
Absorber, Rear Hub Shock
7
64711-03F10
Ось задняя
8
64733-06G00
Retainer, Rear Sprocket Drum
9
64751-27G00
Spacer, Rear Axle Lh
10
08314-40187
Гайка
11
09160-18030
Шайба
12
04111-4035A
Шплинт
13
09180-20112
Spacer, Rear Hub Bearing
14
09262-32007
Bearing (32x65x17)
15
09285-39001
Seal (39x65x7)
16
08123-62047
Bearing, Rear Hub
17
09285-28001
Seal, Rear Wheel Bearing Rh
18
64511-27G00
Sprocket, Rear (nt:47-525)
19
08319-3110A
Nut, Upper
20
65110-06G10
Tire, Rear, 150/70r17m/c 69h (trail Wing 152 (bridgestone) Radial F )
21
43130-24A00
Valve Assy, Wheel Rim (tr412)
22-1
43222-73H10
Balancer, Wheel (10g)
22-2
43224-73H10
Balancer, Wheel (20g)
22-3
43226-73H10
Balancer, Wheel (30g) ( Refer To Fig.67(j- 5) For Dl650ak7/ak8/ak9 )
14
09262-32022
Bearing, 32x65x1
