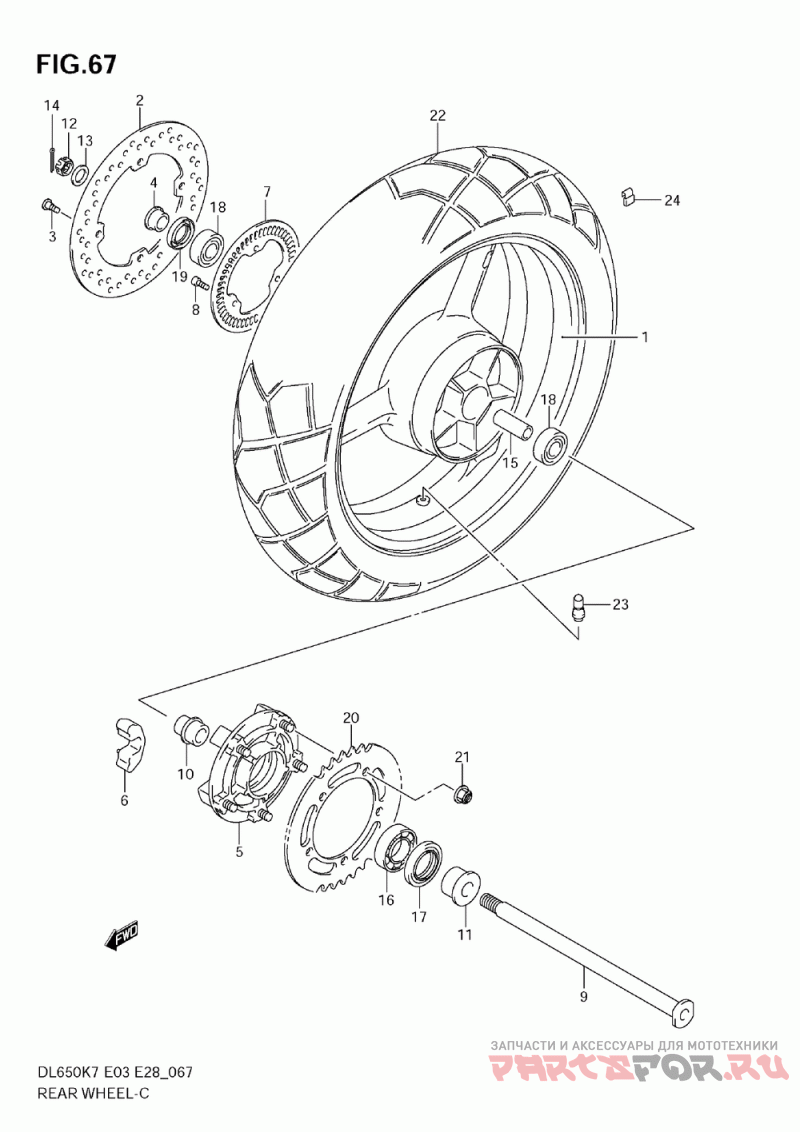

Rear wheel (dl650ak7/ak8/ak9)

Suzuki (Америка) DL650,A

Suzuki (Америка)
#oem кодцена
1-1
64111-06G20-019
Wheel, Rear (17m/cxmt4.00) (model K7/k8 (black) Model K9 For Yay,yme )
1-2
64111-06G20-YD8
Wheel, Rr(17m/cx (model K9 For Yhg, Ypa (silver) )
2
69211-06G00
Disc, Rear Brake
3
09106-08160
Bolt, Disc
4
64741-10F00
Spacer, Rear Axle Rh No.2
5
64610-35F10
Drum, Rear Sprocket
6
64651-35F10
Absorber, Rear Hub Shock
7
54162-27G00
Ring, Speed Senser Fr
8
07130-05127
Болт
9-1
64711-03F10
Axle, Rear (model K7/k8)
9-2
64711-03F00
Axle, Rear (model K9)
10
64733-06G00
Retainer, Rear Sprocket Drum
11
64751-27G00
Spacer, Rear Axle Lh
12-1
08314-40187
Nut (model K7/k8)
12-2
08319-3118A
Nut (model K9)
13
09160-18030
Шайба
14
04111-4035A
Шплинт
15
09180-20112
Spacer, Rear Hub Bearing
16
09262-32007
Bearing (32x65x17)
17
09285-39001
Seal (39x65x7)
18
08123-62047
Bearing, Rear Hub
19
09285-28001
Seal, Rear Wheel Bearing Rh
20
64511-27G00
Sprocket, Rear (nt:47-525)
21
08319-31107
Гайка
22
65110-06G10
Tire, Rear, 150/70r17m/c 69h (trail Wing 152 (bridgestone) Radial F )
23
43130-24A00
Valve Assy, Wheel Rim (tr412)
24-1
43222-73H10
Balancer, Wheel (10g)
24-2
43224-73H10
Balancer, Wheel (20g)
24-3
43226-73H10
Balancer, Wheel (30g)
16
09262-32022
Bearing, 32x65x1
