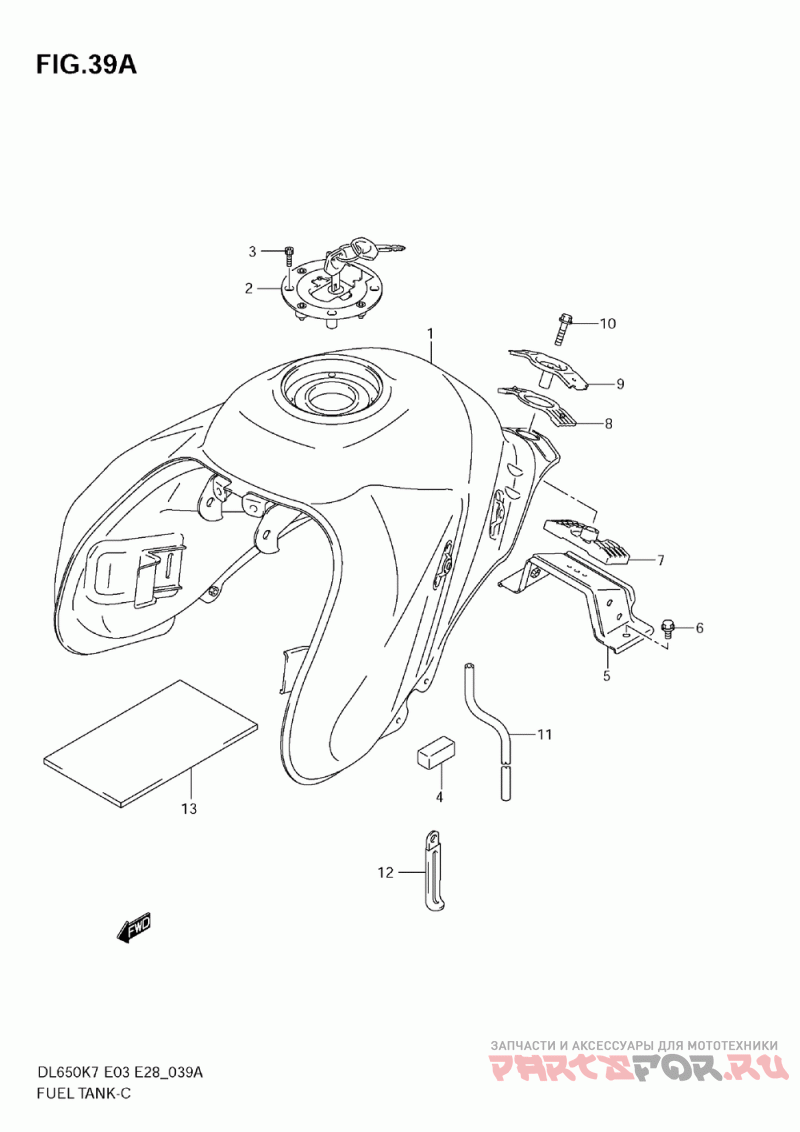

Топливный бак (model k8) для мотоциклов Suzuki (Америка) DL650,A (2009)

Топливный бак (model k8)

Suzuki (Америка) DL650,A

oem код

название

цена

1-1

44100-06G30-YHG

Tank, Fuel (silver) (e3,e28)

1-2

44100-06G30-YMF

Tank Assy, Fuel (e3, E28)

1-3

44100-06G30-YKV

Tank Assy, Fuel (e3, E28)

1-4

44100-06G30-YKY

Tank, Fuel (blue) (e3,e28)

1-5

44100-06G50-YHG

Tank, Fuel (gray) (e33)

1-6

44100-06G50-YMF

Tank Assy, Fuel (e33)

1-7

44100-06G50-YKV

Tank, Fuel(black (e33)

1-8

44100-06G50-YKY

Tank, Fuel (blue) (e33)

2-1

44201-33820

Cap Set, Fuel Tank (e3,e28)

2-2

44200-33830

Cap Set, Fuel Tank (e33)

09106-05017

Болт

44541-06G00

Cushion, Side

44550-06G10

Кронштейн, задний нижний

Болт

Cushion, Lower

Cushion, Upper

Крепление верхнее

Болт

Hose, Water Drain

Clamp (l:95)

Shield, Tank Center ( Refer To Fig.39b(g- 8) For Model K9 )

09404-06433

Clamp, L:95
