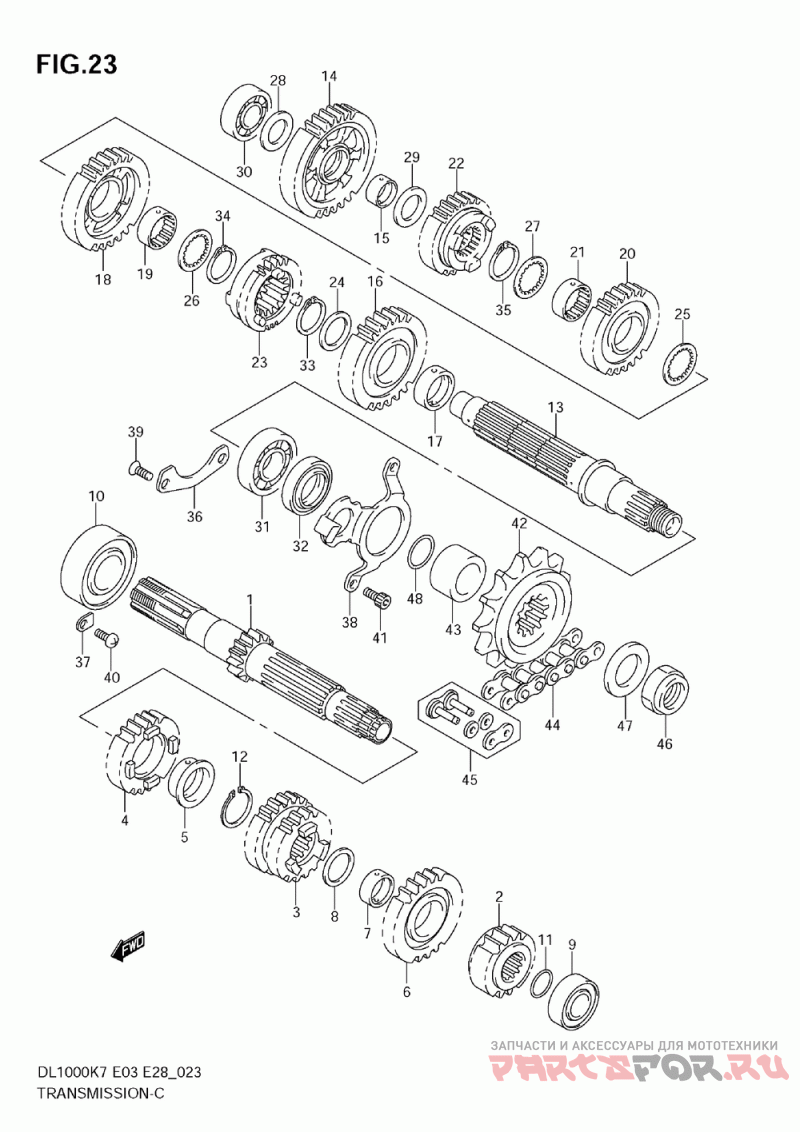

Трансмиссия

Suzuki (Америка) DL1000

Suzuki (Америка)
#oem кодцена
1
24120-06G00
Shaft, Counter (nt:12)
2
24221-02F01
Gear, 2nd Drive (nt:15)
3
24231-02F20
Gear, 3rd & 4th Drive (nt:18/27)
4
24251-02F11
Gear, 5th Drive (nt:23)
5
24252-02F10
Bush, 5th Drive
6
24261-06G00
Gear, 6th Drive (nt:23)
7
24262-02F00
Bush, 6th Drive
8
09181-22167
Washer, 6th Drive (22x30x1.0)
9
09262-20139
Bearing, Center Shaft Lh (20x47x14)
10
09262-25073
Bearing (25x62x17) (25x62x17)
11
09280-17004
O Ring, Center Shaft (d:1.9,id:16.6)
12
09380-27001
Circlip, 2nd Driven
13
24130-02F10
Вал ведущий
14
24311-06G00
Gear, 1st Driven (nt:36)
15
24312-02F00
Bush, 1st Driven
16
24321-02F11
Gear, 2nd Driven (nt:29)
17
24322-02F01
Bush, 2nd Driven
18
24331-02F12
Gear, 3rd Driven (nt:27)
19
24332-17E20
Bush, 4th Driven
20
24341-02F20
Gear, 4th Driven (nt:27)
22
24351-02F13
Gear, 5th Driven (nt:25)
23
24361-06G00
Gear, 6th Driven (nt:21)
24
09160-27008
Washer, 2nd Driven Gear (27x36x1)
25
09167-27002
Washer, 3rd & 4th Driven (27x36x2)
26
24333-02F00
Washer, 3rd Driven Gear
28
09181-20251
Shim (t:1.0) (20x34x1)
29
09181-22223
Washer, 1st Driven Lh (22x34x1)
30
09262-20082
Bearing, Drive Shaft Rh (20x52x15)
31
09262-28040
Bearing, Drive Shaft Lh (28x68x20)
32
09283-38020
Seal, Drive Shaft (38x52x8)
36
24741-06G00
Retainer, Drive Shaft Brg
37
24741-21A00
Retainer, Shift Cam Bearing
38
24751-06G00
Retainer, Drive Shaft Oil
39
09126-06011
Screw, Drive Shaft (6x12)
40
02112-0612A
Винт
41
07130-0612A
Bolt, Piston Cooling Jet
42
27510-20A20
Sprocket, Engine (nt:17)
43
27531-24B13
Распорная втулка
44
27600-06G00-112
Chain Assy (rk525smoz7)
45
27620-06G00
Joint Set, Chain (opt)
46
09159-20004
Nut, Engine Sprocket
47
09160-25009
Washer (25x41x3)
48
09280-24010
O Ring (d:2.4, Id:23.7)
21
24332-17E20
Bush, 3rd / 4th
27
24333-02F00
Washer, 3rd / 4t
33
09380-27001
Пружинное стопорное кольцо
34
09380-27001
Пружинное стопорное кольцо
35
09380-27001
Пружинное стопорное кольцо
