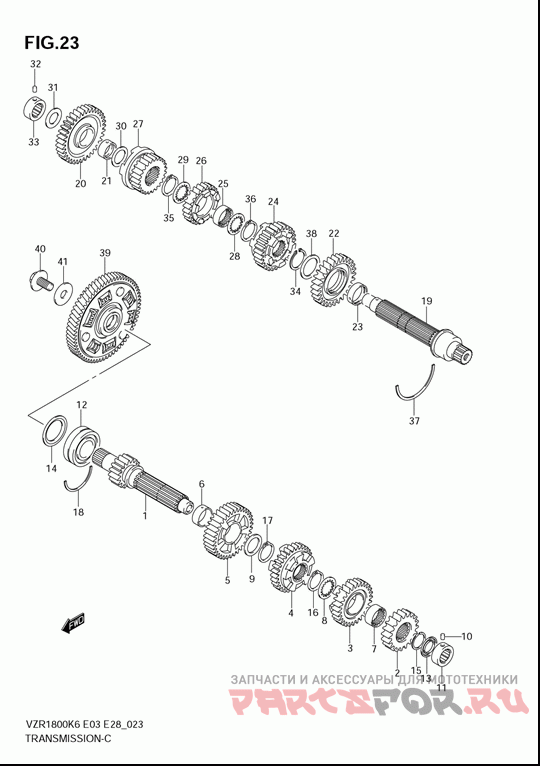

Трансмиссия

Suzuki (Америка) VZR1800 Boulevard M109R

Suzuki (Америка)
#oem кодцена
1
24121-48G00
Shaft, Cntr (nt:18) ()
2
24221-48G00
Gear, 2nd Drive (nt:20) ()
3
24231-48G00
Gear, 3rd Drive (nt:28) ()
4
24241-48G00
Gear, 4th Drive (nt:29) ()
5
24251-48G00
Gear, 5th Drive (nt:35) ()
6
24252-24F10
Bush, 5th Drive ()
7
24262-24F10
Bush, 4th Drive ()
8
09167-27003
Washer, 6th Drive ()
9
09181-27014
Washer, 5th Drive (27x36x2.5)
10
09261-06003
Pin, Drive Shaft, R (6x10)
11
09263-20087
Bearing, Drive Shaft, R (20x34x13.5)
12
09267-25012
Bearing, Center Shaft Rh ()
13
09285-20006
Seal, Oil ()
14
09285-34011
Seal, Counter Shaft, R ()
15
09380-27004
Circlip, 2nd Drive ()
16
09380-27006
Circlip, 5th & 6th Drive ()
18
09390-62012
C Ring, Cntr Shaft Brg Rh ()
19
24130-48G01
Shaft, Drive ()
20
24311-48G00
Gear, 1st Driven (nt:35) ()
21
24312-24F10
Bush, 1st Driven ()
22
24321-48G01
Gear, 2nd Driven (nt:28) ()
23
24322-48G00
Bush, 2nd Driven Gear ()
24
24331-48G00
Gear, 3rd Driven (nt:27) ()
25
24332-24F10
Bush, 3rd & 4th Driven ()
26
24341-48G00
Gear, 4th Driven (nt:24) ()
27
24351-48G00
Gear, 5th Driven (nt:24) ()
28
09167-30008
Washer, 3rd Driven Gear Lh ()
30
09181-20251
Shim (t:1.0) (20x34x1.0)
31
09181-24005
Washer, 1st Driven Lh (24x34x1.0)
34
09380-30009
Circlip, 2nd Driven ()
37
09390-80004
C Ring, Drive Shaft Brg, L ()
38
08211-30403
Washer, 2nd Driven Gear ()
39
21200-48850
Gear Assy, Primary Driven (nt:58)
40
09103-12084-A05
Bolt, Secondary Drive Gear (12x24)
41
09160-12045
Washer, Secondary Drive (12x35x2.0)
