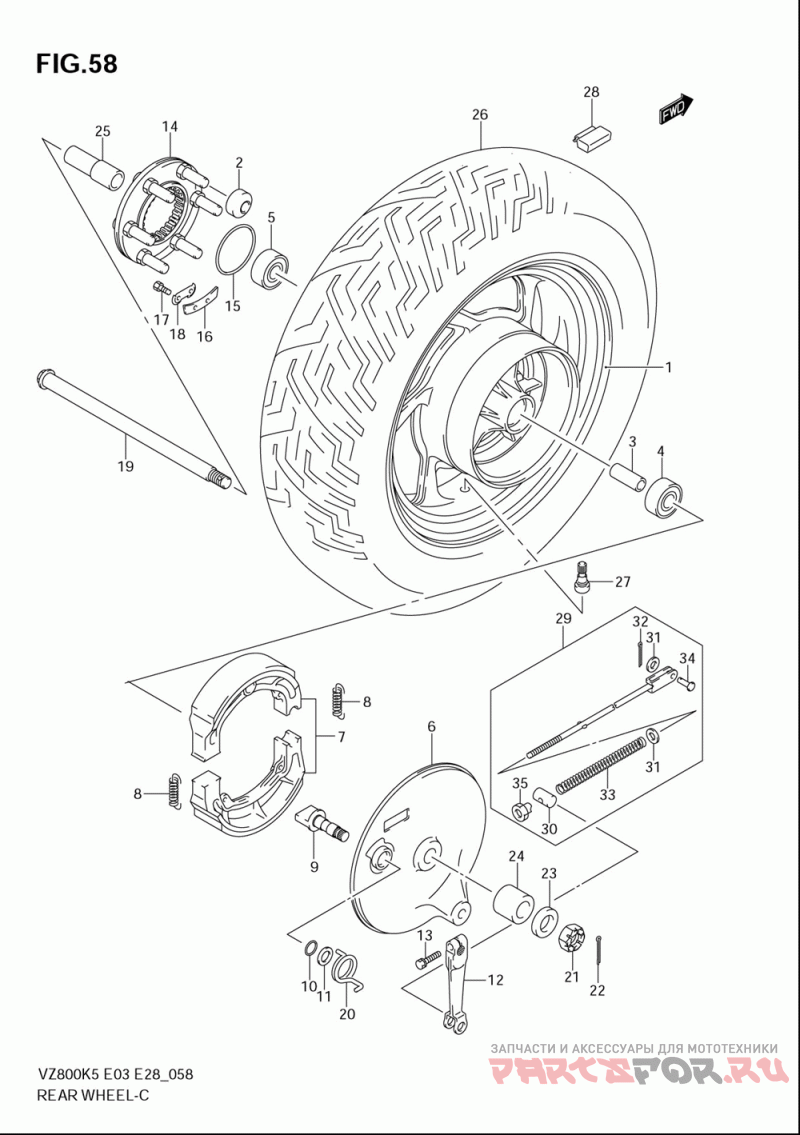

Заднее колесо

Suzuki (Америка) VZ800 Boulevard M50

Suzuki (Америка)
#oem кодцена
1
64150-39G00-019
Wheel, Rear (15m/cxmt4.00) ()
2
09319-12019
.bush, Rear Hub ()
3
09180-17112
Spacer, Rr Hub (17.3x25x99) ()
4
08123-63037
Bearing, Rh ()
5
08143-63037
Bearing ()
6
64210-38A50
Panel, Rear Brake Anchor ()
7
64400-38820
Shoe Set, Brake ()
8
55420-30000
Spring, Shoe ()
9
64441-38A20
Cam, Brake ()
10
09280-15003
O Ring (d:2.4, Id:14.8) ()
11
09160-15048
Шайба
12
64451-38A01
Lever, Brake Cam ()
13
01570-06257
Болт
14
64680-45113
Joint, Hub Driven ()
15
09280-65003
O Ring, Driven Joint ()
16
64677-45110
Washer, Thrust ()
17
09119-06049
Bolt, Driven Joint Washer ()
18
09169-06030
Washer, Joint ()
19
64711-19F10
Axle, Rear (l:302) ()
20
09448-33006
Spring, Cam ()
21
09141-16007
Гайка
22-1
04111-4030A
Pin (model K5/k6/k7)
23
09160-17050
Шайба
24
64741-41F00
Spacer, Rh ()
25
64772-34201
Spacer, Lh ()
26
65110-41F10
Tire, Rr, 170/80-15m/c 77h Ir ()
27
43130-24A00
Нипель
29
43300-41F00
Rod Assy, Rear Brake ()
30
09209-13018
.pin ()
31-1
08322-0106A
Washer (model K5/k6/k7)
31-2
08322-0106B
Washer (model K8)
32-1
04111-20158
Cotter Pin (model K5/k6/k7)
32-2
04111-2015A
Cotter Pin (model K8)
33
09440-09004
Пружина
34
09200-06013
.pin ()
35
09150-06010
Гайка
