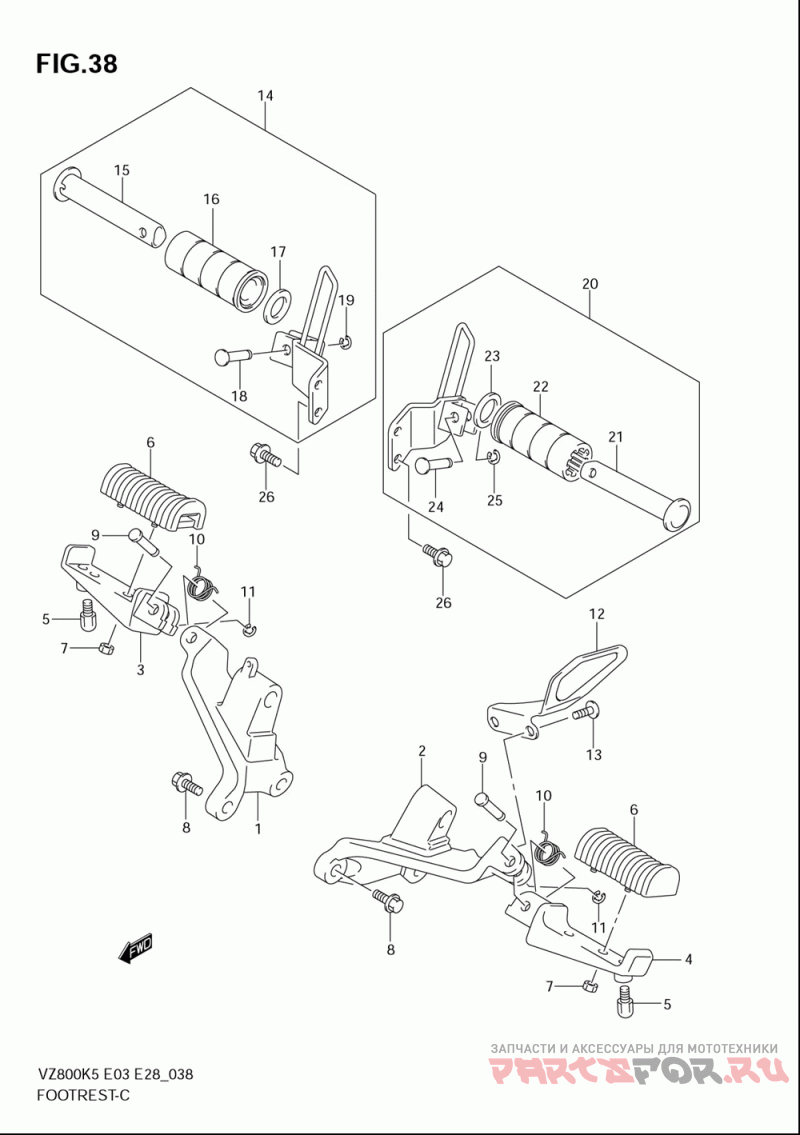

Подножки для мотоциклов Suzuki (Америка) VZ800 Boulevard M50 (2008)

Подножки

Suzuki (Америка) VZ800 Boulevard M50

oem код

название

цена

43511-41F00

Bracket, Front Footrest Rh ()

43521-41F01

Bracket, Front Footrest Lh ()

Bar, Front Footr ()

Bar, Front Footr ()

Bolt, Bank Sensor ()

Rubber, Front Footrest ()

7-1

08319-2106B

Nut (model K5/k6)

8-1

01580-1030A

Bolt (model K5/k6)

8-2

01580-1030B

Bolt (model K7/k8)

09208-08010

Pin ()

09448-18022

Spring ()

11-1

08332-1106A

E Ring, Pinion (model K5/k6)

11-2

08332-1106B

E Ring (model K7/k8)

43571-39G00

Guard, Front Footrest Lh ()

09139-06108

Винт

43600-39G00

Footrest Assy, Pillion Rh ()

43610-39G00

.bar ()

43612-39G00

.rubber ()

09160-19024

Washer (19.5x32x2) ()

43636-25D00

.pin ()

19-1

08332-1104A

E Ring (model K5/k6)

19-2

08332-1104B

E Ring (model K7/k8)

43700-39G00

Footrest Assy, Pillion Lh ()

09103-08412

Bolt, Bracket ()
