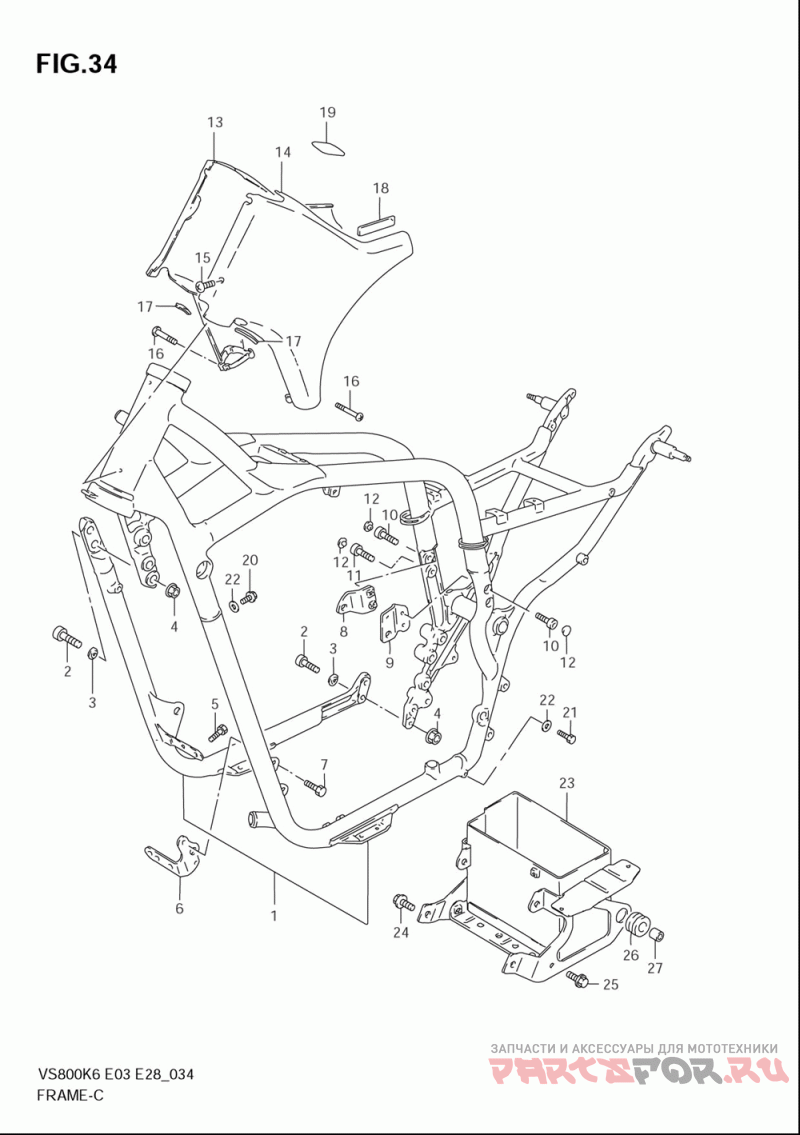

Рама

Suzuki (Америка) VS800 Boulevard S50

Suzuki (Америка)
#oem кодцена
1-1
41101-39813-YAY
Frame Set (black) ()
1-2
41101-39813-YDV
Frame Set (silver) (model K6)
1-3
41101-39813-YHL
Frame Set (red) (model K6)
1-4
41101-39813-YC3
Frame Set (white) (model K7)
1-5
41101-39813-YMD
Frame Set (model K8)
2
09106-10019
.bolt, Rear ()
3
09164-10010
Шайба
4
08319-3110B
Гайка
6
41920-38A00-019
()
8
41950-38A11-019
Plate, No.1 Lh (black) ()
9
41960-38A10-019
()
10
09106-08070
Bolt, Upper ()
12
09250-06004
Cap ()
13-1
47350-38A01-YAY
Cover, Frame Head Rh (black) ()
13-2
47350-38A01-YDV
Cover, Frame Head Rh (silver) (model K6)
13-3
47350-38A01-YHL
Cover, Frame Head Rh (red) (model K6)
13-4
47350-38A01-YC3
Cover, Frame Head Rh (white) (model K7)
13-5
47350-38A01-YMD
Cover Comp, Fram (model K8)
14-1
47360-38A01-YAY
Cover, Frame Head Lh (black) ()
14-2
47360-38A01-YDV
Cover, Frame Head Lh (silver) (model K6)
14-3
47360-38A01-YHL
Cover, Frame Head Lh (red) (model K6)
14-4
47360-38A01-YC3
Cover, Frame Head Lh (white) (model K7)
14-5
47360-38A01-YMD
Cover Comp, Fram (model K7)
16
02112-0425B
Screw ()
17
68241-04X50-300
Molding, Cover ()
18
33652-07D00
Cushion, Control (80x80x2) ()
19
47358-38A00
Tape, Frame Head Cover ()
20
17568-50F00
Bolt, Air Release ()
21
01550-0610B
Болт
22
09168-06026
Gasket, Drain Bolt ()
23
41540-38A12
Holder, Battery ()
25
01550-0616B
Болт
26
09320-12031
Cushion ()
27
09301-08009
Spacer ()
