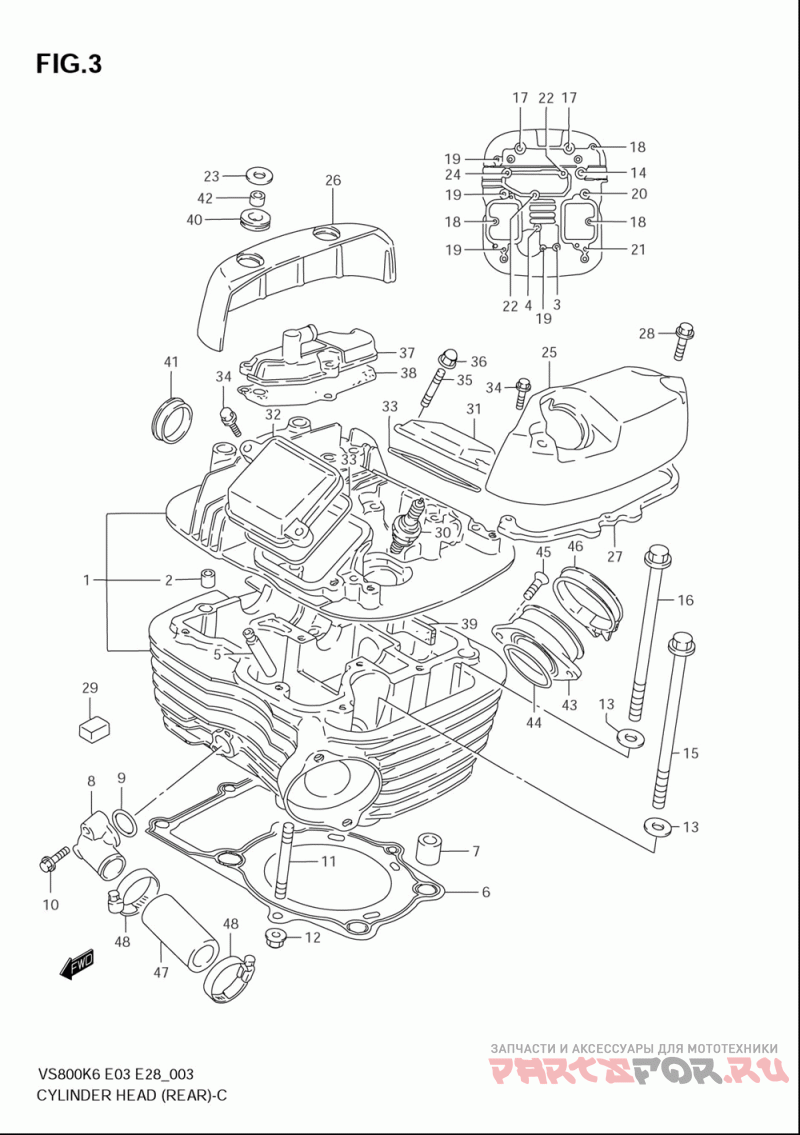

Головка цилиндров (задняя) для мотоциклов Suzuki (Америка) VS800 Boulevard S50 (2008)

Москва и регионы России

Головка цилиндров (задняя)

Suzuki (Америка) VS800 Boulevard S50

Головка цилиндров (задняя)

#

oem код

название

цена

1-1

Head Assy, Cylinder Rear (model K6/k7)

Head Assy, Cylinder Rear (model K6/k7)

1-2

Head Assy, Cylin (model K8)

Head Assy, Cylin (model K8)

2

Pin ()

Pin ()

3

Bolt (6x50) ()

Bolt (6x50) ()

4

.bolt (6x55) ()

.bolt (6x55) ()

5

Guide, Valve (os 0.3) (opt)

Guide, Valve (os 0.3) (opt)

6

Gasket, Cylinder Head Rear ()

Gasket, Cylinder Head Rear ()

7

Pin ()

Pin ()

8

Union, Cylinder Head Water ()

Union, Cylinder Head Water ()

9

O Ring (d:2.4, Id:17.8) ()

O Ring (d:2.4, Id:17.8) ()

10

Болт

Болт

11

Bolt, Stud ()

Bolt, Stud ()

12

Гайка

Гайка

13

Washer (10.5x22x2.3) ()

Washer (10.5x22x2.3) ()

14

Bolt (8x140) ()

Bolt (8x140) ()

15

Bolt (10x155) ()

Bolt (10x155) ()

16

Bolt (10x165) ()

Bolt (10x165) ()

17

Bolt (8x245) ()

Bolt (8x245) ()

18

Болт

Болт

19

Болт

Болт

20

Болт

Болт

23

Washer (8.5x24x1.6) ()

Washer (8.5x24x1.6) ()

24

Болт

Болт

25

Cap, Head Cover Lh ()

Cap, Head Cover Lh ()

26

Cap, Head Cover Rh ()

Cap, Head Cover Rh ()

27

Cushion, Head Cover Cap ()

Cushion, Head Cover Cap ()

28

Болт

Болт

29

Pad, Rubber ()

Pad, Rubber ()

30-1

Spark Plug (ngk, Dpr8ea-9) ()

Spark Plug (ngk, Dpr8ea-9) ()

30-2

Spark Plug (nd, X24epr-u9) ()

Spark Plug (nd, X24epr-u9) ()

30-3

Spark Plug, Dpr7ea-9 (ngk) (opt)

Spark Plug, Dpr7ea-9 (ngk) (opt)

30-5

Spark Plug, Dpr9ea-9 (ngk) (opt)

Spark Plug, Dpr9ea-9 (ngk) (opt)

30-6

Spark Plug, X27epr-u9 (nd) (opt)

Spark Plug, X27epr-u9 (nd) (opt)

31

Cap, Inspection Intake ()

Cap, Inspection Intake ()

32

Cap, Inspection Exhaust ()

Cap, Inspection Exhaust ()

33

Gasket, Inspection Cap ()

Gasket, Inspection Cap ()

34

Bolt, Thermostat Cover ()

Bolt, Thermostat Cover ()

35

Bolt, Inspection Cap Stud ()

Bolt, Inspection Cap Stud ()

37

Cover, Breather ()

Cover, Breather ()

38

11187-38A02-H17

Gasket, Breather Cover ()

Gasket, Breather Cover ()

39

Plate, Head Cover ()

Plate, Head Cover ()

40

Cushion, Head Cover Bolt ()

Cushion, Head Cover Bolt ()

41

Plug, Cylinder Head ()

Plug, Cylinder Head ()

42

Bush, Head Cover Bolt ()

Bush, Head Cover Bolt ()

43

Pipe, Intake Rear ()

Pipe, Intake Rear ()

44

.o Ring, Intake Pipe ()

.o Ring, Intake Pipe ()

45

Болт

Болт

46

Clamp, Intake Pipe ()

Clamp, Intake Pipe ()

47

Hose, Cylinder Head Joint ()

Hose, Cylinder Head Joint ()

48

Clamp ()

Clamp ()
