Головка цилиндров (передняя) для мотоциклов Suzuki (Америка) VS800 Boulevard S50 (2008)

Москва и регионы России

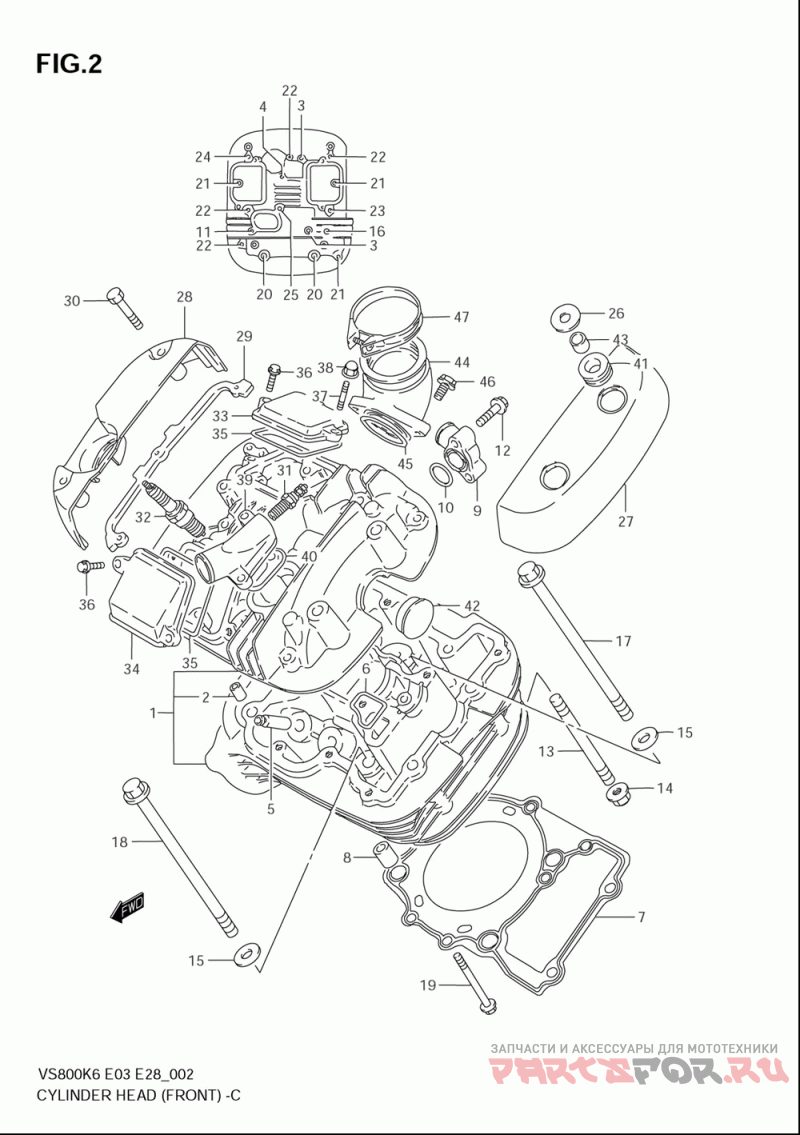

Головка цилиндров (передняя)

Suzuki (Америка) VS800 Boulevard S50

Головка цилиндров (передняя)

#

oem код

название

цена

1-1

Head Assy, Cylinder Front (model K6/k7)

Head Assy, Cylinder Front (model K6/k7)

1-2

Head Assy, Cylin (model K8)

Head Assy, Cylin (model K8)

2

Pin ()

Pin ()

3

Bolt (6x50) ()

Bolt (6x50) ()

4

.bolt (6x55) ()

.bolt (6x55) ()

5

Guide, Valve (os 0.3) (opt)

Guide, Valve (os 0.3) (opt)

6

Gasket, Cylinder Head Cover ()

Gasket, Cylinder Head Cover ()

7

Gasket, Cylinder Head Front ()

Gasket, Cylinder Head Front ()

8

Pin ()

Pin ()

9

Union, Cylinder Head Water ()

Union, Cylinder Head Water ()

10

O Ring (d:2.4, Id:17.8) ()

O Ring (d:2.4, Id:17.8) ()

11

Болт

Болт

12

Болт

Болт

13

Bolt, Stud ()

Bolt, Stud ()

14

Гайка

Гайка

15

Washer (10.5x22x2.3) ()

Washer (10.5x22x2.3) ()

16

Bolt (8x140) ()

Bolt (8x140) ()

17

Bolt (10x155) ()

Bolt (10x155) ()

18

Bolt (10x165) ()

Bolt (10x165) ()

20

Bolt (8x245) ()

Bolt (8x245) ()

21

Болт

Болт

22

Болт

Болт

23

Болт

Болт

26

Washer (8.5x24x1.6) ()

Washer (8.5x24x1.6) ()

27

Cap, Head Cover Lh ()

Cap, Head Cover Lh ()

28

Cap, Head Cover Rh ()

Cap, Head Cover Rh ()

29

Cushion, Head Cover Cap ()

Cushion, Head Cover Cap ()

30

Болт

Болт

31

Sending Unit, Water Temp ()

Sending Unit, Water Temp ()

32-1

Spark Plug (ngk, Dpr8ea-9) ()

Spark Plug (ngk, Dpr8ea-9) ()

32-2

Spark Plug (nd, X24epr-u9) ()

Spark Plug (nd, X24epr-u9) ()

32-3

Spark Plug, Dpr7ea-9 (ngk) (opt)

Spark Plug, Dpr7ea-9 (ngk) (opt)

32-5

Spark Plug, Dpr9ea-9 (ngk) (opt)

Spark Plug, Dpr9ea-9 (ngk) (opt)

32-6

Spark Plug, X27epr-u9 (nd) (opt)

Spark Plug, X27epr-u9 (nd) (opt)

33

Cap, Inspection Intake ()

Cap, Inspection Intake ()

34

Cap, Inspection Exhaust ()

Cap, Inspection Exhaust ()

35

Gasket, Inspection Cap ()

Gasket, Inspection Cap ()

36

Bolt, Thermostat Cover ()

Bolt, Thermostat Cover ()

37

Bolt, Inspection Cap Stud ()

Bolt, Inspection Cap Stud ()

39

Union, Water Outlet ()

Union, Water Outlet ()

40

O Ring, Outlet Union ()

O Ring, Outlet Union ()

41

Cushion, Head Cover Bolt ()

Cushion, Head Cover Bolt ()

42

Plug, Cylinder Head ()

Plug, Cylinder Head ()

43

Bush, Head Cover Bolt ()

Bush, Head Cover Bolt ()

44

Pipe, Intake Front ()

Pipe, Intake Front ()

45

.o Ring, Intake Pipe ()

.o Ring, Intake Pipe ()

46

Screw ()

Screw ()

47

Clamp, Intake Pipe ()

Clamp, Intake Pipe ()
