Rear combination lamp (vs1400k5/k6/k7/k8) для мотоциклов Suzuki (Америка) VS1400GLP Boulevard S83 (2008)

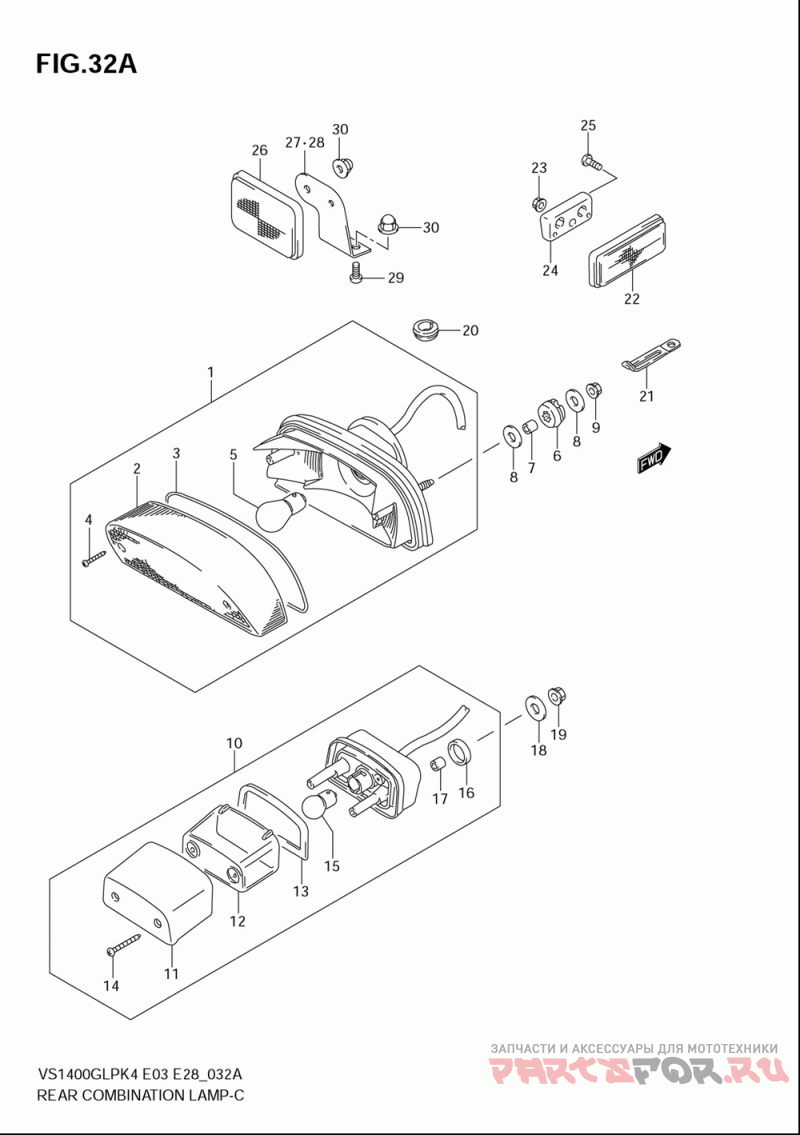

Rear combination lamp (vs1400k5/k6/k7/k8)

Suzuki (Америка) VS1400GLP Boulevard S83

Rear combination lamp (vs1400k5/k6/k7/k8)

oem код

название

цена

35710-38B30

Lamp Assy, Rear Combination ()

.lens ()

.gasket ()

Screw ()

.bulb (12v, 27/8w) ()

09320-09018

Cushion ()

09180-06264

Spacer (6.5x9x10.5) ()

09160-06077

Washer, License ()

10-1

35910-38B30

Lamp Assy, License (model K5/k6)

10-2

35910-38B40

Lamp Assy, License (model K7/k8)

.cover ()

.lens ()

.gasket ()

Винт

.bulb (12v, 7.5w) ()

.cushion ()

.spacer ()

Grommet, Lead Wire ()

09404-06432

.clamp, Sw Leads ()

35970-24D60

Reflex Reflector, Rear Side ()

Гайка

Spacer ()

Screw ()

Reflector Assy, Near ()

35974-38B10

Bracket, Rear Rr, Rh ()

35974-38B20

Bracket, Rear Rr, Lh ()

02142-05107

Screw, Shift Plate ()

08313-20057

Гайка
