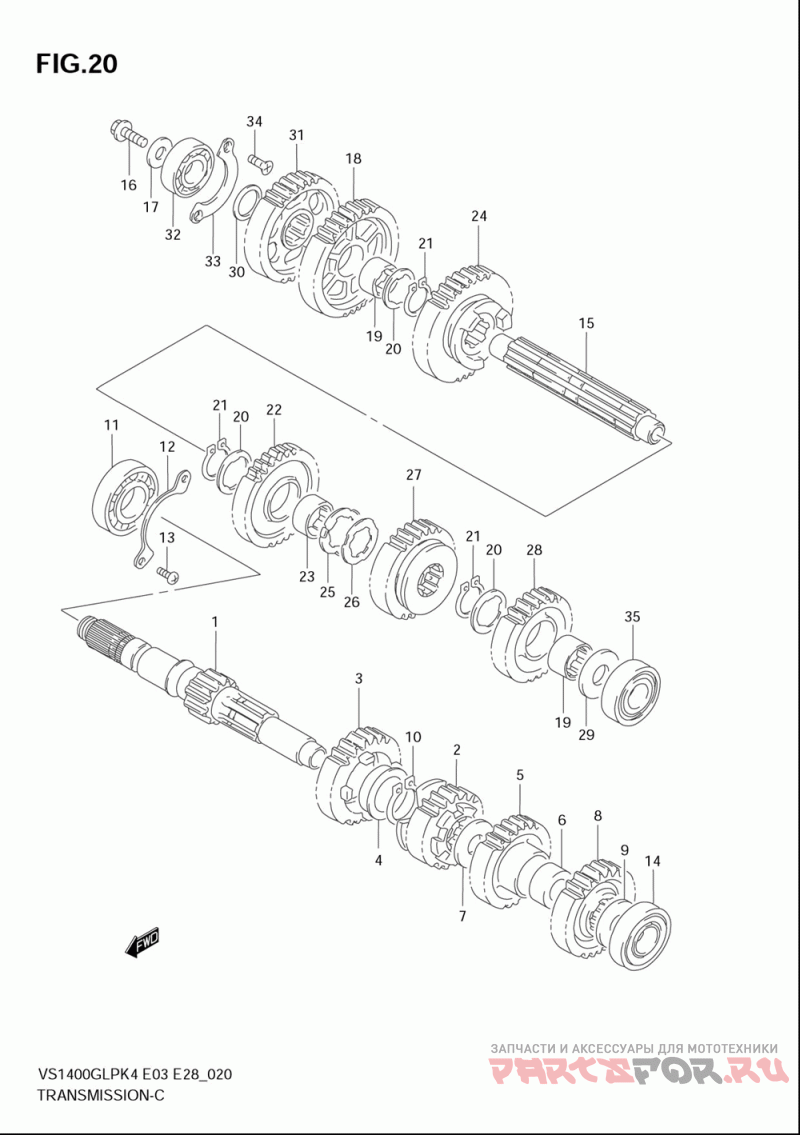

Трансмиссия

Suzuki (Америка) VS1400GLP Boulevard S83

Suzuki (Америка)
#oem кодцена
1
24120-38B10
Countershaft (nt:12) ()
2
24221-38B12
Gear, 2nd Drive (nt:17) ()
3
24231-38B11
Gear, 3rd Drive (nt:21) ()
4
09301-28001
Bush, 3rd Drive Gear ()
5
24241-38B11
Gear, 4th Drive (nt:24) ()
6
24242-38B10
Bush, 4th Drive Gear ()
7
09181-22195
Washer (22x32x1.0) ()
8
24251-38B11
Gear, 5th Drive (nt:25) ()
9
09181-20223
Washer (20x32x1.0) ()
10
08331-3128A
Circlip Idle Drive Gear ()
11
09262-25080
Bearing, Rh (25x62x17) ()
12
24741-38A00
Retainer ()
13
09125-06110
Screw, Shift Cam (6x12) ()
14
09262-20080
Bearing, Cntr, L ()
15
24131-38B20
Drive Shaft ()
16
09103-10112
Болт
17
08211-10305
Шайба
18
24311-38B20
Gear, 1st Driven (nt:36) ()
19
24332-24A00
Bush ()
20
09167-28001
Washer (28.1x38x1.0) ()
22
24321-38B20
Gear, 2nd Driven (nt:31) ()
23
24332-49000
Bush, 2nd Driven Gear ()
24
24331-38B12
Gear, 3rd Driven (nt:28) ()
25
09169-28001
Lock Washer, Rh ()
26
09167-28002
Lock Washer, Lh ()
27
24341-38B12
Gear, 4th Driven (nt:25) ()
28
24351-38B11
Gear, 5th Driven (nt:24) ()
29
08211-20382
Шайба
30
09160-22032
Washer (22x32x3.0) ()
31
24621-38B00
Gear, Overdriving (nt:34) ()
32
09262-22029
Bearing, Rh (22x56x16) ()
33
24741-38401
Retainer ()
34
09126-06011
Винт (м6x12)
