Механизм переключения передач для мотоциклов Suzuki (Америка) VS1400GLP Boulevard S83 (2008)

Москва и регионы России

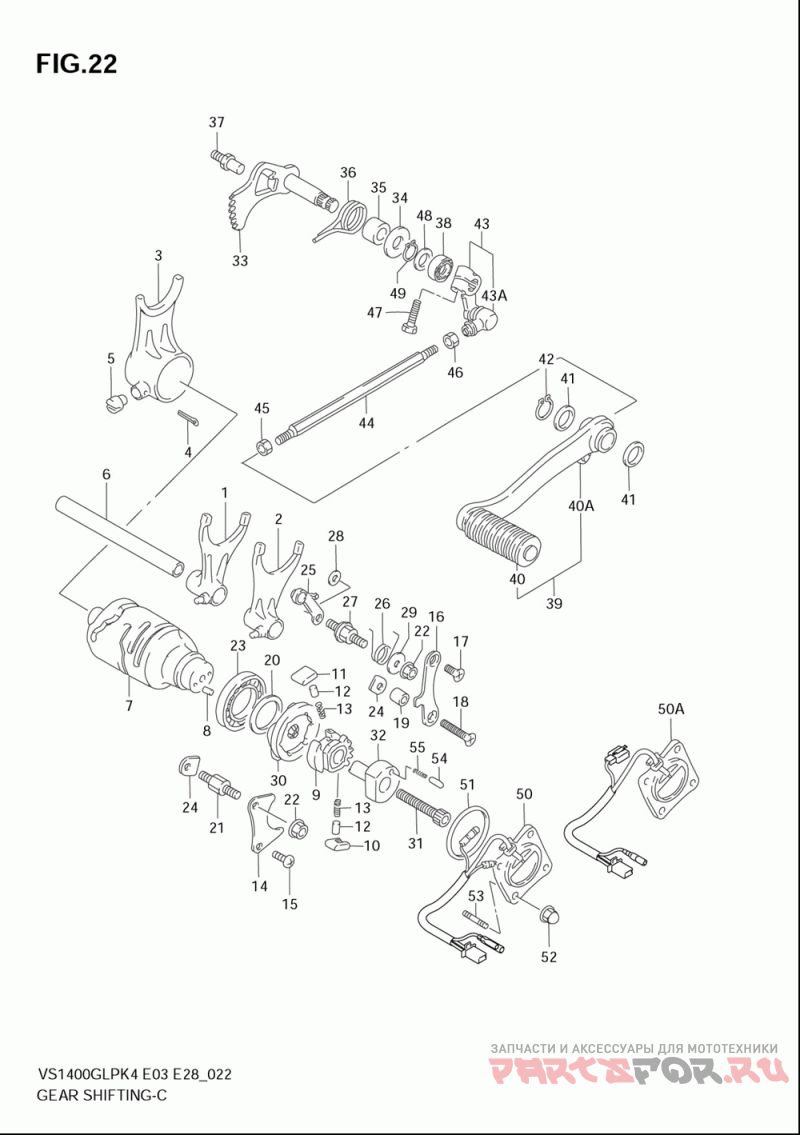

Механизм переключения передач

Suzuki (Америка) VS1400GLP Boulevard S83

Механизм переключения передач

#

oem код

название

цена

1

Fork, Gear Shifting No.1 ()

Fork, Gear Shifting No.1 ()

2

Fork, Gear Shifting No.2 ()

Fork, Gear Shifting No.2 ()

3

Fork, Gear Shifting No.3 ()

Fork, Gear Shifting No.3 ()

4-1

Pin (model K4/k5/k6)

Pin (model K4/k5/k6)

5

Pin ()

Pin ()

6

Shaft, Gear Shift Fork No.1 ()

Shaft, Gear Shift Fork No.1 ()

7

Cam, Gear Shifting ()

Cam, Gear Shifting ()

8

Pin ()

Pin ()

9

Gear, Gear Shift Cam Driven ()

Gear, Gear Shift Cam Driven ()

10

Pawl, Gear Shift, No.1 ()

Pawl, Gear Shift, No.1 ()

11

Pawl, Gear Shift, No.2 ()

Pawl, Gear Shift, No.2 ()

12

Pin, Shift Pole (5x8) ()

Pin, Shift Pole (5x8) ()

13

Spring, Shift Pawl Return ()

Spring, Shift Pawl Return ()

14

Lifter, Pawl ()

Lifter, Pawl ()

15

Screw, Shift Cam (6x12) ()

Screw, Shift Cam (6x12) ()

16

Guide, Cam ()

Guide, Cam ()

17

Винт (м6x12)

Винт (м6x12)

19

Spacer (6.5x10x14) ()

Spacer (6.5x10x14) ()

20

Washer (25x32x3) ()

Washer (25x32x3) ()

21

Boss, Shift Pawl Lifter ()

Boss, Shift Pawl Lifter ()

22

Гайка

Гайка

23

Bearing (25x47x8) ()

Bearing (25x47x8) ()

24

Retainer, Shift Cam Bearing ()

Retainer, Shift Cam Bearing ()

25

Stopper, Cam ()

Stopper, Cam ()

26

Spring ()

Spring ()

27

Support, Cam Stopper Arm ()

Support, Cam Stopper Arm ()

28

Шайба

Шайба

29

.washer (6.5x18x2) ()

.washer (6.5x18x2) ()

30

Plate, Stopper ()

Plate, Stopper ()

31

Bolt (6x50) ()

Bolt (6x50) ()

32

Holder, Neutral Switch ()

Holder, Neutral Switch ()

33

Shaft, Gear Shifting ()

Shaft, Gear Shifting ()

34

Washer (12.5x28x1.2) ()

Washer (12.5x28x1.2) ()

35

Spacer (12x20x15.3) ()

Spacer (12x20x15.3) ()

36

Spring ()

Spring ()

37

Stopper, Gear Shift Arm ()

Stopper, Gear Shift Arm ()

38

Oil Seal (12x22x9) ()

Oil Seal (12x22x9) ()

39

Lever Assy, Gear Shifting ()

Lever Assy, Gear Shifting ()

40

.rubber, Gear Shift ()

.rubber, Gear Shift ()

40A

.cover, Dust ()

.cover, Dust ()

41

Washer (14.5x22x1) ()

Washer (14.5x22x1) ()

42

Circlip ()

Circlip ()

43

Arm, Gear Shift Link ()

Arm, Gear Shift Link ()

44

Rod ()

Rod ()

45

Гайка

Гайка

46

.nut ()

.nut ()

47

Болт

Болт

48

Washer, Oil Pump Driven Gear ()

Washer, Oil Pump Driven Gear ()

49

Circlip, Gear Shift Lever ()

Circlip, Gear Shift Lever ()

50

Base Assy, Neut Sw (model K4/k5/k6)

Base Assy, Neut Sw (model K4/k5/k6)

50A

Base Assy, Neut Sw (model K7/k8)

Base Assy, Neut Sw (model K7/k8)

51

O Ring (d:2.4, Id:35.5) ()

O Ring (d:2.4, Id:35.5) ()

53

Stud Bolt ()

Stud Bolt ()

54

Contact, Switch ()

Contact, Switch ()

55

Spring ()

Spring ()
