Головка цилиндров (передняя) для мотоциклов Suzuki (Америка) VS1400GLP Boulevard S83 (2008)

Москва и регионы России

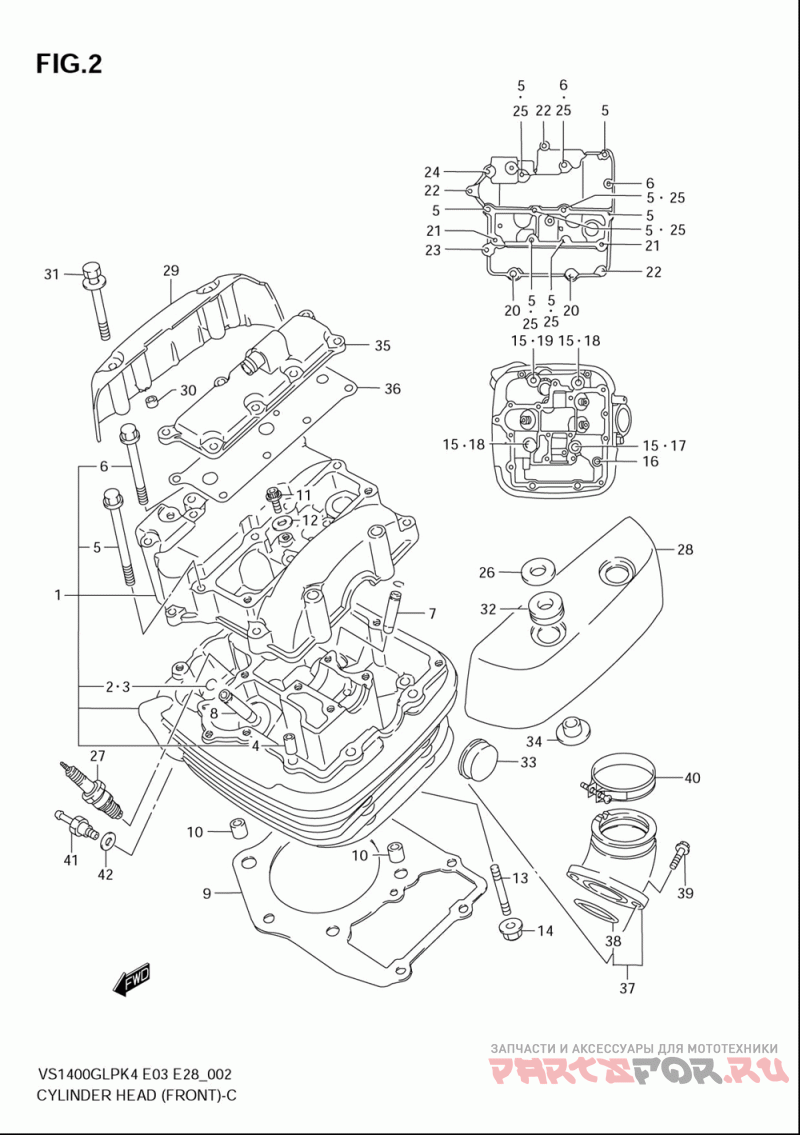

Головка цилиндров (передняя)

Suzuki (Америка) VS1400GLP Boulevard S83

Головка цилиндров (передняя)

#

oem код

название

цена

1-1

Head Assy, Cylinder Front (model K4)

Head Assy, Cylinder Front (model K4)

1-2

Head Assy, Cylinder Front (model K5/k6/k7/k8)

Head Assy, Cylinder Front (model K5/k6/k7/k8)

2

.snap Ring ()

.snap Ring ()

3

.ring, Valve Guide ()

.ring, Valve Guide ()

4

Pin ()

Pin ()

5

Bolt (6x60) ()

Bolt (6x60) ()

6

.bolt (6x55) ()

.bolt (6x55) ()

7

Guide, Valve Intake (os:0.3) (opt)

Guide, Valve Intake (os:0.3) (opt)

8

Guide, Valve (os:0.3) (opt)

Guide, Valve (os:0.3) (opt)

9

Gasket, Cylinder Head Front ()

Gasket, Cylinder Head Front ()

10

Pin ()

Pin ()

11

Болт

Болт

12

Gasket, Tensioner Adjuster ()

Gasket, Tensioner Adjuster ()

13

Stud Bolt (8x30) ()

Stud Bolt (8x30) ()

14

Гайка

Гайка

15

Washer (10.5x22x2.3) ()

Washer (10.5x22x2.3) ()

16

Bolt (8x70) ()

Bolt (8x70) ()

17

Bolt (10x180) ()

Bolt (10x180) ()

18

Bolt (10x190) ()

Bolt (10x190) ()

19

Bolt (10x200) ()

Bolt (10x200) ()

20

Bolt (8x268) ()

Bolt (8x268) ()

21

Болт

Болт

22

Болт

Болт

23

Болт

Болт

24

Болт

Болт

25

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

26

Washer (8.5x24x1.6) ()

Washer (8.5x24x1.6) ()

27-1

Spark Plug (ngk, Dpr8ea-9) ()

Spark Plug (ngk, Dpr8ea-9) ()

27-2

Spark Plug (nd, X24epr-u9) ()

Spark Plug (nd, X24epr-u9) ()

27-3

Spark Plug, Dpr7ea-9 (ngk) (opt)

Spark Plug, Dpr7ea-9 (ngk) (opt)

27-5

Spark Plug, Dpr9ea-9 (ngk) (opt)

Spark Plug, Dpr9ea-9 (ngk) (opt)

27-6

Spark Plug, X27epr-u9 (nd) (opt)

Spark Plug, X27epr-u9 (nd) (opt)

28

Cap, Head Cover Lh ()

Cap, Head Cover Lh ()

29

Cap, Head Cover Rh ()

Cap, Head Cover Rh ()

30

Cushion, Head Cover Cap ()

Cushion, Head Cover Cap ()

31

Болт

Болт

32

Cushion, Head Cover Bolt ()

Cushion, Head Cover Bolt ()

33

Plug, Cylinder Head ()

Plug, Cylinder Head ()

34

Bush, Head Cover Bolt ()

Bush, Head Cover Bolt ()

35

Cover, Breather ()

Cover, Breather ()

36

11177-38B01-H17

Gasket, Breather Cover ()

Gasket, Breather Cover ()

37

Pipe, Intake Front ()

Pipe, Intake Front ()

38

.o Ring ()

.o Ring ()

39

Болт

Болт

40

Clamp, Intake Pipe ()

Clamp, Intake Pipe ()

41

Union, Intake Port ()

Union, Intake Port ()
