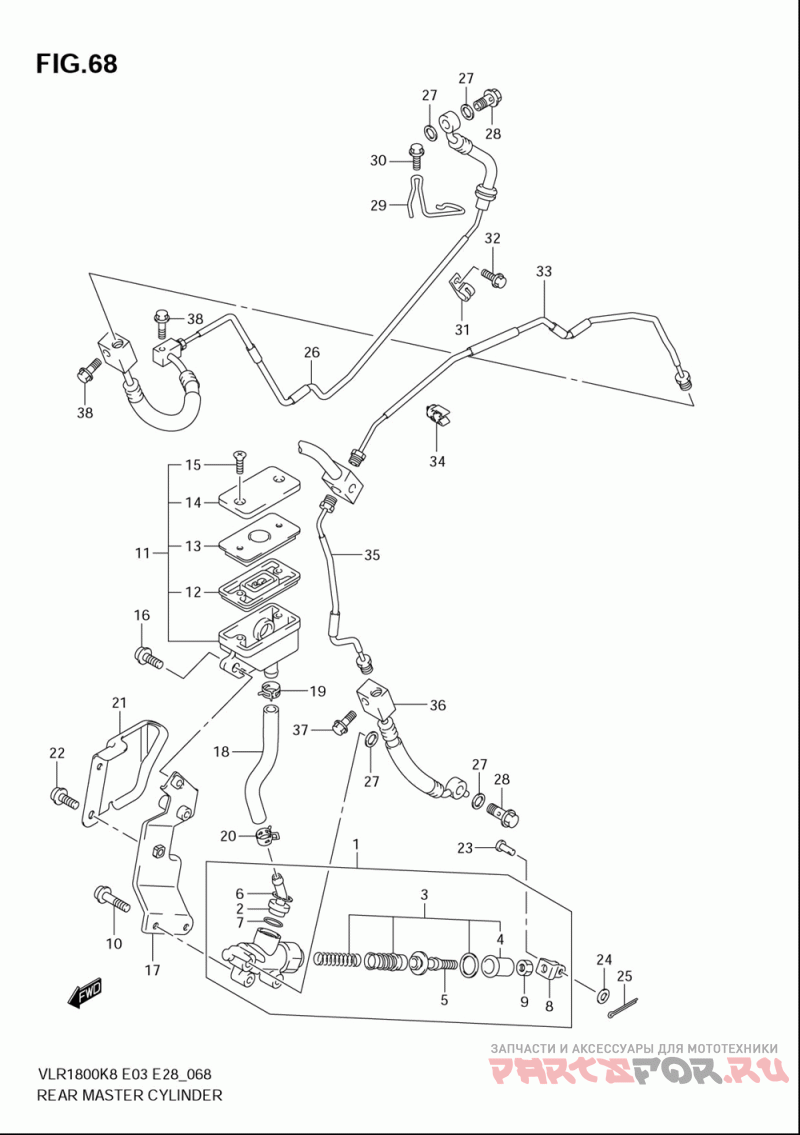

Задний торм цилиндр для мотоциклов Suzuki (Америка) VLR1800 Boulevard C109R (2008)

Москва и регионы России

Задний торм цилиндр

Suzuki (Америка) VLR1800 Boulevard C109R

Задний торм цилиндр

#

oem код

название

цена

1

Cylinder Assy, R ()

Cylinder Assy, R ()

2

Connector ()

Connector ()

3

Piston & Cup Se ()

Piston & Cup Se ()

4

..boot ()

..boot ()

5

Rod, Push ()

Rod, Push ()

6

.circlip ()

.circlip ()

7

.o Ring ()

.o Ring ()

8

Yoke ()

Yoke ()

9

.nut ()

.nut ()

10

Болт

Болт

11

Tank Assy, Rear ()

Tank Assy, Rear ()

12

.diaphragm ()

.diaphragm ()

13

.plate, Diaphragm ()

.plate, Diaphragm ()

14

.cap ()

.cap ()

15

Винт

Винт

16

Болт

Болт

17

Bracket, Rr Rsvr ()

Bracket, Rr Rsvr ()

18

Hose, Rr Reservo ()

Hose, Rr Reservo ()

19

Clip ()

Clip ()

20

Clip ()

Clip ()

21

Cover, Rr Reserv ()

Cover, Rr Reserv ()

23

.shaft, Shallow Drive Arm ()

.shaft, Shallow Drive Arm ()

24

Шайба

Шайба

25

Cotter Pin ()

Cotter Pin ()

26

Hose Assy, Rr Br ()

Hose Assy, Rr Br ()

27

Washer (10x15x1.5) ()

Washer (10x15x1.5) ()

28

Bolt, Fr Macter Cylinder ()

Bolt, Fr Macter Cylinder ()

29

Guide, Rr Brake ()

Guide, Rr Brake ()

30

Болт

Болт

31

()

()

32

Bolt, Push Rod Guide ()

Bolt, Push Rod Guide ()

33

Pipe, Rear Brake ()

Pipe, Rear Brake ()

35

Pipe, Brake ()

Pipe, Brake ()

36

Hose, Rear Brake ()

Hose, Rear Brake ()

37

Bolt, Rr Brake Pipe Clamp ()

Bolt, Rr Brake Pipe Clamp ()

38

Bolt, Belt Cooling Duct ()

Bolt, Belt Cooling Duct ()
