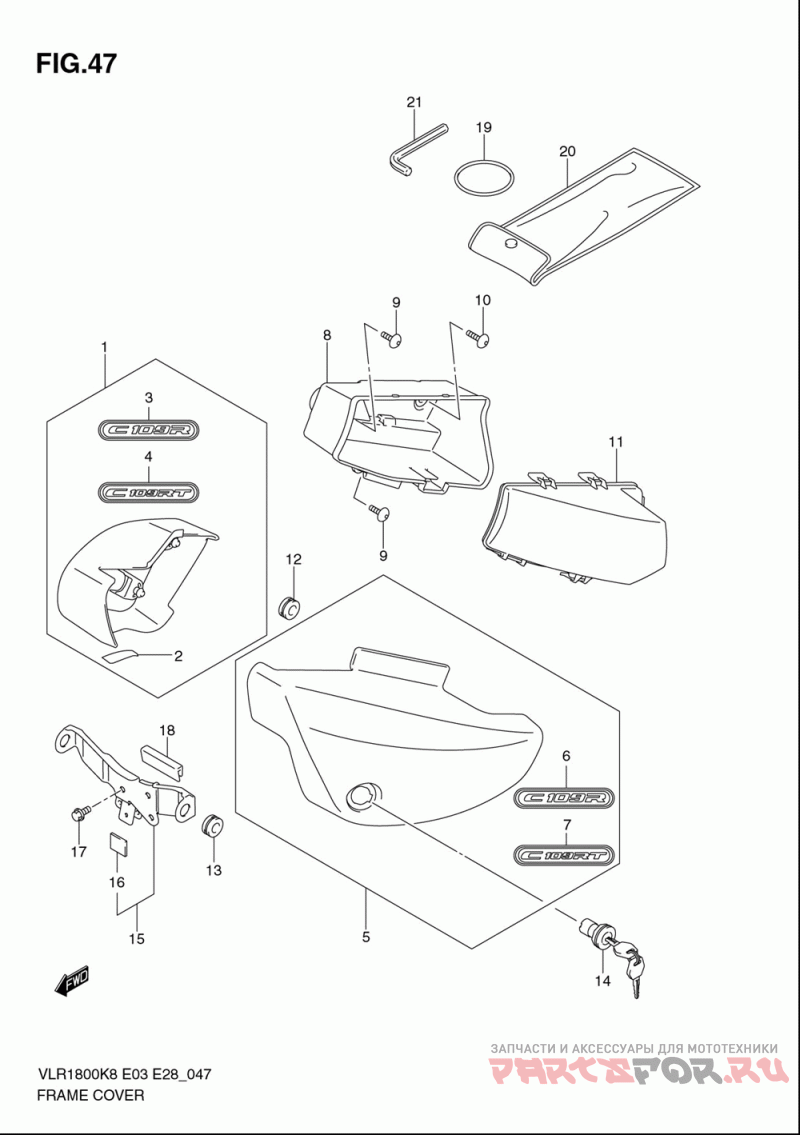

Обтекатель рамы для мотоциклов Suzuki (Америка) VLR1800 Boulevard C109R (2008)

Обтекатель рамы

Suzuki (Америка) VLR1800 Boulevard C109R

oem код

название

цена

1-1

47110-22H00-YAY

Cover Comp, Fram (vlr1800)

1-2

47110-22H00-YMK

Cover, Frame, R(r (vlr1800)

1-3

47110-22HA0-YAY

Cover Comp, Fram (vlr1800t For Fke)

1-4

47110-22HA0-YKZ

Cover Comp, Fram (vlr1800t For Fkf)

47166-22H00

Shield, Frame Co ()

68131-22H00

Emblem, "c109r" (vlr1800)

68131-22HA0

Emblem, "c109rt" (vlr1800t)

5-1

47210-22H00-YAY

Cover Comp, Fram (vlr1800)

5-2

47210-22H00-YMK

Cover, Frame, L(r (vlr1800)

5-3

47210-22HA0-YAY

Cover Comp, Fram (vlr1800t For Fke)

5-4

47210-22HA0-YKZ

Cover Comp, Fram (vlr1800t For Fkf)

Body, Luggage Bo ()

Винт

Screw, 6x10 ()

Lid, Luggage Box ()

Cushion, Brace ()

Cushion ()

Lock Set, Frame ()

Bracket Comp, Fr ()

.cushion ()

Болт

Molding ()

Band, Fi Control (d:3.5,id:61 ()

09800-21055

Tool Assy ()

21-1

09816-00050

Hexagon Spanner, 6 ()

21-2

09816-00059

Spanner, Hexagon 5 ()
