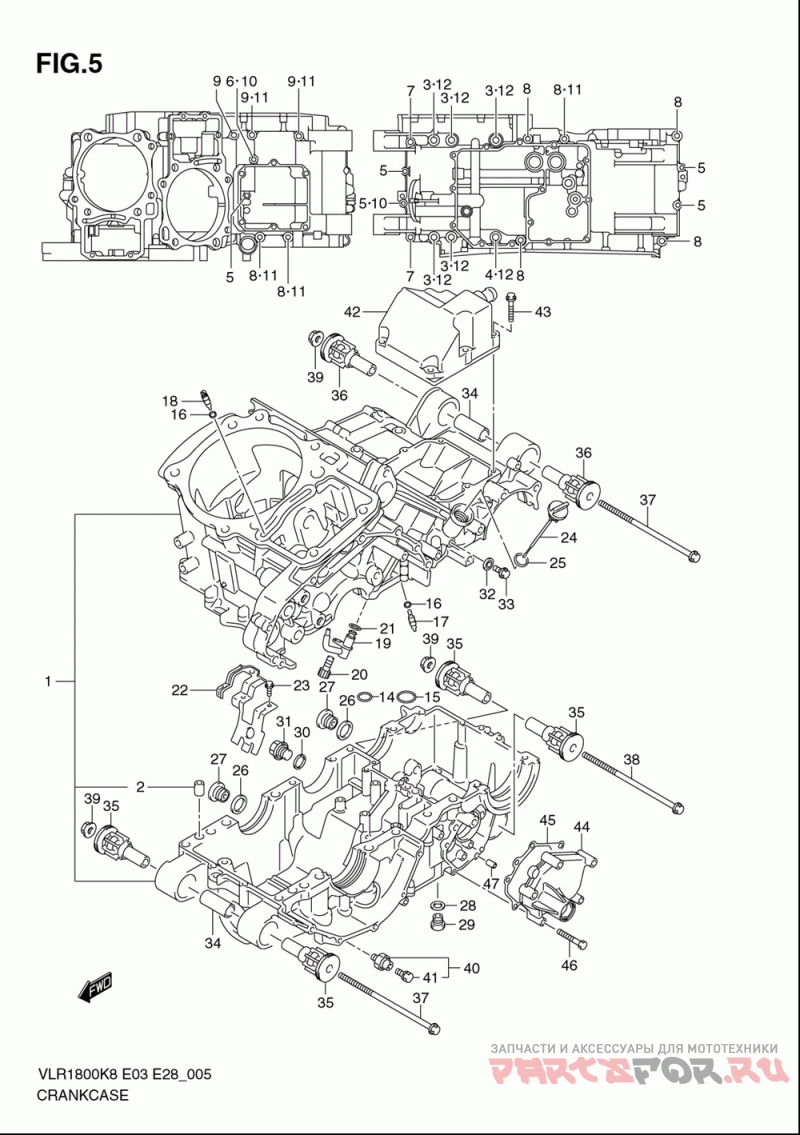

Картер

Suzuki (Америка) VLR1800 Boulevard C109R

Suzuki (Америка)
#oem кодцена
1
11300-48862
Crankcase Assy ()
2
11319-33E50
Pin, Rr Swgarm Joint ()
3
09103-10408
Bolt, 10x100 ()
4
09103-10406
.bolt (10x115) ()
5
01547-0645B
Болт
6
01547-0670B
Болт
8
07130-0865B
Болт
10
09168-06023
Washer, Oil Gallery Exhaust ()
11
09168-08016
Gasket (8.2x14x1.0) ()
12
09168-10031
.gasket, Crankcase Bolt ()
13-1
12228-48G00-0A0
.washer, Crank Thrust (red) (see Illustration Onfig.8(b-10))
13-2
12228-48G00-0B0
.washer, Crank Thrust (black) ()
13-3
12228-48G00-0C0
.washer, Crank Thrust (blue) ()
13-4
12228-48G00-0D0
.washer, Crank Thrust (green) ()
13-5
12228-48G00-0E0
.washer, Crank Thrust (yellow ()
13-6
12228-48G00-0F0
.washer, Crank Thrust (white) ()
14
09280-08012
O Ring ()
15
09280-12009
O Ring, Crankcase ()
16
09280-04004
O Ring, Oil Gallery Jet ()
17
09493-80005
Jet, Oil Gallery ()
19
11390-48G00
Jet, Piston Cooling ()
20
09106-06075
Болт
21
09280-05007
O Ring ()
22
11521-48G00
Plate, Oil Separator ()
23
01547-0612A
Bolt, Push Rod Guide ()
24
11971-48G01
Gauge, Oil Level ()
25
09280-17003
O Ring, Oil Filler Cap ()
26
09168-16002
Gasket (16x22x2.0) ()
27
09248-16012
Plug, T/m Breather ()
28
09168-14004
.gasket (14.1x18x1.5) ()
29
09248-14012
Plug, Cylinder Head ()
30
09168-12002
Gasket, Oil Level Plug ()
31
09247-12006
Plug, Oil Level ()
34
11611-48G00
Spacer ()
35
11652-10G50
Bush, Eng Mtg ()
36
11652-10G40
Bush, Eng Mtg ()
37
09103-10041-A05
Bolt (10x215) ()
38
09103-10118
Bolt (l:195) ()
39
08319-3110A
Nut, Upper ()
40
37820-33D10
Switch Assy, Oil Pressure ()
41
37822-33D00
.bolt ()
42
11330-48G00
Cover, Breather ()
43
01547-0630A
Bolt, Magneto Cover ()
44
11371-48G00
Cover, Gear Shift ()
45
11485-48G00
Gasket ()
46
01547-0645A
Болт
47
04211-09149
Dowel Pin ()
1
11300-48863
Crankcase Assy ()
