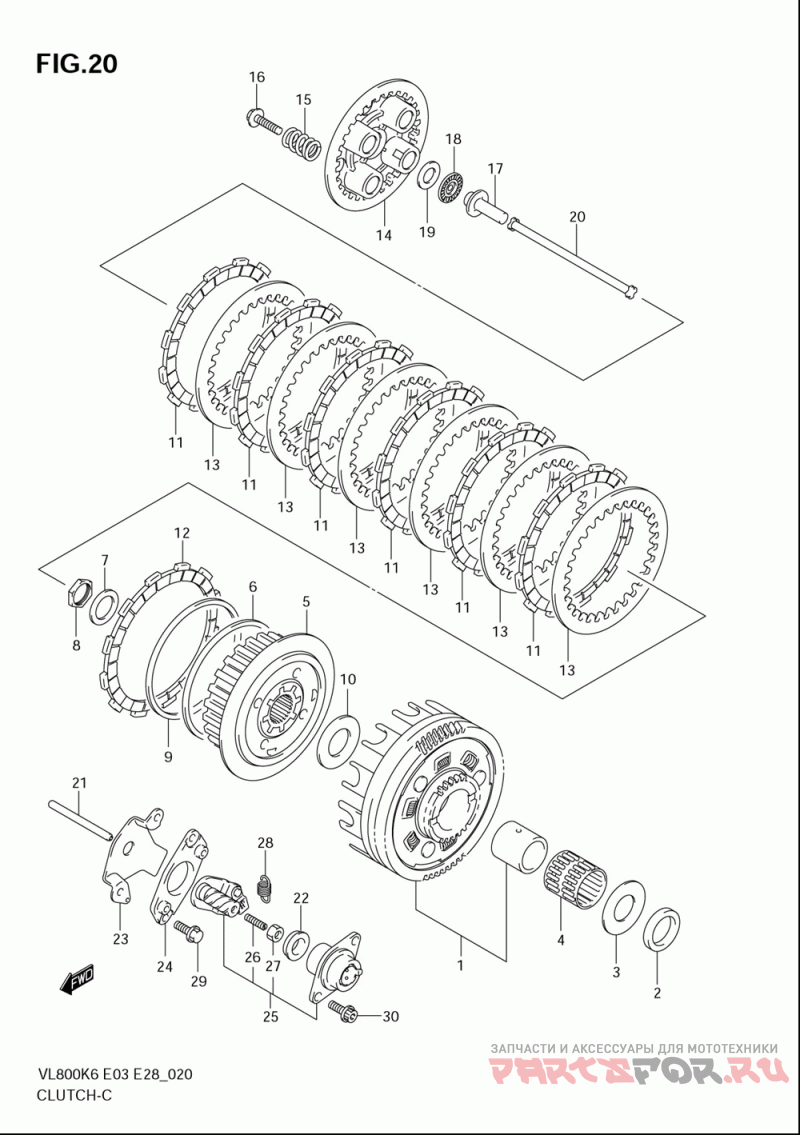

Сцепление для мотоциклов Suzuki (Америка) VL800 Boulevard C50 (2008)

Сцепление

Suzuki (Америка) VL800 Boulevard C50

oem код

название

цена

21200-38840

Gear, Primary Driven (nt:71) ()

09180-25077

Spacer (25x38x6.5) ()

09160-25055

Washer (25x50x2.5) ()

09263-35017

Bearing (35x40x35.8) ()

Hub, Sleeve ()

Seat, Wave Washer ()

Шайба

Гайка

Washer (110.5x119x0.9) ()

21441-37400

Plate, Drive ()

21442-37401

Plate, Clutch Drive No.2 ()

Plate, Driven ()

Disc, Pressure ()

Spring, Clutch ()

Bolt (6x30) ()

Piece, Clutch Push ()

09263-15003

Bearing (15x28x2) ()

09160-15045

Washer (15.5x28x1) ()

23110-27A00

Rod, Clutch Push, Rh ()

23111-45C00

Rod, Push Lh ()

09285-06017

Oil Seal (6x34x11.0) ()

23117-45C00

Retainer ()

23130-45C00

Bracket, Release Screw ()

23200-41F00

Screw Assy, Clutch Release ()

09134-06010

Винт

08310-00067

.nut ()

09443-09050

Spring, Release Arm ()

07120-0620B

Болт

07120-0616B

Болт
