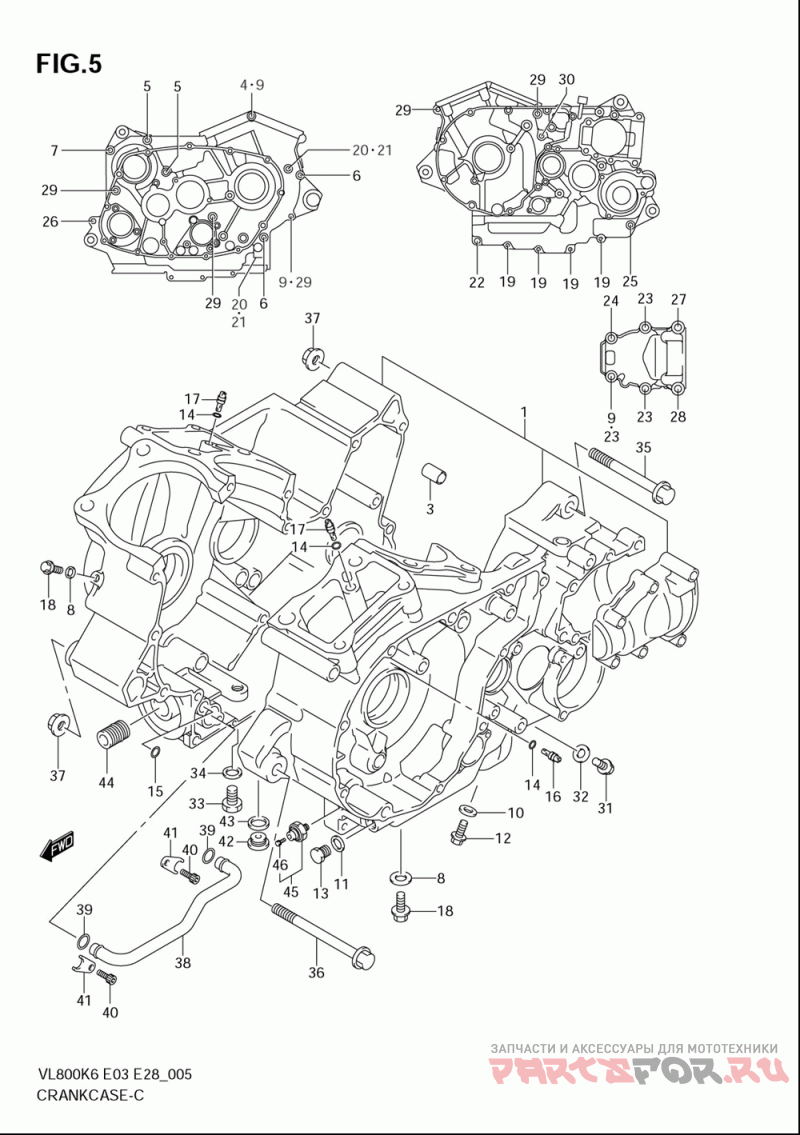

Картер

Suzuki (Америка) VL800 Boulevard C50

Suzuki (Америка)
#oem кодцена
1
11302-39821
Crankcase Set ()
2-1
09160-48001
.washer, Crank Thrust (t:1.94 (not Shown)
2-2
09160-48002
.washer, Crank Thrust (t:1.96 (not Shown)
2-3
09160-48003
.washer, Crank Thrust (t:1.99 (not Shown)
2-4
09160-48004
.washer, Crank Thrust (t:2.01 (not Shown)
2-5
09160-48005
.washer, Crank Thrust (t:2.04 (not Shown)
2-6
09160-48006
.washer, Crank Thrust (t:2.06 (not Shown)
2-7
09160-48007
.washer, Crank Thrust (t:2.09 (not Shown)
2-8
09160-48008
.washer, Crank Thrust (t:2.11 (not Shown)
2-9
09160-48009
.washer, Crank Thrust (t:2.14 (not Shown)
2-10
09160-48010
.washer, Crank Thrust (t:2.16 (not Shown)
3
09206-11007
.pin (11x20) ()
4
09103-08405
.bolt (l:160) ()
5
09103-08406
.bolt (l:120) ()
6
09103-08179
.bolt (l:105) ()
7
09103-08164
.bolt (l:95) ()
8
09168-06023
Washer, Oil Gallery Exhaust ()
9
09168-08016
Gasket (8.2x14x1.0) ()
10
09168-10002
Gasket, Oil Gallery Plug ()
11
09168-14004
.gasket (14.1x18x1.5) ()
12
09247-10008
Plug, Oil Gallery ()
13
09247-14026
Plug, Oil Drain ()
14
09280-04004
O Ring, Oil Gallery Jet ()
15
09280-12009
O Ring, Crankcase ()
16
09493-20014
Jet, Oil Gallery Mission ()
17
09493-28010
Jet, Oil Gall Cyl Head ()
18
01550-0610B
Болт
20
09103-08407
Plug (8x12) ()
22
01550-0835B
Болт
23
01550-0840B
Болт
24
01550-0850B
Болт
25
01550-0855B
Болт
29
09103-08105
.bolt (l:95) ()
33
09247-12106
.plug ()
34
09168-12002
Gasket, Oil Level Plug ()
35
09103-10142
Bolt (l:135) ()
36
09103-10278
Bolt (10x160) ()
37
09159-10113
Гайка
38
11451-38A00
Pipe, Oil Gallery ()
39
09280-15008
O Ring (d:3.1, Id:14.8) ()
40
09106-06075
Болт
41
11461-38A00
()
42
09248-16013
Plug, Oil Gallery ()
43
09168-16002
Gasket (16x22x2.0) ()
44
16591-06B01
Union, Oil Filter Stand ()
45
37820-33D10
Switch Assy, Oil Pressure ()
46
37822-33D00
.bolt ()
