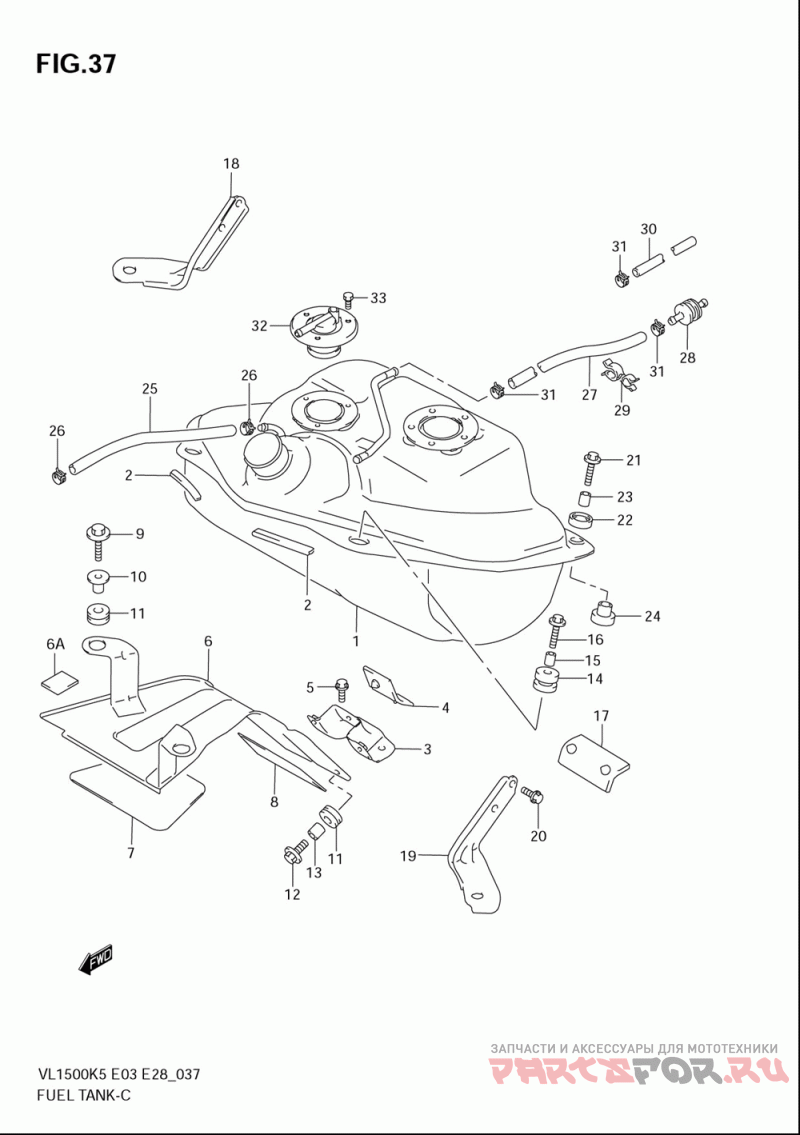

Топливный бак для мотоциклов Suzuki (Америка) VL1500 Boulevard C90 (2008)

Топливный бак

Suzuki (Америка) VL1500 Boulevard C90

oem код

название

цена

Tank, Fuel ()

Molding, Cover ()

Bracket, Front ()

Болт

Cover, Fuel Tank Front ()

61544-94500

.cushion ()

44267-10F00

Shield, Cover Upper ()

44268-10F00

Shield, Cover Lower ()

Bolt, Cover Upper ()

Washer, Upper ()

Cushion ()

Болт

Spacer (6.1x8x9.5) ()

44512-10F00

Cushion, Fuel T ()

09180-06351

Spacer, 6.5x9.1x ()

16-1

09116-06172

Bolt (model K5/k6/k7)

16-2

09116-06214

Bolt (model K8)

44541-10F00

Cushion, Rear Center ()

Bracket, Rear Rh ()

Bracket, Rear Lh ()

Cushion, Upper ()

Spacer ()

Cushion, Lower ()

Hose, Air Vent (l:600->190) ()

09401-15404

.clip ()

27-1

09355-54116-600

Hose, Valve & Canister (model K5/k6/k7)

85451-75100

Valve, Check ()

09408-00140

Clamp ()

09401-10409

Clip ()

32-1

89485-65D00

Valve, Fuel Cut (model K5/k6/k7)

32-2

89480-52DA0

Valve, Fuel Cut (model K8)

01570-0510B

Болт
