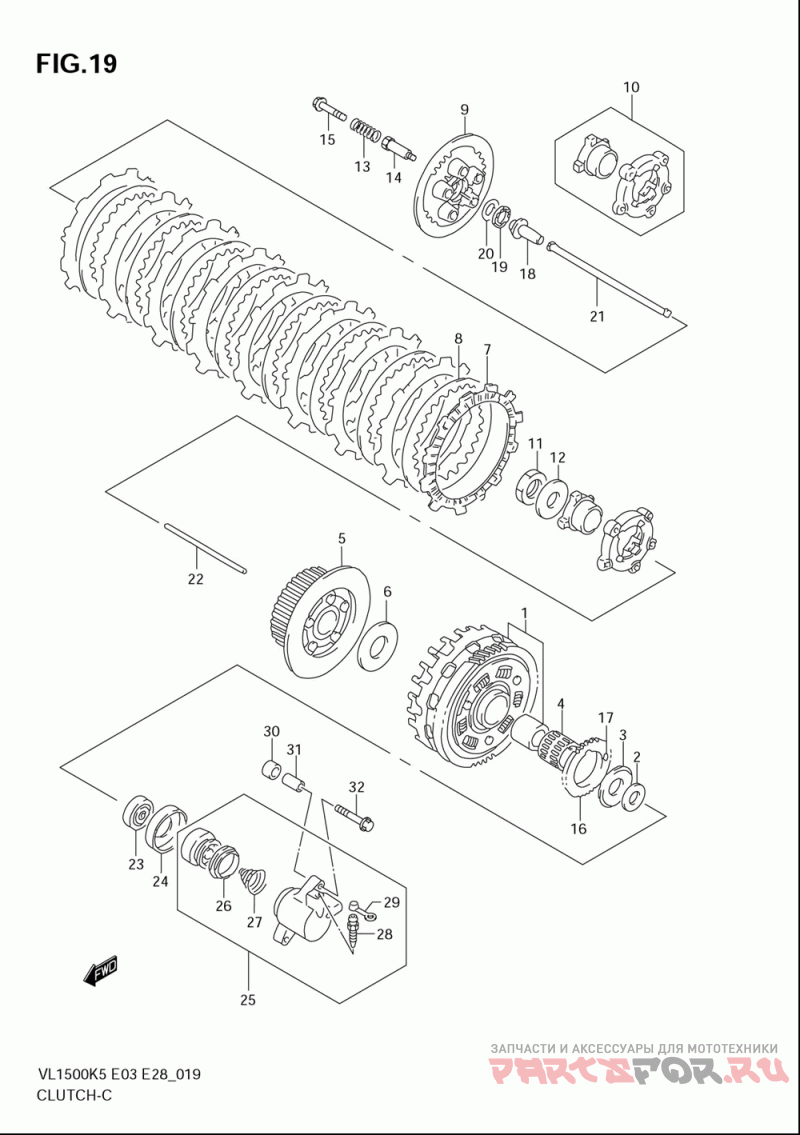

Сцепление для мотоциклов Suzuki (Америка) VL1500 Boulevard C90 (2008)

Сцепление

Suzuki (Америка) VL1500 Boulevard C90

oem код

название

цена

21200-10810

Gear, Primary Driven (nt:76) ()

09160-25066

Washer, Inner (25x38x2.5) ()

09160-25037

Washer (25x54x2.5) ()

09263-35017

Bearing (35x40x35.8) ()

21410-10F00

Hub, Sleeve ()

09160-25056

Washer (25x50x25) ()

21441-31D20

Plate, Clutch Drive ()

21451-44B00

Plate, Driven, No.1 ()

21462-10F00

Disc, Clutch Pressure ()

21610-10F00

Cam Set, Clutch ()

09159-24010

Nut, Clutch Sleeve Hub ()

09164-24006

Washer (24.2x35x2) ()

21413-10F10

Spring, Clutch ()

21411-02F00

Bolt, Clutch Spring Sprt ()

21482-13E00

Bolt, Clutch Spring ()

16321-38B00

Gear, Oil Pump Drive (nt:40) ()

09261-06002

Roller (od:6, L:6) ()

23121-38B00

Piece, Push ()

09263-15003

Bearing (15x28x2) ()

09160-15045

Washer (15.5x28x1) ()

23110-38B00

Rod, Push Rh ()

23111-24A01

Rod, Clutch Push Lh ()

09285-06017

Oil Seal (6x34x11.0) ()

23117-38A00

Retainer ()

23160-10F00

Cylinder, Clutch Release ()

.cup ()

Пружина

.bleeder ()

.cap, Bleeder ()

Spacer ()

Pin ()
