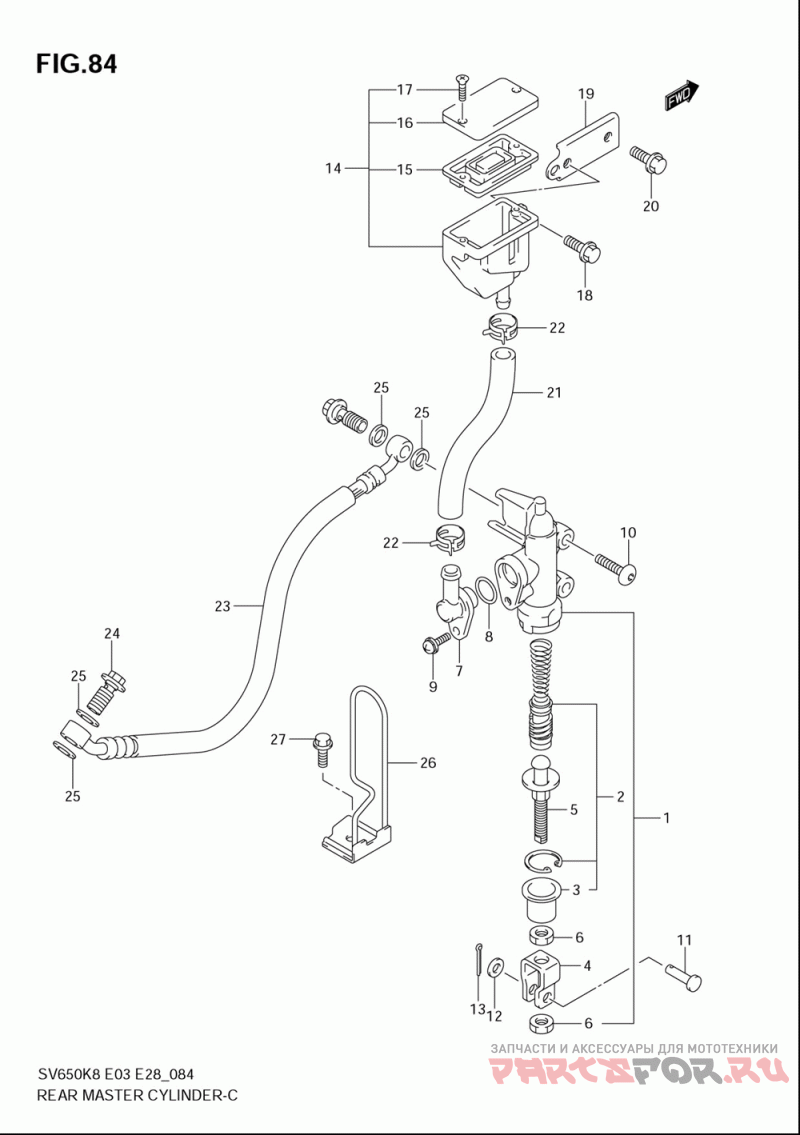

Rear master cylinder (sv650k8/sk8) для мотоциклов Suzuki (Америка) SV650 (2008)

Rear master cylinder (sv650k8/sk8)

Suzuki (Америка) SV650

oem код

название

цена

69600-16G00

Cylinder Assy, Rear Master ()

.piston/cup Set ()

..boot ()

.yoke ()

.rod, Push ()

.nut ()

.connector ()

.o Ring ()

Винт

Screw, Rear ()

.shaft, Shallow Drive Arm ()

08322-0106B

Washer ()

04111-2015A

Cotter Pin ()

69740-01D02

Tank Assy, Rear Reservoir ()

.diaphragm ()

.cap ()

Винт

Bolt, Oil Gallery Exhaust ()

69750-16G10

Bracket, Rr Reservoir Tank ()

01550-0616A

Болт

69731-16G20

Hose, Reservoir Tank ()

09401-13417

Clip ()

23-1

69480-16G30

Hose, Rear Brake (sv650k8)

23-2

69480-17G10

(sv650sk8)

09360-10062

Bolt, Fr Macter Cylinder ()

09161-10009

Washer (10x15x1.5) ()

69260-16G00

Guide, Rr Brake Hose No.1 ()

01547-0616B

Болт
