Топливный бак для мотоциклов Suzuki (Америка) SV650 (2008)

Москва и регионы России

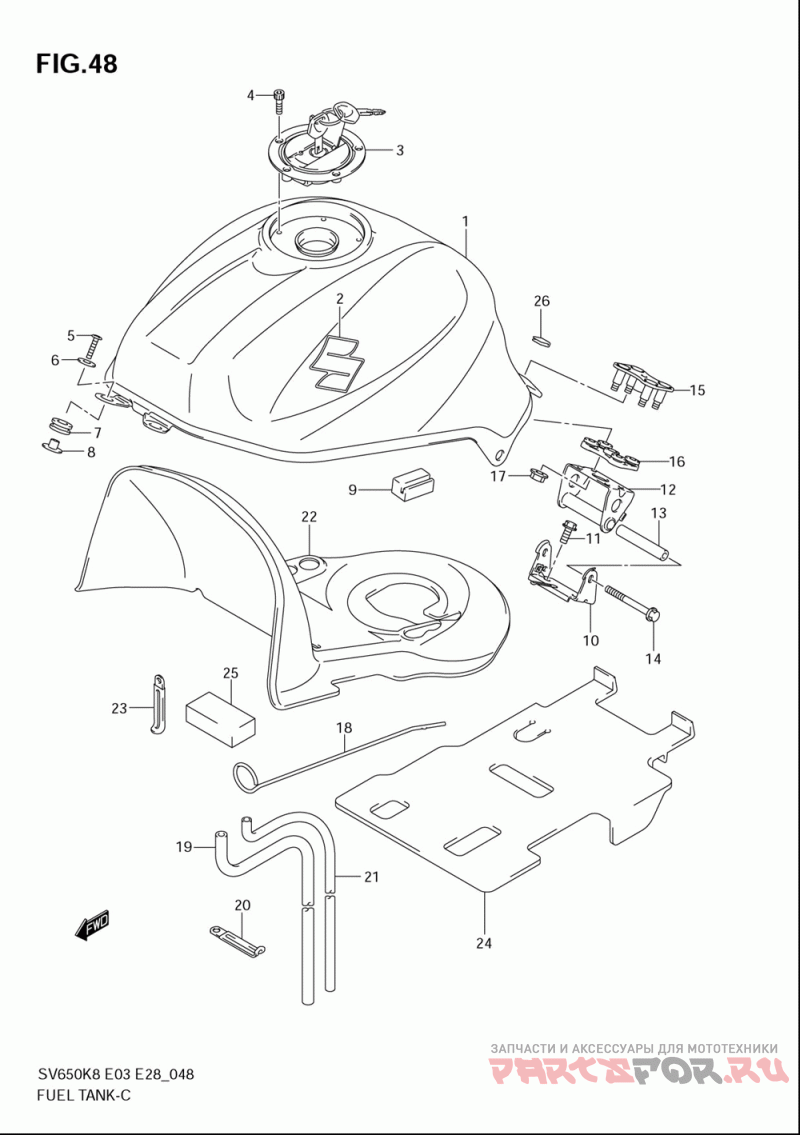

Топливный бак

Suzuki (Америка) SV650

Топливный бак

#

oem код

название

цена

1-1

44100-16G60-YAY

Tank Assy, Fuel (black) (e3,e28)

Tank Assy, Fuel (black) (e3,e28)

1-2

44100-16G60-YKZ

Tank Assy, Fuel (e3, E28)

Tank Assy, Fuel (e3, E28)

1-3

44100-16G60-YLF

Tank Assy, Fuel( (e3, E28)

Tank Assy, Fuel( (e3, E28)

1-5

44100-16G81-YAY

Tank Assy, Fuel (black) (e33)

Tank Assy, Fuel (black) (e33)

1-6

44100-16G81-YKZ

Tank Assy, Fuel( (e33)

Tank Assy, Fuel( (e33)

1-7

44100-16G81-YLF

Tank Assy, Fuel( (e33)

Tank Assy, Fuel( (e33)

2

Emblem ()

Emblem ()

3-1

Cap Set, Fuel Tank (e3,e28)

Cap Set, Fuel Tank (e3,e28)

3-2

Cap Set, Fuel Tank (e33)

Cap Set, Fuel Tank (e33)

4

Болт

Болт

5

Screw, Front ()

Screw, Front ()

6

Шайба

Шайба

7

Cushion ()

Cushion ()

8

Spacer ()

Spacer ()

9

Cushion, Side ()

Cushion, Side ()

10

Bracket, Rear ()

Bracket, Rear ()

11

Болт

Болт

12

Bracket, Center ()

Bracket, Center ()

13

Spacer, Joint ()

Spacer, Joint ()

14

Bolt, Joint ()

Bolt, Joint ()

15

Bracket, Rear Upper ()

Bracket, Rear Upper ()

16

Cushion ()

Cushion ()

17

Гайка

Гайка

18

Stay, Fuel Tank ()

Stay, Fuel Tank ()

19

Hose, Water Drain ()

Hose, Water Drain ()

20

Clamp (l:95) ()

Clamp (l:95) ()

21

Hose, Breather ()

Hose, Breather ()

22

Shield, Tank Heat ()

Shield, Tank Heat ()

24-1

Sheet, Heat Rubber (without Abs)

Sheet, Heat Rubber (without Abs)

25

Cushion, Tank ()

Cushion, Tank ()

26

Molding, Tank ()

Molding, Tank ()
