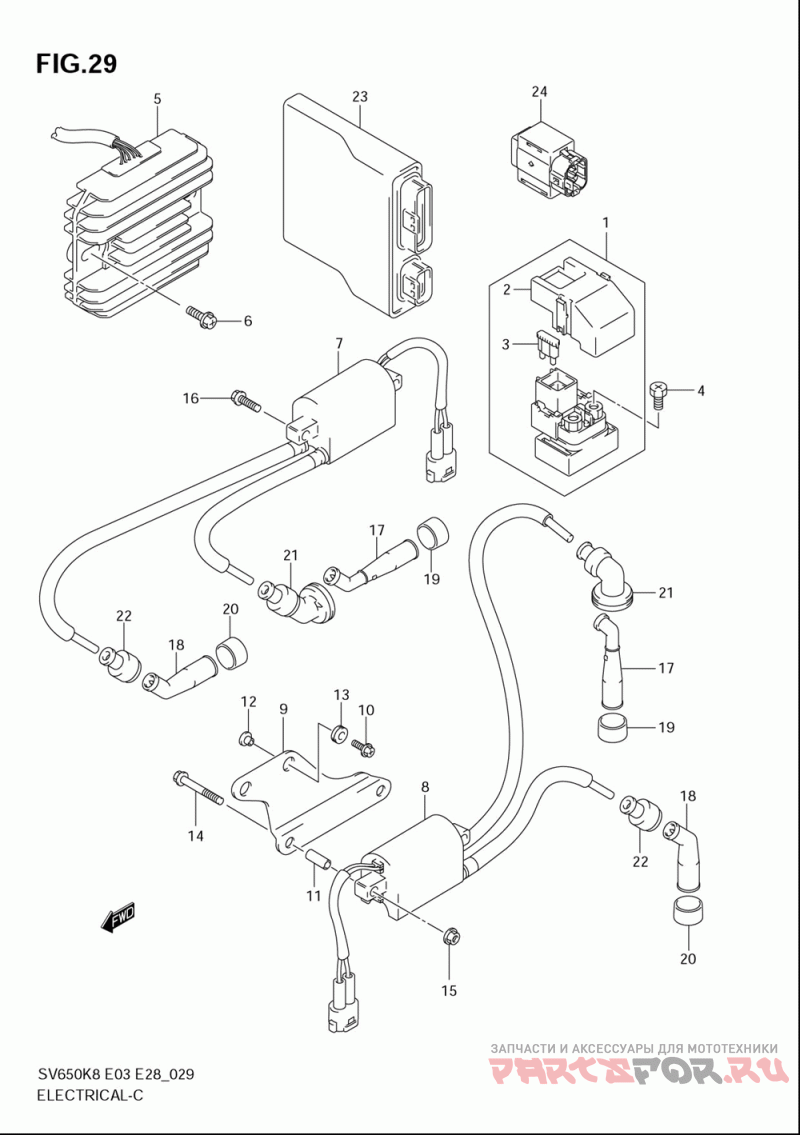

Электрика для мотоциклов Suzuki (Америка) SV650 (2008)

Москва и регионы России

Электрика

Suzuki (Америка) SV650

Электрика

#

oem код

название

цена

1

Relay Assy, Starting Motor ()

Relay Assy, Starting Motor ()

2

.cover ()

.cover ()

3

.fuse (30a) ()

.fuse (30a) ()

4

Bolt, Starting Motor (6x8) ()

Bolt, Starting Motor (6x8) ()

5

Rectifier Assy ()

Rectifier Assy ()

6

Screw ()

Screw ()

7

Coil Assy, Ignition (l:380) (for Front)

Coil Assy, Ignition (l:380) (for Front)

8

Coil Assy, Ignition (l:350) (for Rear)

Coil Assy, Ignition (l:350) (for Rear)

9

Bracket, Ign Coil Rear ()

Bracket, Ign Coil Rear ()

10

Bolt, Air Cleaner Front ()

Bolt, Air Cleaner Front ()

11

Spacer, Ign Coil Rear (6.4x10x18)

Spacer, Ign Coil Rear (6.4x10x18)

12

Spacer, Ign Coil Brkt (6.2x8.4x6.9)

Spacer, Ign Coil Brkt (6.2x8.4x6.9)

13

Cushion, Ign Coil Brkt ()

Cushion, Ign Coil Brkt ()

14

Болт

Болт

15

Гайка

Гайка

16

Bolt, Belt Cooling Duct ()

Bolt, Belt Cooling Duct ()

17

Cap Assy, Spark Plug (center) ()

Cap Assy, Spark Plug (center) ()

18

Cap Assy, Spark (side) ()

Cap Assy, Spark (side) ()

19

Seal, Spark Plug ()

Seal, Spark Plug ()

20

Seal, Spark Plug Cap (side) ()

Seal, Spark Plug Cap (side) ()

21

Seal, High Tensi ()

Seal, High Tensi ()

22

Seal, High Tension Cord ()

Seal, High Tension Cord ()

23-1

Control Unit, Fi (e3/e28)

Control Unit, Fi (e3/e28)

23-2

Control Unit, Fi (e33)

Control Unit, Fi (e33)

24

Sensor Assy, Fuel Cut ()

Sensor Assy, Fuel Cut ()
