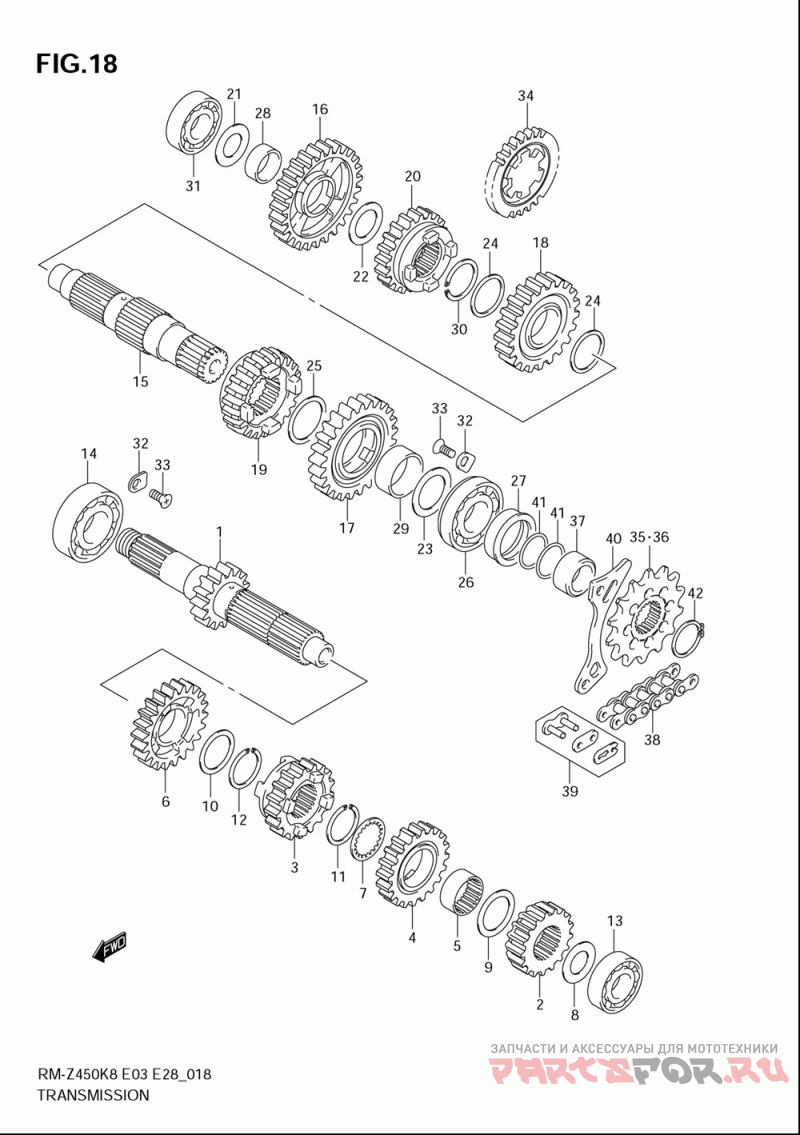

Трансмиссия

Suzuki (Америка) RM-Z450

Suzuki (Америка)
#oem кодцена
1
24120-28H00
Shaft, Counter
2
24221-28H00
Gear, 2nd Drive
3
24231-28H00
Gear, 3rd Drive
4
24241-28H00
Gear, 4th Drive
5
24242-37F00
Bush, 4th Drive Gear
6
24251-28H00
Gear, 5th Drive
7
09167-25026
Washer, 4th (25x31x1.0)
8
09181-17223
Washer, 1st Driven, Rh (17x30x1.0)
9
09181-25167
Washer, 5th Drive (25x34x1.0)
10
09181-25139
Washer, 1st Driven Gear, L (25x32x1.0)
11
09380-25010
Пружинное стопорное кольцо
13
08123-62030
Подшипник
14
08143-62057
Bearing, Cntr Rh
15
24131-28H00
Вал ведущий
16
24311-28H00
Gear, 1st Driven
17
24321-28H00
Gear, 2nd Driven
18
24331-28H00
Gear, 3rd Driven
19
24341-28H00
Gear, 4th Driven
20
24351-28H00
Gear, 5th Driven
22
09181-20195
Washer, 1st Driven (20x30x1.0)
23
09181-24005
Washer, 1st Driven Lh (24x34x1.0)
24
09181-25111
Shim, 25x30x1 (25x30x1.0)
25
09181-27015
Washer, 4th Driven Gear, R (27x33x1.0)
26
09262-24001
Bearing, Drive Shaft, L (24x56x14)
27
09289-31003
Seal, Oil, 31x4
28
09300-20037
Bush, 1st Driven Gear
29
09300-27005
Bush, 27x31x13
32
24741-20A00
Обойма подшипника
33
09126-06011
Screw, Drive Shaft (6x12) (6x12)
34
26260-35G00
Gear, Kick Starter Idle (nt:23)
35
27511-35G30
Sprocket, Engine
36
27511-35G20
Sprocket, Engine, Nt:14 (opt)
37
27531-35G01
Spacer, Engine Sprocket
38
27600-35G10-114
Chain Assy, Driv (did520mxv, 114l)
39
27620-35G10
Joint Set, Chain (opt)
40
27641-35G00
Plate, Front Chain Guide
41
09280-21010
O Ring, Sprocket Spacer (d:1.9,id:21.8)
42
08331-3124A
Пружинное стопорное кольцо
20
24351-28H01
Gear, 5th Driven
