Задний амортизатор для мотоциклов Suzuki (Америка) RM-Z250 (2008)

Москва и регионы России

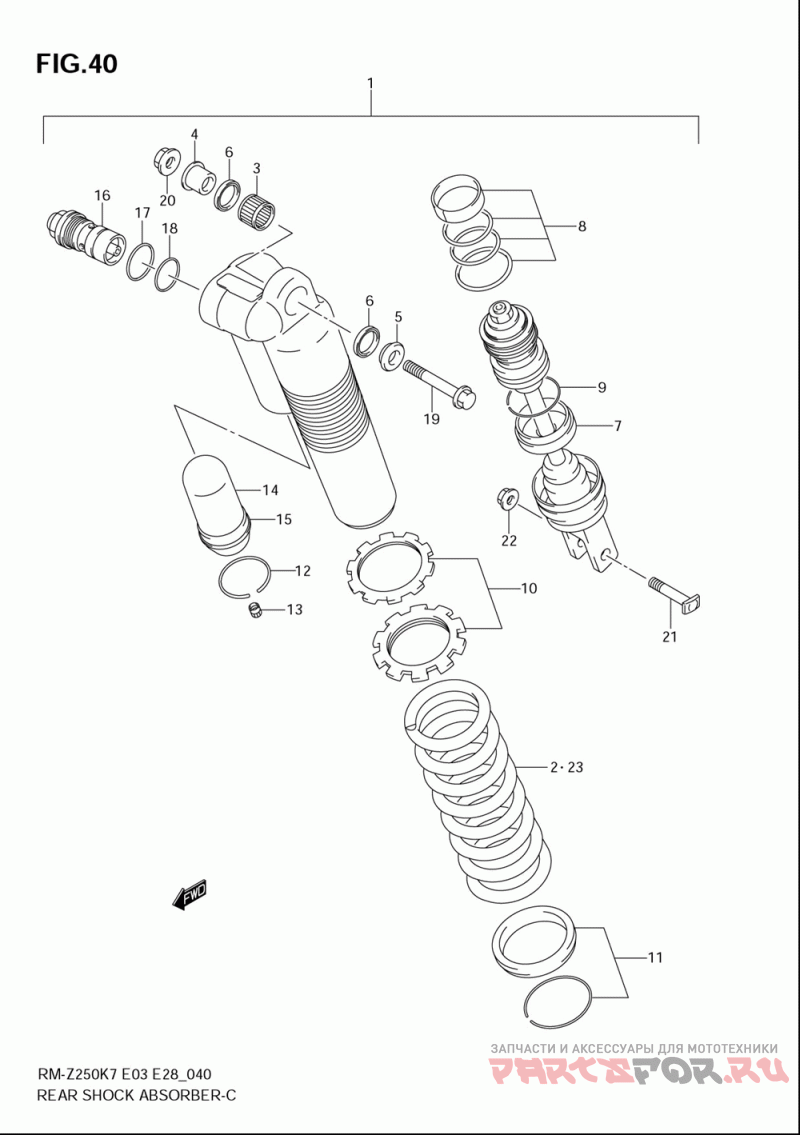

Задний амортизатор

Suzuki (Америка) RM-Z250

Задний амортизатор

#

oem код

название

цена

1-1

62100-10H20-YKS

Absorber Assy, Rr Shock (red) (model K7 E3)

Absorber Assy, Rr Shock (red) (model K7 E3)

1-3

62100-10H50-YKS

Absorber Assy, R (model K8 E3)

Absorber Assy, R (model K8 E3)

1-4

62100-10H40-YKS

Abs Assy, Rear S (model K8 E28)

Abs Assy, Rear S (model K8 E28)

2

Spring (k=5.4)

Spring (k=5.4)

3

.bearing (16x22x12)

.bearing (16x22x12)

4

.spacer, Bearing Rh

.spacer, Bearing Rh

5

.spacer, Bearing Lh

.spacer, Bearing Lh

6

Seal, Rear (16x22x2.5)

Seal, Rear (16x22x2.5)

7-1

Spring (model K7)

Spring (model K7)

7-2

Spring (model K8)

Spring (model K8)

8

.o Ring Set

.o Ring Set

9

Кольцо стопорное

Кольцо стопорное

10

.adjuster Set

.adjuster Set

11

.spring Seat Set

.spring Seat Set

12

Кольцо стопорное

Кольцо стопорное

13

Колпачек

Колпачек

14

.bladder

.bladder

15-2

Cap, Chamber (model K8)

Cap, Chamber (model K8)

16-1

Bolt (model K7)

Bolt (model K7)

16-2

Bolt (model K8)

Bolt (model K8)

17

.o Ring, Outer

.o Ring, Outer

18-1

.o Ring, Inner (model K7)

.o Ring, Inner (model K7)

18-2

.o Ring, Inner (model K8)

.o Ring, Inner (model K8)

19

Болт

Болт

20

Гайка

Гайка

21

Bolt, Lower

Bolt, Lower

22

Nut, Lower

Nut, Lower

23-1

Spring(k=5.0) (opt)

Spring(k=5.0) (opt)

23-2

Spring (k=5.2) (opt)

Spring (k=5.2) (opt)

23-3

Spring (hard, K=5.6) (opt)

Spring (hard, K=5.6) (opt)

23-4

.spring (k=5.7) (opt)

.spring (k=5.7) (opt)
