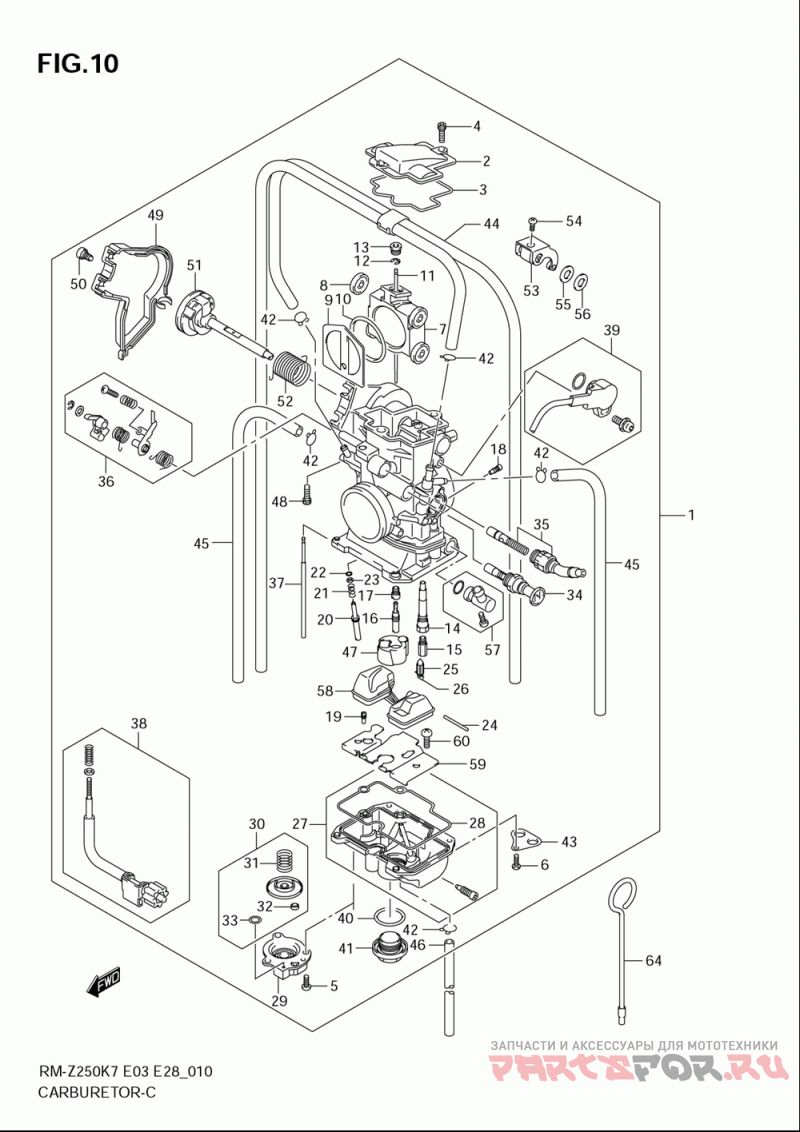

Карбюратор для мотоциклов Suzuki (Америка) RM-Z250 (2008)

Москва и регионы России

Карбюратор

Suzuki (Америка) RM-Z250

Карбюратор

#

oem код

название

цена

1-1

Carburetor Assy (model K7 E3)

Carburetor Assy (model K7 E3)

1-3

Carburetor Assy (model K8 E3)

Carburetor Assy (model K8 E3)

2

.top

.top

3

Кольцо

Кольцо

4

.bolt (4x12)

.bolt (4x12)

5

Винт

Винт

6

Винт

Винт

7

.throttle Valve

.throttle Valve

8

.bearing

.bearing

9

.floating Valve

.floating Valve

10

.lip Seal

.lip Seal

11-1

Needle, Jet (nlct) (model K7model K8 E3)

Needle, Jet (nlct) (model K7model K8 E3)

11-2

Needle, Jet (nldt) (model K8 E28)

Needle, Jet (nldt) (model K8 E28)

12

.bar Clip

.bar Clip

13

.screw Set, Jet Needle

.screw Set, Jet Needle

14

.main, Nozzle

.main, Nozzle

15-1

Jet, Main (162) (e3)

Jet, Main (162) (e3)

15-2

Jet, Main (170) (e28)

Jet, Main (170) (e28)

16-1

Jet, Pilot (45) (model K7)

Jet, Pilot (45) (model K7)

16-2

Jet, Pilot (42) (model K8)

Jet, Pilot (42) (model K8)

17

.jet, Starter

.jet, Starter

18

.jet, Slow Air

.jet, Slow Air

19-1

.jet, Acc (model K7model K8 E3)

.jet, Acc (model K7model K8 E3)

19-2

Jet, Power (45) (model K8 E28)

Jet, Power (45) (model K8 E28)

20-1

.screw, Adjust (1,1/2) (model K7model K8 E3)

.screw, Adjust (1,1/2) (model K7model K8 E3)

21

Пружина

Пружина

22

Кольцо

Кольцо

23

Шайба

Шайба

24

Палец

Палец

25

.valve, Float

.valve, Float

26

.clip

.clip

27

.float Chamber Body Set

.float Chamber Body Set

28

..o Ring

..o Ring

29

.cover

.cover

30

.diaphragm Set

.diaphragm Set

31

.u Ring

.u Ring

32

Пружина

Пружина

33

Кольцо

Кольцо

34

.starter Valve

.starter Valve

35

.starter Valve

.starter Valve

36

.lever Set, Pump

.lever Set, Pump

37

.rod

.rod

38

.screw Set

.screw Set

39

.sensor Set, Throttle

.sensor Set, Throttle

40

Кольцо

Кольцо

41

.bolt, Drain

.bolt, Drain

42

Зажим

Зажим

43

.binder

.binder

44

.pipe Set, Bowl Vent

.pipe Set, Bowl Vent

45

.pipe

.pipe

46

.pipe

.pipe

47

.plate, Buffer

.plate, Buffer

48

Винт

Винт

49

.cover

.cover

50

Болт

Болт

51

.throttle Shaft

.throttle Shaft

52

Пружина

Пружина

53

.link Arm

.link Arm

54

Винт

Винт

55

Шайба

Шайба

56

Шайба

Шайба

57

.joint Set

.joint Set

58

.float

.float

59

Plate, Buffer

Plate, Buffer

60

Винт

Винт

61-1

Jet, Main (150) (opt Not Shown)

Jet, Main (150) (opt Not Shown)

61-2

Jet, Main (152) (opt Not Shown)

Jet, Main (152) (opt Not Shown)

61-3

Jet, Main (155) (opt Not Shown)

Jet, Main (155) (opt Not Shown)

61-4

Jet, Main (158) (opt Not Shown)

Jet, Main (158) (opt Not Shown)

61-5

Jet, Main (160) (opt Not Shown)

Jet, Main (160) (opt Not Shown)

61-7

Jet, Main (165) (opt Not Shown)

Jet, Main (165) (opt Not Shown)

61-8

Jet, Main (168) (opt Not Shown)

Jet, Main (168) (opt Not Shown)

61-10

Jet, Main (172) (opt Not Shown)

Jet, Main (172) (opt Not Shown)

61-11

Jet, Main (175) (opt Not Shown)

Jet, Main (175) (opt Not Shown)

61-12

Jet, Main (178) (opt Not Shown)

Jet, Main (178) (opt Not Shown)

61-13

Jet, Main (180) (opt Not Shown)

Jet, Main (180) (opt Not Shown)

61-14

Jet, Main (185) (opt Not Shown)

Jet, Main (185) (opt Not Shown)

61-15

Jet, Main (190) (opt Not Shown)

Jet, Main (190) (opt Not Shown)

62-1

Jet, Pilot (35) (opt Not Shown)

Jet, Pilot (35) (opt Not Shown)

62-2

Jet, Pilot (40) (opt Not Shown)

Jet, Pilot (40) (opt Not Shown)

62-5

Jet, Pilot (48) (opt Not Shown)

Jet, Pilot (48) (opt Not Shown)

62-6

Jet, Pilot (50) (opt Not Shown)

Jet, Pilot (50) (opt Not Shown)

62-7

Jet, Pilot (52) (opt Not Shown)

Jet, Pilot (52) (opt Not Shown)

62-8

Jet, Pilot (55) (opt Not Shown)

Jet, Pilot (55) (opt Not Shown)

62-9

Jet, Pilot (58) (opt Not Shown)

Jet, Pilot (58) (opt Not Shown)

62-10

Jet, Pilot (60) (opt Not Shown)

Jet, Pilot (60) (opt Not Shown)

63-1

Needle, Jet (nlcr) (opt Not Shown)

Needle, Jet (nlcr) (opt Not Shown)

63-2

Needle, Jet (nldr) (opt Not Shown)

Needle, Jet (nldr) (opt Not Shown)

63-3

Needle, Jet (nlcs) (opt Not Shown)

Needle, Jet (nlcs) (opt Not Shown)

63-4

Needle, Jet (nlds) (opt Not Shown)

Needle, Jet (nlds) (opt Not Shown)

63-7

Needle, Jet (nlcu) (opt Not Shown)

Needle, Jet (nlcu) (opt Not Shown)

63-8

Needle, Jet (nldu) (opt Not Shown)

Needle, Jet (nldu) (opt Not Shown)

63-9

Needle, Jet (nlcv) (opt Not Shown)

Needle, Jet (nlcv) (opt Not Shown)

63-10

Needle, Jet (nldv) (opt Not Shown)

Needle, Jet (nldv) (opt Not Shown)

64

Holder, Jet Needle (opt)

Holder, Jet Needle (opt)
