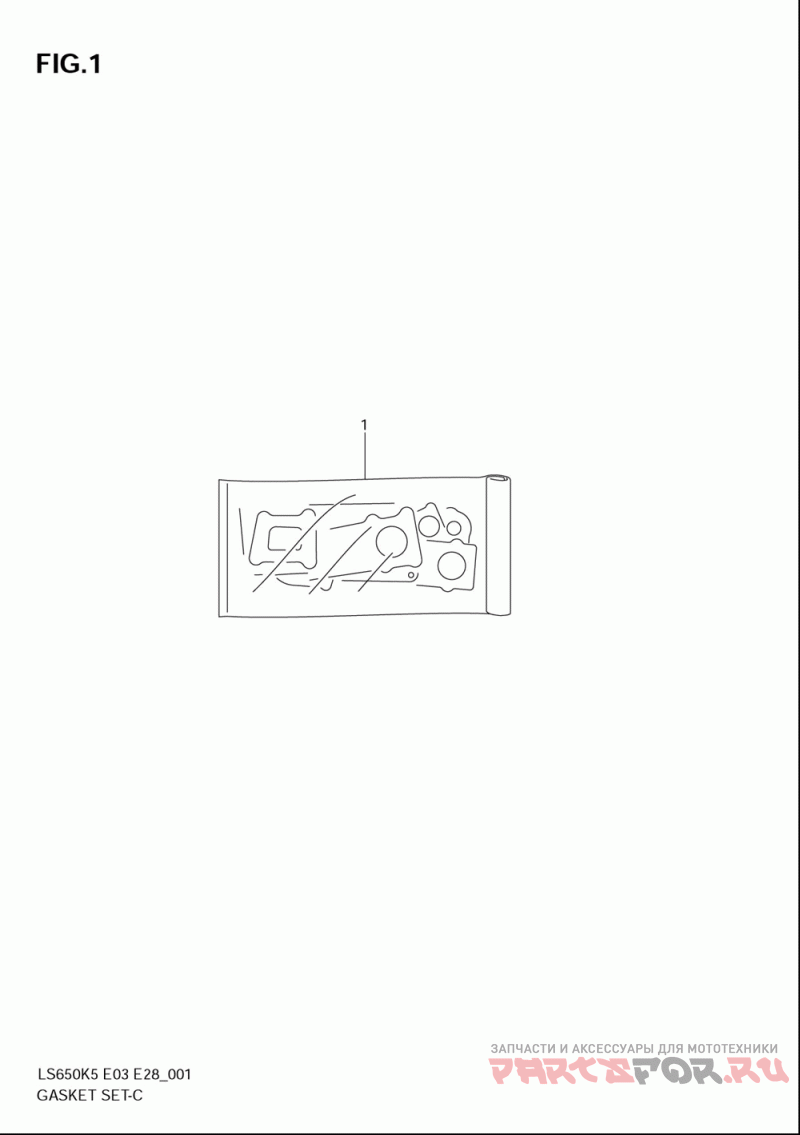

Набор прокладок

Suzuki (Америка) LS650 Boulevard S40

Suzuki (Америка)
#oem кодцена
1-1
11400-24858
Gasket Set (optmodel K5/k6)
1-2
11400-24880
Gasket Set (optmodel K7/k8)
2
11141-24B03
Gasket, Cylinder Head (not Shown)
3
11178-24B00
O Ring, Cylinder Head Cover (not Shown)
4
11241-24B01-H17
Gasket, Cylinder (not Shown)
5-1
11482-24B11
Gasket, Clutch Cover (not Shownmodel K5/k6)
5-2
11482-24B20
Gasket, Clutch Cover (not Shownmodel K7/k8)
6
11483-24B01-H17
Gasket, Generator Cover (not Shown)
7-1
11485-24B10
Gasket, Gear Shift Cover (not Shownmodel K5/k6)
7-2
11485-24B20
Gasket, Gear Shift Cover (not Shownmodel K7/k8)
8
14181-45C00
Gasket, Exhaust Pipe (not Shown)
9
09168-06023
Washer, Oil Gallery Exhaust (not Shown)
10
09168-10031
.gasket, Crankcase Bolt (not Shown)
11
09280-07004
O Ring (d:1.9, Id:6.8) (not Shown)
12
09280-09005
O Ring (not Shown)
13
09280-10013
O Ring, Protection Cover (not Shown)
14
09280-15007
O Ring (d:2.4 Id:15.8) (not Shown)
15
09280-17003
O Ring, Oil Filler Cap (not Shown)
16
09280-24010
O Ring (d:2.4, Id:23.7) (not Shown)
17
09280-33004
O Ring (id:32.7, Dd:3.1) (not Shown)
18
09280-46002
O Ring (d:2.4 Id:45.7) (not Shown)
19
09280-60004
O Ring (d:2.4, Id:23.0) (not Shown)
20
09280-72001
O Ring (d:2.4, Id:73) (not Shown)
