Крышки картера для мотоциклов Suzuki (Америка) LS650 Boulevard S40 (2008)

Москва и регионы России

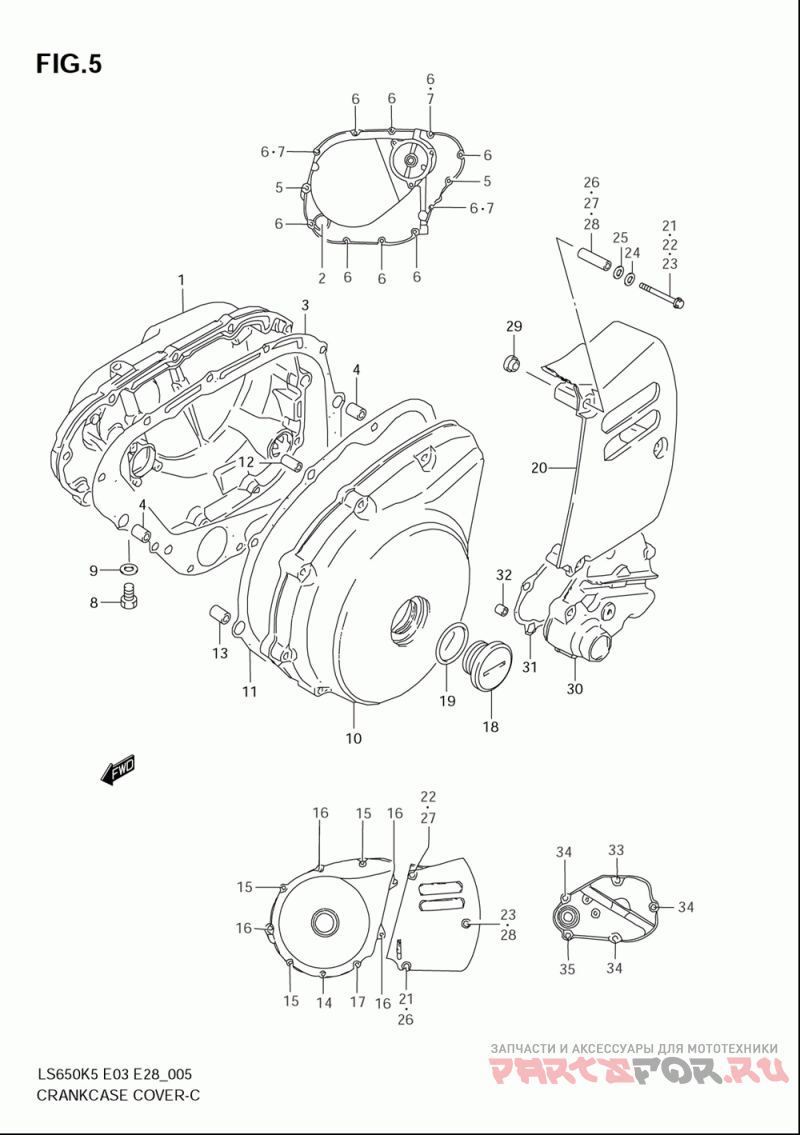

Крышки картера

Suzuki (Америка) LS650 Boulevard S40

Крышки картера

#

oem код

название

цена

1

Cover, Clutch ()

Cover, Clutch ()

2

.lens, Oil Level ()

.lens, Oil Level ()

3-1

Gasket, Clutch Cover (model K5/k6)

Gasket, Clutch Cover (model K5/k6)

3-2

Gasket, Clutch Cover (model K7/k8)

Gasket, Clutch Cover (model K7/k8)

4

Pin, Dowel ()

Pin, Dowel ()

5

Болт

Болт

6

Bolt (6x25) ()

Bolt (6x25) ()

7

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

8

Plug ()

Plug ()

9

Gasket, Oil Level Plug ()

Gasket, Oil Level Plug ()

10

Cover, Generator ()

Cover, Generator ()

11

11483-24B01-H17

Gasket, Generator Cover ()

Gasket, Generator Cover ()

12

Pin ()

Pin ()

13

Pin ()

Pin ()

16

Болт

Болт

17

Болт

Болт

18

Plug ()

Plug ()

19

O Ring (id:32.7, Dd:3.1) ()

O Ring (id:32.7, Dd:3.1) ()

20

Cover, Engine Sprocket ()

Cover, Engine Sprocket ()

23

Болт

Болт

24

Шайба

Шайба

25

Cushion, Outer ()

Cushion, Outer ()

26

Spacer ()

Spacer ()

27

Spacer (l:38.3) ()

Spacer (l:38.3) ()

28

Spacer ()

Spacer ()

29

Cushion ()

Cushion ()

30

Cover, Gear Shift ()

Cover, Gear Shift ()

31-1

Gasket, Gear Shift Cover (model K5/k6)

Gasket, Gear Shift Cover (model K5/k6)

31-2

Gasket, Gear Shift Cover (model K7/k8)

Gasket, Gear Shift Cover (model K7/k8)

32

Pin ()

Pin ()

33-1

Bolt (model K5/k6)

Bolt (model K5/k6)

33-2

Bolt, Rr Brake Pipe Clamp (model K7/k8)

Bolt, Rr Brake Pipe Clamp (model K7/k8)

34-1

Bolt (model K5/k6)

Bolt (model K5/k6)

34-2

Bolt, Magneto Cover (model K7/k8)

Bolt, Magneto Cover (model K7/k8)

35-1

Bolt, Water Pump (model K5/k6)

Bolt, Water Pump (model K5/k6)

35-2

Bolt, Crankcase (6x35) (model K7/k8)

Bolt, Crankcase (6x35) (model K7/k8)
