Головка цилиндра для мотоциклов Suzuki (Америка) LS650 Boulevard S40 (2008)

Москва и регионы России

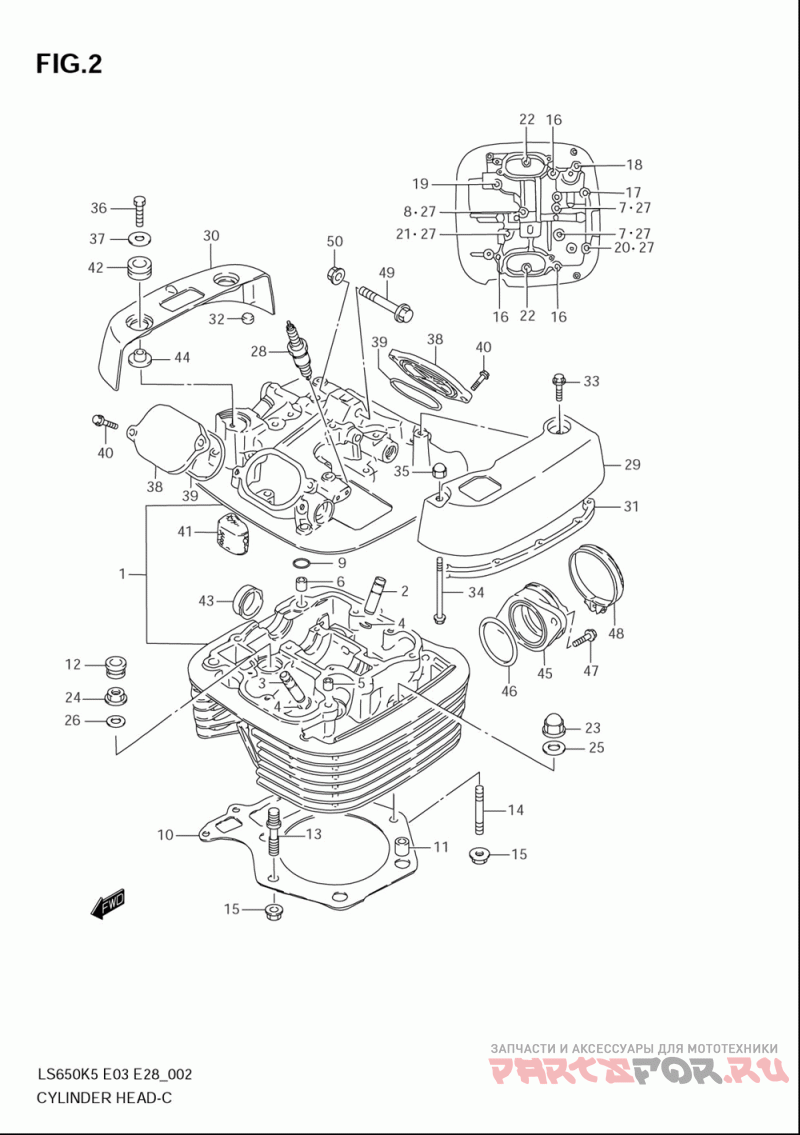

Головка цилиндра

Suzuki (Америка) LS650 Boulevard S40

Головка цилиндра

#

oem код

название

цена

1

Head Assy, Cylinder ()

Head Assy, Cylinder ()

2

.ring, Valve Guide ()

.ring, Valve Guide ()

3

Pin ()

Pin ()

4

Pin ()

Pin ()

5

Bolt (6x60) ()

Bolt (6x60) ()

6

Bolt (6x70) ()

Bolt (6x70) ()

7

Guide, Valve In (os:0.3) (opt)

Guide, Valve In (os:0.3) (opt)

8

Guide, Valve Ex (os:0.3) (opt)

Guide, Valve Ex (os:0.3) (opt)

9

O Ring, Cylinder Head Cover ()

O Ring, Cylinder Head Cover ()

10

Gasket, Cylinder Head ()

Gasket, Cylinder Head ()

11

Pin ()

Pin ()

12

Cap, Head Seal ()

Cap, Head Seal ()

13

Stud Bolt (m12/8) ()

Stud Bolt (m12/8) ()

14

Stud Bolt ()

Stud Bolt ()

15

Гайка

Гайка

16

.bolt (6x39) ()

.bolt (6x39) ()

17

.bolt (6x125) ()

.bolt (6x125) ()

18

Bolt (6x115) ()

Bolt (6x115) ()

20

Bolt (6x130) ()

Bolt (6x130) ()

21

.bolt (6x55) ()

.bolt (6x55) ()

22

Болт

Болт

23

Гайка

Гайка

24

Гайка

Гайка

25

.gasket, Crankcase Bolt ()

.gasket, Crankcase Bolt ()

27

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

28-1

Spark Plug (ngk, Dpr8ea-9) ()

Spark Plug (ngk, Dpr8ea-9) ()

28-2

Spark Plug (nd, X24epr-u9) ()

Spark Plug (nd, X24epr-u9) ()

28-3

Spark Plug, Dpr7ea-9 (ngk) (opt)

Spark Plug, Dpr7ea-9 (ngk) (opt)

29

Cap, Head Cover Lh ()

Cap, Head Cover Lh ()

30

Cap, Head Cover Rh ()

Cap, Head Cover Rh ()

31

Cushion, Head Cover Cap Lh ()

Cushion, Head Cover Cap Lh ()

32

Cushion, Head Cover Cap ()

Cushion, Head Cover Cap ()

33

Болт

Болт

35

Nut, Rect Ftg ()

Nut, Rect Ftg ()

36

Болт

Болт

37

Washer, Holder ()

Washer, Holder ()

38

Cap, Inspection ()

Cap, Inspection ()

39

O Ring (d:2.4, Id:23.0) ()

O Ring (d:2.4, Id:23.0) ()

40

Болт

Болт

41

Separator, Oil ()

Separator, Oil ()

42

Cushion, Head Cover Bolt ()

Cushion, Head Cover Bolt ()

43

Plug, Cylinder Head ()

Plug, Cylinder Head ()

44

Bush ()

Bush ()

45

Pipe, Intake ()

Pipe, Intake ()

46

O Ring (d:2.4 Id:45.7) ()

O Ring (d:2.4 Id:45.7) ()

47

Screw ()

Screw ()

48

Clamp, Intake Pipe ()

Clamp, Intake Pipe ()

49

Bolt, 8x55 ()

Bolt, 8x55 ()

50

Гайка

Гайка
