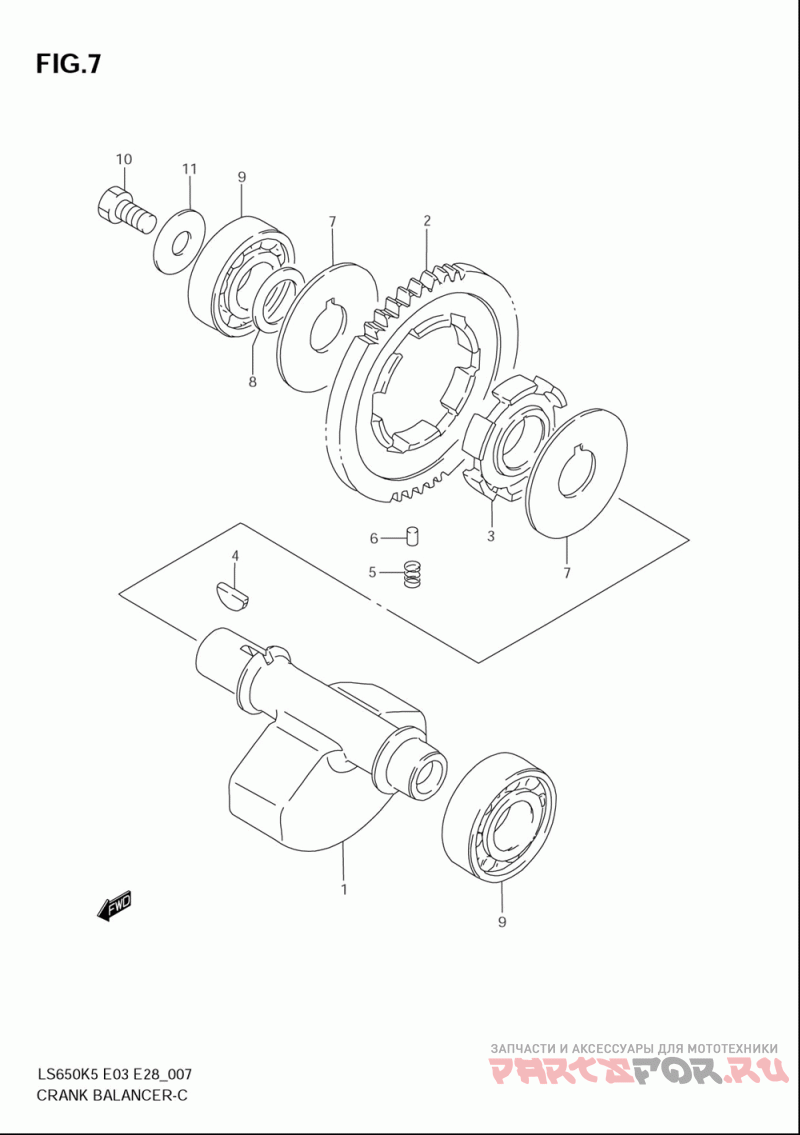

Балансир кривошипа
Suzuki (Америка) LS650 Boulevard S40
| # | oem код | название | цена |
|---|---|---|---|
1 | 12651-24B01 Balancer, Crank () | Balancer, Crank () | |
2 | 12666-24B01 Gear, Balancer Driven () | Gear, Balancer Driven () | |
3 | 12669-24B01 Race, Inner () | Race, Inner () | |
4 | 09420-04008 Key () | Key () | |
5 | 09440-09031 Spring () | Spring () | |
6 | 09202-04017 Pin (d:4.5, L:9.5) () | Pin (d:4.5, L:9.5) () | |
7 | 09166-20010 Washer (20x54x2) () | Washer (20x54x2) () | |
8 | 09181-20158 Шайба | Шайба | |
9 | 09262-20089 Bearing (20x47x14) () | Bearing (20x47x14) () | |
10 | 01500-1016B Болт | Болт | |
11 | 08211-10285 Washer, Starter Clutch No.2 () | Washer, Starter Clutch No.2 () |
