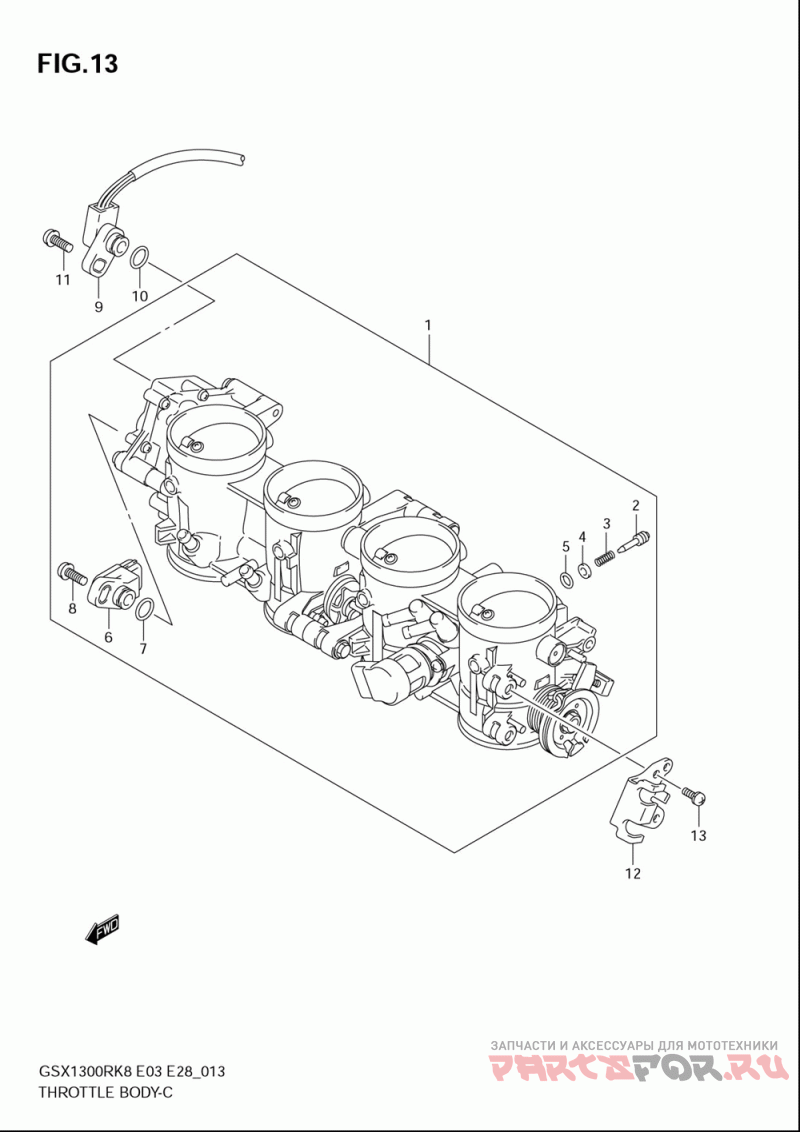

Корпус Дросселя
Suzuki (Америка) GSX1300R Hayabusa
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 13406-15H00 Throttle Body (e3, E28) | Throttle Body (e3, E28) | |
1-2 | 13406-15H10 Throttle Body(e (e33) | Throttle Body(e (e33) | |
2 | 13269-18G00 Adjust Screw () | Adjust Screw () | |
3 | 13271-43E00 Spring () | Spring () | |
4 | 13291-26E00 Шайба | Шайба | |
5 | 13295-26E00 O Ring () | O Ring () | |
6 | 13580-18G00 .sensor Assy, Main () | .sensor Assy, Main () | |
7 | 13575-40F00 .o Ring () | .o Ring () | |
8 | 13605-40F00 Винт | Винт | |
9 | 13580-40F30 Sensor Assy, Throttle Sub () | Sensor Assy, Throttle Sub () | |
13 | 13601-21H00 Screw () | Screw () |
