Rear swingingarm для мотоциклов Suzuki (Америка) GSX1300BK B-KING (2008)

Москва и регионы России

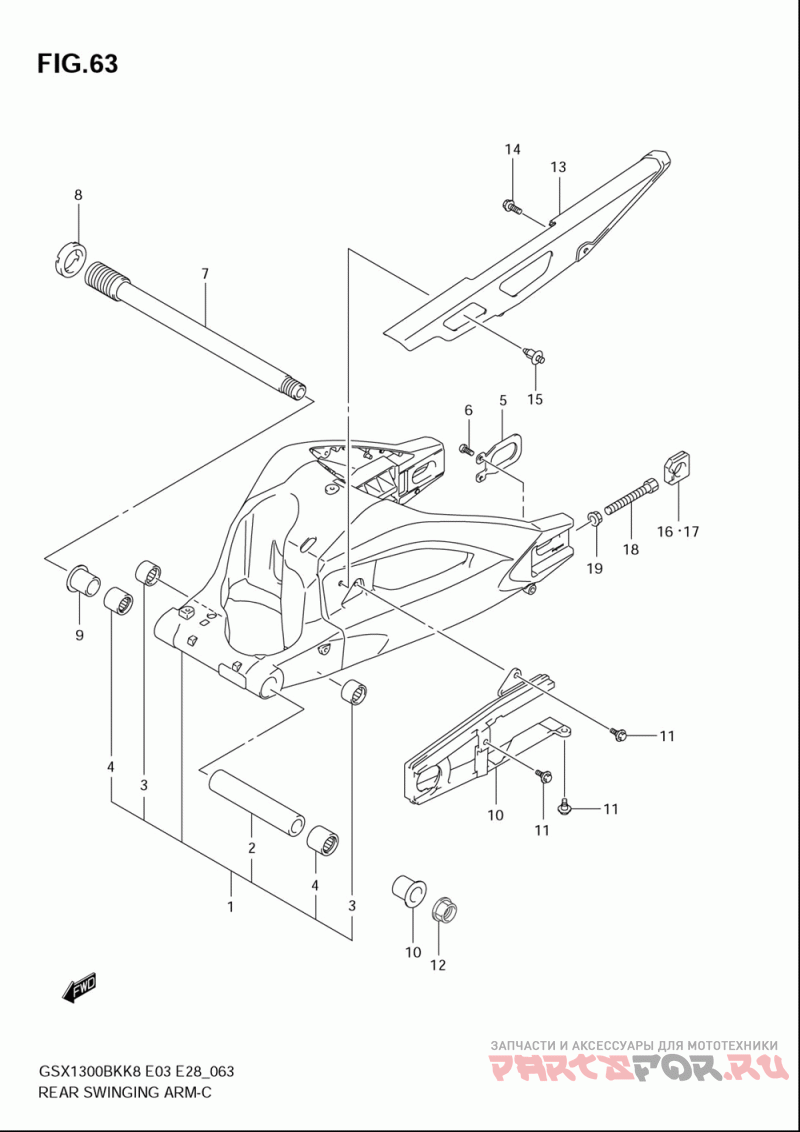

Rear swingingarm

Suzuki (Америка) GSX1300BK B-KING

Rear swingingarm

#

oem код

название

цена

1-1

61000-23H00-YD8

Swingingarm Ass (gsx1300bkk8for Ett)

Swingingarm Ass (gsx1300bkk8for Ett)

1-2

61000-23H00-YAP

Swingingarm Ass (gsx1300bkk8for Cru)

Swingingarm Ass (gsx1300bkk8for Cru)

2

Spacer, Rr Swg P ()

Spacer, Rr Swg P ()

3

.bearing, Center (17x24x25) ()

.bearing, Center (17x24x25) ()

4

.bearing, Pivot ()

.bearing, Pivot ()

5

Plate, Bracket ()

Plate, Bracket ()

6

09125-06073-A05

Винт

Винт

7

Shaft, Rr Swgarm ()

Shaft, Rr Swgarm ()

8

Nut, Rr Swgarm P ()

Nut, Rr Swgarm P ()

9

Spacer, Bearing ()

Spacer, Bearing ()

10

Buffer, Chain To ()

Buffer, Chain To ()

11

Screw, Chain Buffer ()

Screw, Chain Buffer ()

12

Гайка

Гайка

13

Case, Chain ()

Case, Chain ()

14

Болт

Болт

15

09409-08308-5ES

Clip (black) ()

Clip (black) ()

16

Adjuster,chain, ()

Adjuster,chain, ()

17

Adjuster,chain, ()

Adjuster,chain, ()

18

Bolt (8x50) ()

Bolt (8x50) ()

19

Nut, Idle Gear Shaft ()

Nut, Idle Gear Shaft ()
