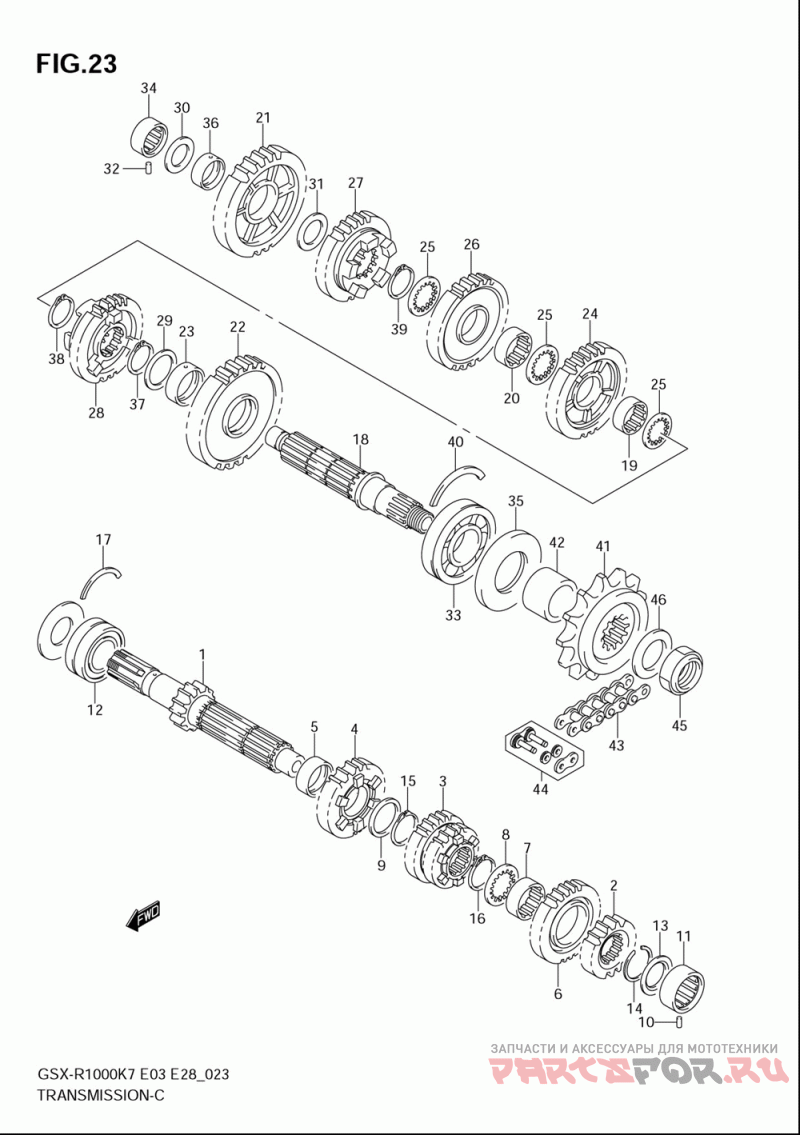

Трансмиссия

Suzuki (Америка) GSX-R1000

Suzuki (Америка)
#oem кодцена
1
24120-40F21
Shaft, Cntr ()
2
24221-40F30
Gear, 2nd Drive ()
3
24231-40F30
Gear, 3rd & 4th (nt:21/24)
4
24251-40F30
Gear, 5th Drive ()
5
24252-35F00
Bush, 5th Drive Gear ()
6
24261-40F20
Gear, 6th Drive (nt:26) ()
7
24262-35F00
Bush, 6th Drive ()
8
09167-27003
Washer, 6th Drive ()
9
09181-27014
Washer, 5th Drive (27x36x2.5)
10
09261-06003
Pin, Drive Shaft, R ()
11
09263-20087
Bearing, Drive Shaft, R (20x34x13.5)
12
09267-25013
Bearing, Cntr Shaft, R ()
13
09285-20006
Seal, Oil ()
14
09380-27004
Circlip, 2nd Drive ()
15
09380-27006
Circlip, 5th & 6th Drive ()
17
09390-58001
C-ring, Cntr Shaft Brg, R ()
18
24131-40F00
Shaft, Drive ()
19
24262-17E01
Bush, 4th Driven Gear ()
21
24311-40F20
Gear, 1st Driven (nt:41) ()
22
24321-40F30
Gear, 2nd Driven ()
23
24322-02F01
Bush, 2nd Driven ()
24
24331-40F30
Gear, 3rd Driven ()
25
24333-02F00
Washer, 3rd Driven Gear ()
26
24341-40F20
Gear, 4th Driven (nt:36) ()
27
24351-40F30
Gear, 5th Driven ()
28
24361-40F20
Gear, 6th Driven (nt:33) ()
29
09160-27008
Washer, 2nd Driven Gear (27x36x1.0)
30
09181-20251
Shim (t:1.0) (20x34x1.0)
31
09181-22223
Washer, 1st Driven Lh (22x34x1)
33
09262-28025
Bearing, Drive Shaft, L (28x70x18)
35
09283-36008
Seal, Drive Shaft Oil (34.8x70x6)
36
24312-02F00
Bush, 1st Driven ()
40
09390-70001
C-ring, Drive Shaft Brg, L ()
41
27510-21A31
Sprocket, Engine (nt:17) ()
42
27531-40F00
Spacer, Engine Sprocket (25x36x18.6)
43
27600-40F10-112
Chain Assy, Driv ()
44
27620-40F10
Joint Set, Drive Chain (opt)
45
09159-20004
Nut, Engine Sprocket ()
46
09160-25035
Shim (25x36x1.4) (25x40x1.4)
