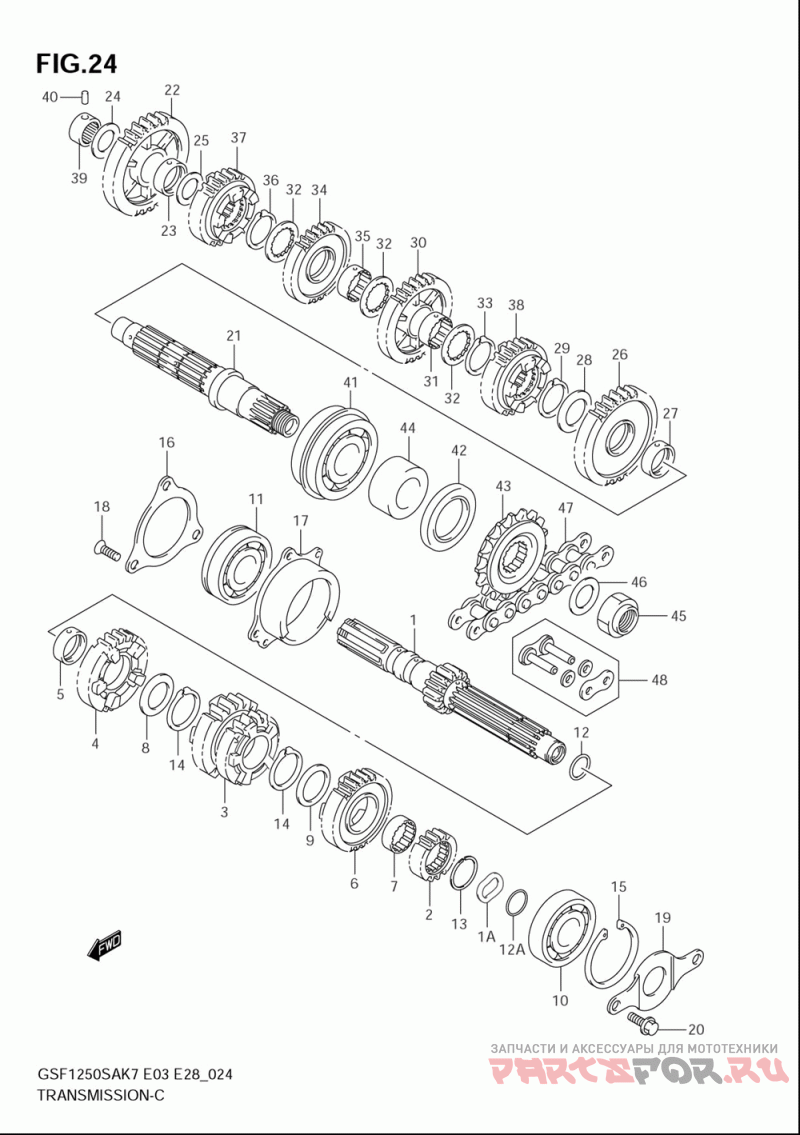

Трансмиссия

Suzuki (Америка) GSF1250S Bandit

Suzuki (Америка)
#oem кодцена
1
24120-18H00
Shaft, Cntr , Nt: ()
1A
24127-18H00
Washer, Counter ()
2
24221-18H00
Gear,2nd Drive, ()
3
24231-18H00
Gear, 3rd & 4th (nt:20/23)
4
24251-18H00
Gear, 5th Drive ()
5
24252-35F00
Bush, 5th Drive Gear ()
6
24261-18H00
Gear, 6th Drive ()
7
24262-35F00
Bush, 6th Drive ()
8
09160-27008
Washer, 2nd Driven Gear (27x36x1.0)
9
09167-27001
Washer, 6th Drive ()
10
09262-20080
Bearing, Cntr, L (20x52x15)
11
09262-25073
Bearing (25x62x17) (25x62x17)
12
09280-17004
O Ring, Center Shaft (d:1.9,id:16.6)
12A
09280-20001
O Ring, Cntr Shaft (d:1.0,id:19.5)
13
09380-27004
Circlip, 2nd Drive ()
14
09380-27006
Circlip, 5th & 6th Drive ()
15
08331-4152A
Circlip ()
16
24751-18H00
Retainer, Cntr S ()
17
24771-18H00
Housing, Cntr Sh ()
18
09139-06159
Screw, Housing (6x20) ()
19
24741-18H00
Retainer, Cl Pus ()
20
09103-06236
Screw, Push (6x12) ()
21
24131-18H10
Shaft, Drive ()
22
24311-18H00
Gear, 1st Driven ()
23
24312-02F00
Bush, 1st Driven ()
24
09181-20251
Shim (t:1.0) (20x34x1.0)
25
09181-22223
Washer, 1st Driven Lh (22x34x1.0)
26
24321-18H00
Gear, 2nd Driven ()
27
24322-02F01
Bush, 2nd Driven ()
30
24331-18H00
Gear, 3rd Driven ()
31
24262-17E01
Bush, 4th Driven Gear ()
32
24333-02F00
Washer, 3rd Driven Gear ()
34
24341-18H00
Gear, 4th Driven ()
37
24351-18H00
Gear, 5th Driven ()
38
24361-18H00
Gear, 6th Driven ()
39
09263-20087
Bearing, Drive Shaft, R (20x34x3.5)
40
09261-06003
Pin, Drive Shaft, R ()
41
09267-30011
Bearing, Drive Shaft Lh (30x62x23.8)
42
09283-42018
Seal, Drive Shaf ()
43
27510-21A40
Sprocket, Engine ()
44
27531-18H00
Spacer, Engine S ()
45
09159-20004
Nut, Engine Sprocket ()
46
09160-25035
Shim (25x36x1.4) ()
47
27600-24F20-120
Chain Assy (rk50gsvz3m, 120le) (l:120->118)
48
27620-24F20
Joint Set, Chain (opt)
