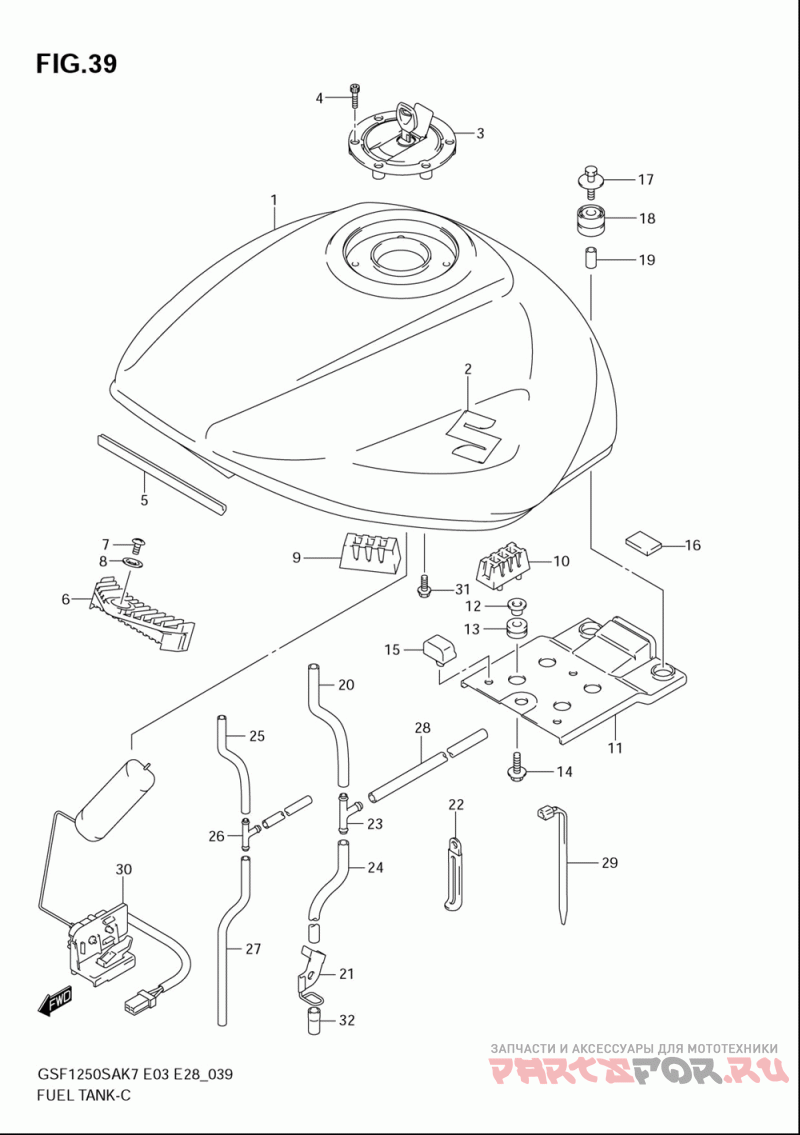

Топливный бак

Suzuki (Америка) GSF1250S Bandit

Suzuki (Америка)
#oem кодцена
1-1
44100-18H00-YAY
Tank Assy, Fuel (e3, E28)
1-2
44100-18H00-YHL
Tank Assy, Fuel (e3, E28)
1-3
44100-18H00-YLE
Tank Assy, Fuel (model K7 E3, E28)
1-4
44100-18H00-YBA
Tank Assy, Fuel( (model K8 E3, E28)
1-5
44100-18H00-YHG
Tank Assy, Fuel (model K8 E3, E28)
1-6
44100-18H20-YAY
Tank Assembly, F (e33)
1-7
44100-18H20-YHL
Tank Assembly, F (e33)
1-8
44100-18H20-YLE
Tank Assy, Fuel (model K7 E33)
2
68111-18G20
Emblem ()
3-1
44200-16850
Cap Set, Fuel Tank (e3,e28)
3-2
44200-16870
Cap Set, Fuel Tank (e33)
4
09106-05017
Болт
5
68241-04X50-300
Molding, Cover ()
6
44511-27E00
Cushion, Front ()
7
02142-0510B
Screw ()
8
09169-05012
Шайба
9
45149-45330
.cushion ()
10
44541-31F00
Cushion, Fuel Tank Side ()
11
44141-38G00
Bracket, Fuel Ta ()
12
09169-06062
Шайба
13
09320-08001
Cushion ()
14
09116-06192
Bolt (6x20) ()
15
45149-21G00
Cushion ()
16
47163-10FA0
Cushion ()
17
09116-06172
Болт
18
44541-38G00
Cushion, Fuel Ta ()
19
09180-06271
Spacer ()
20
44423-16G10
Hose, Water Drain ()
21
44480-18H00
Guide Comp, Drai ()
22
09404-10417
Clamp ()
23
09367-08004
3 Way, Drain Hose ()
24
09352-70103-600
Cushion, R/con Cable Stopper ()
25
44425-09E00
Hose, Vacuum ()
26
09367-06002
3 Way, Water Hose ()
27
09352-50823-600
Hose ()
28
09352-50823-00B
Hose ()
29
09407-14403
.clamp, Battery Cable ()
30
34810-18H00
Gauge Assy, Fuel ()
31
01500-0612A
Болт
32
09352-13162-600
Hose, 13.5x16.5x (model K8)
