Прокладки

Suzuki (Америка) GS500F

Suzuki (Америка)
#oem кодцена

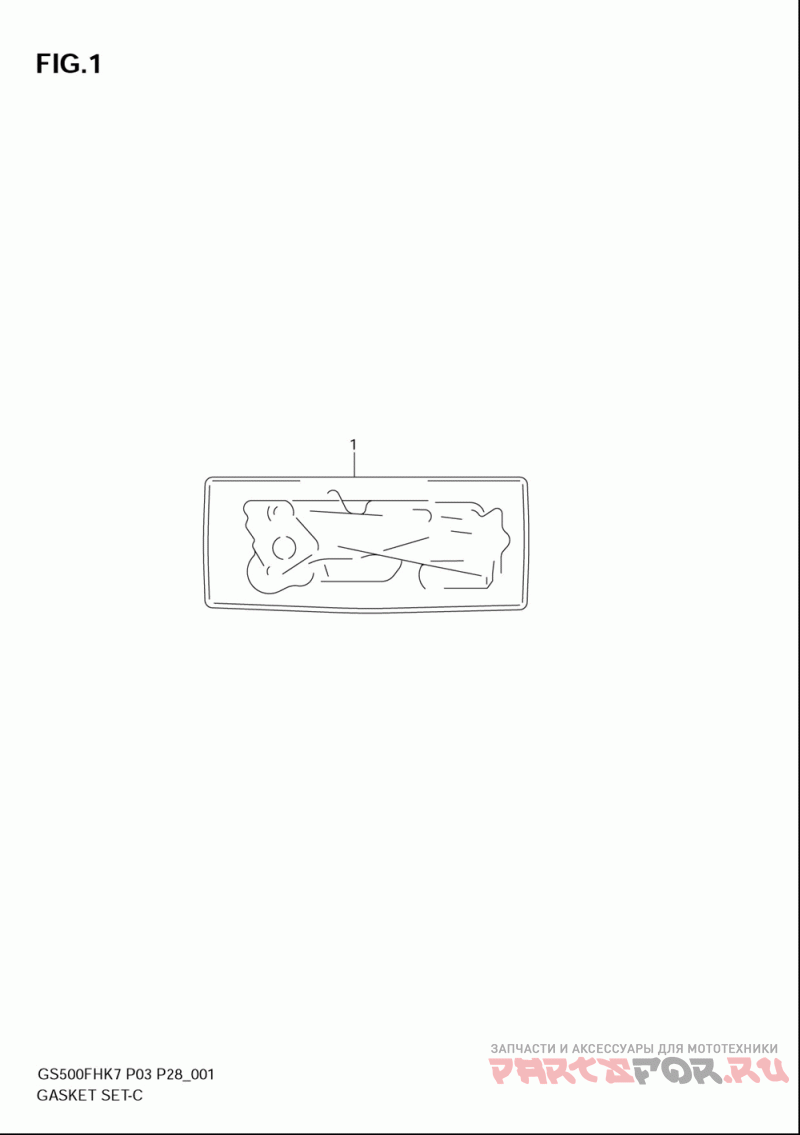

1-1
11400-01864
Gasket Set (gs500hopt)
1-2
11400-01882
Gasket Set (gs500fopt)
2
11141-01D11
Gasket, Cylinder (not Shown)
3
11143-06B00
O Ring, Cylinder Head (not Shown)
4
11173-01D00
Gasket, Cyl Head (not Shown)
5
11177-15510-H17
Gasket, Breather Cover (not Shown)
6
11241-01D00
Gasket, Cylinder (not Shown)
7
11482-44110
Gasket, Clutch Cover (not Shown)
8
11483-44110
Gasket, Generator Cover (not Shown)
9-1
11489-44110
Gasket, Oil Pan (not Showngs500h)
9-2
11489-01D00
Gasket, Oil Pan (not Showngs500f)
10
12837-24A10
Gasket, Tensioner Adjuster (not Shown)
11
14181-01D00
Gasket, Exhaust Pipe (not Shown)
12
16518-45000
O Ring (not Shown)
13
09168-06023
Washer, Oil Gallery Exhaust (not Shown)
14
09168-08016
Gasket (8.2x14x1.0) (not Shown)
15
09168-10031
.gasket, Crankcase Bolt (not Shown)
16
09168-14004
.gasket (14.1x18x1.5) (not Shown)
17
09280-03003
.o Ring (d:1.1, Id:3.1) (not Shown)
18
09280-13004
O Ring (d:1.9 Id:13) (not Shown)
19
09280-15006
O Ring (d:1.9, Id:14.5) (not Shown)
20
09280-26006
O Ring (d:3.1, Id:26.4) (not Shown)
21
09280-40010
.o Ring, Intake Pipe (not Shown)
1-2
11400-01883
Gasket Set (gs500fopt)
