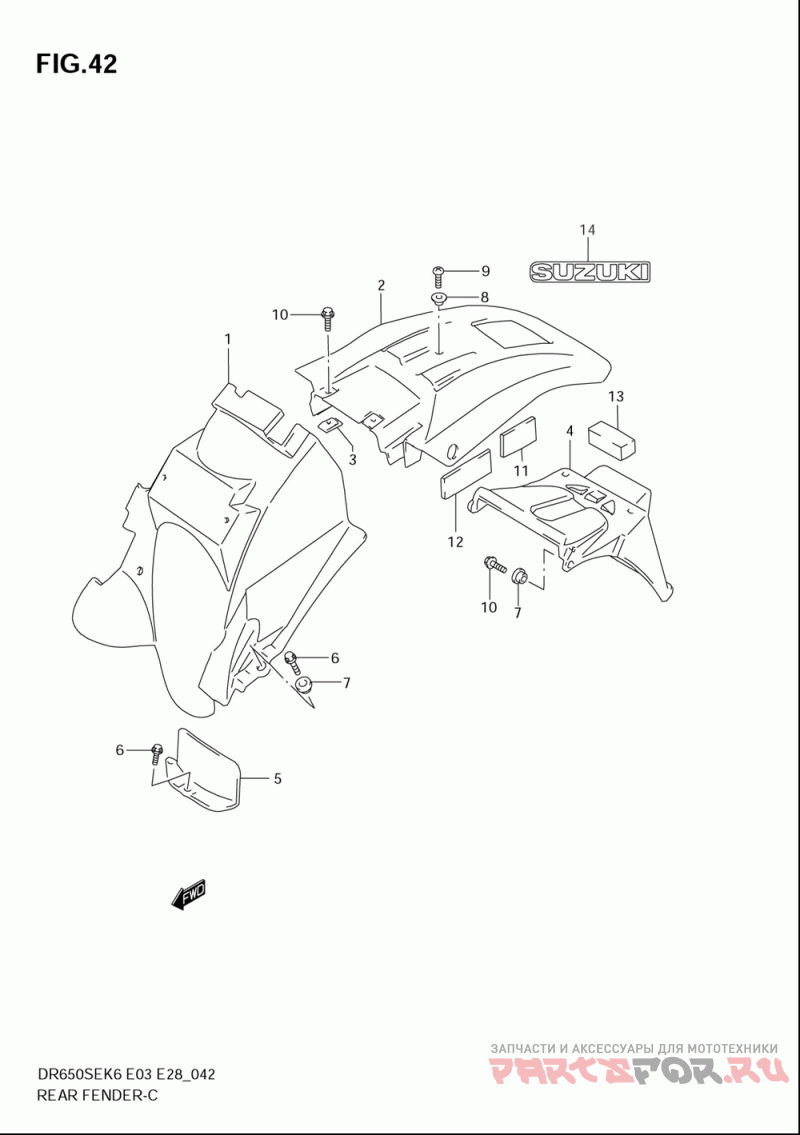

Заднее крыло

Suzuki (Америка) DR650SE

Suzuki (Америка)
#oem кодцена
1
63112-32E00
Body, Rear Fender Front ()
2-1
63113-32E10-YJ4
Body, Rear Fender (blue) (model K6 For N9j)
2-2
63113-32E10-YU1
Body, Rear Fender (yellow) (model K6 For Yu1)
2-3
63113-32E30-YLW
Body, Rear Fend( (model K7 For N9jmodel K8 For Yky)
2-4
63113-32E30-019
Body, Rear Fender (black) (model K7/k8 For 019)
3
47153-19C01
Nut, Fender Rear ()
4
63311-32E00
Extension, Rear Fender ()
5
63411-32E00
Mud Guard, Rear Fender ()
6
09113-06001
Винт
7
09169-06073
Шайба
8
09169-06053
Washer, Ca Holder (6.3x16x1) ()
9
09139-06067
Screw (6x16) ()
10
01550-0616B
Болт
11
63191-25C00
Cushion ()
12
63118-32E00
Cushion, Rear Fender ()
13
94475-21E00
Cushion, Side Rh ()
14-1
68177-04A00-HU8
Emblem (model K6 For N9j)
14-2
68177-04A00-CFL
Emblem (model K6 For Yu1)
14-3
68177-04A00-DVJ
Emblem (model K7 For N9j)
14-4
68177-04A00-60K
Emblem (model K7 For 019)
14-5
68177-04A00-CT5
Emblem (model K8 For 019)
14-6
68177-04A00-ELC
Emblem, "suzuki" (model K8 For Yky)
