Рукоятка газа и тормоза для мотоциклов Suzuki (Америка) DR650SE (2008)

Москва и регионы России

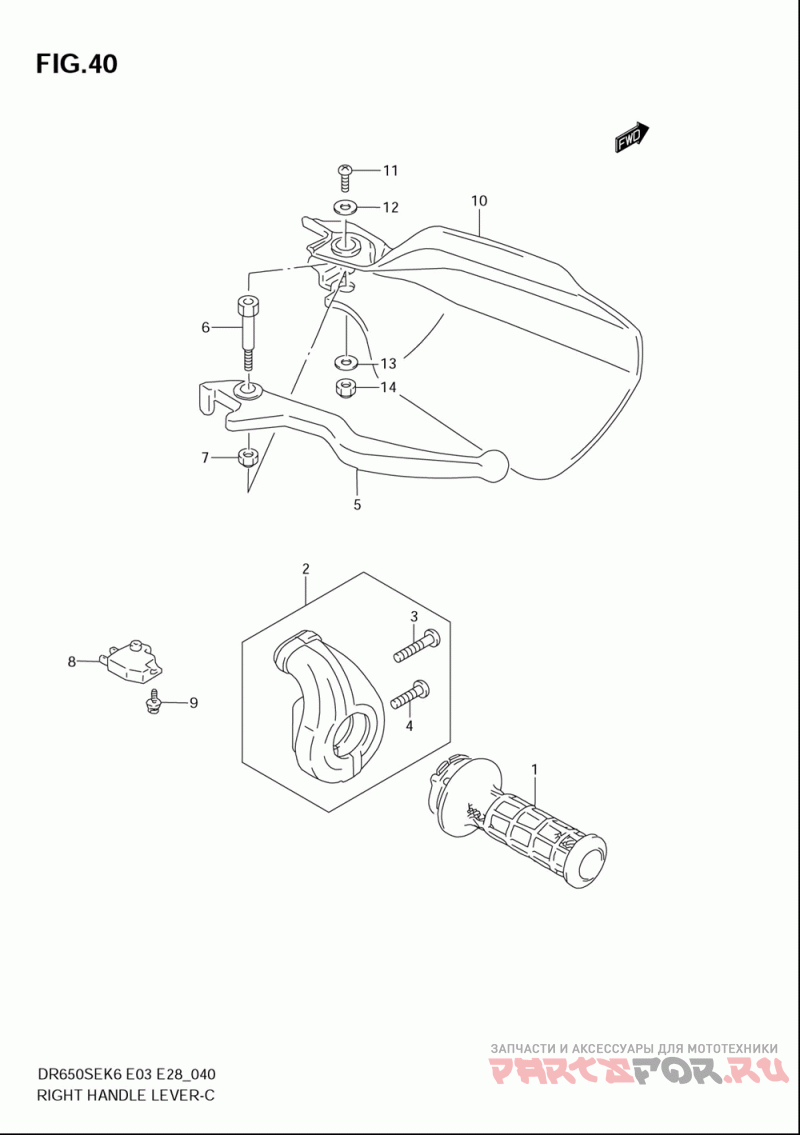

Рукоятка газа и тормоза

Suzuki (Америка) DR650SE

Рукоятка газа и тормоза

#

oem код

название

цена

1

Grip, Throttle ()

Grip, Throttle ()

2

Case Assy, Throttle ()

Case Assy, Throttle ()

3

Винт

Винт

4

Screw ()

Screw ()

5

Lever ()

Lever ()

6

Bolt, Brake Lever Pivot ()

Bolt, Brake Lever Pivot ()

7

Nut, Pivot ()

Nut, Pivot ()

8

.switch Assy, Lock ()

.switch Assy, Lock ()

9

Винт

Винт

10-1

57341-05D00-YU1

Cover, Knuckle Rh (yellow) (model K6 For Yu1)

Cover, Knuckle Rh (yellow) (model K6 For Yu1)

10-2

57341-05D00-YJ4

Cover, Knuckle Rh (blue) (model K6 For N9j)

Cover, Knuckle Rh (blue) (model K6 For N9j)

10-3

57341-05D10-019

Cover, Knuckle Rh (black) (model K7/k8 For 019)

Cover, Knuckle Rh (black) (model K7/k8 For 019)

10-4

57341-05D10-YLW

Cover, Knuckle Rh (blue) (model K7 For N9jmodel K8 For Yky)

Cover, Knuckle Rh (blue) (model K7 For N9jmodel K8 For Yky)

11

Screw ()

Screw ()

12

.washer, 5.5x16x1.20 ()

.washer, 5.5x16x1.20 ()

13

Шайба

Шайба

14

Гайка

Гайка
